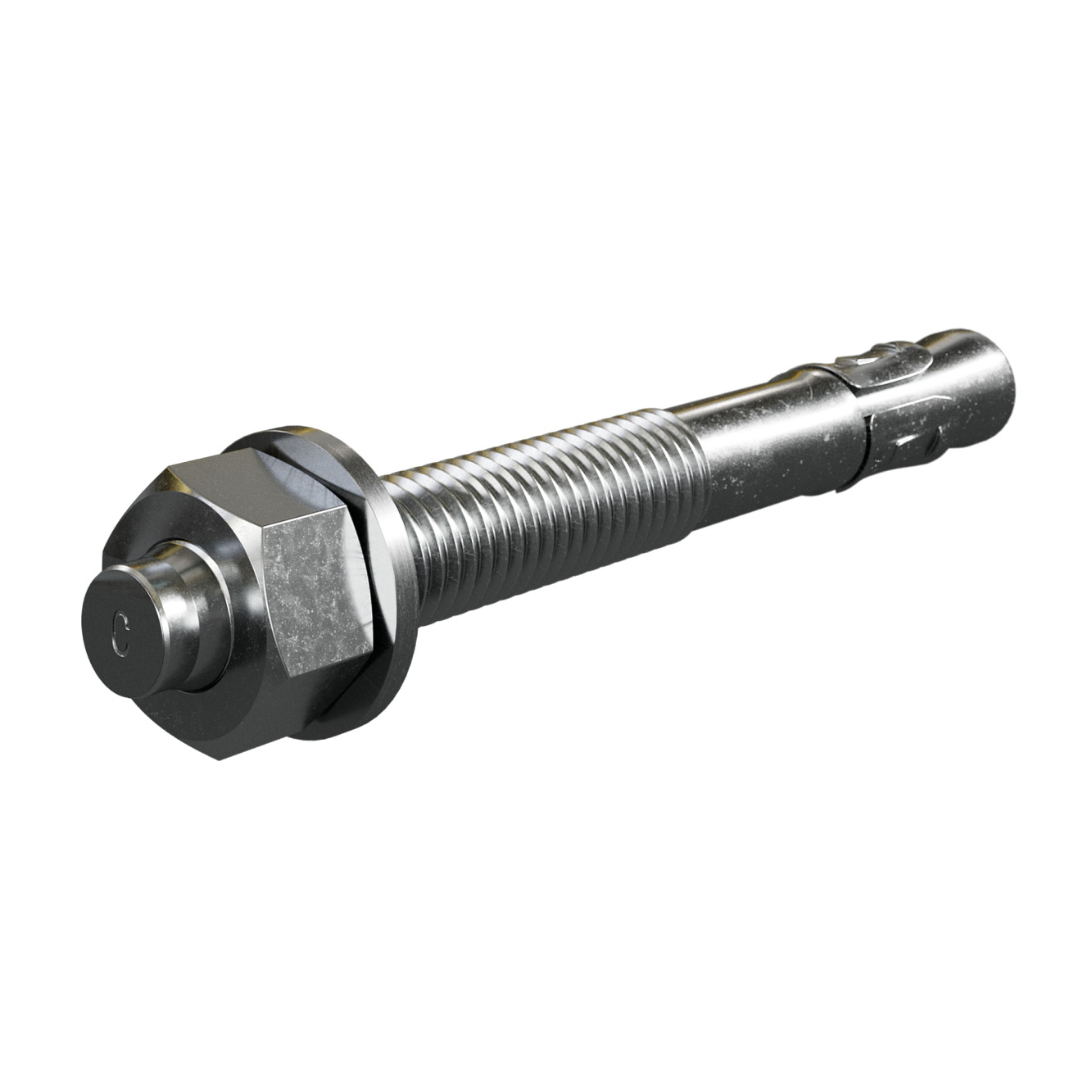

FM 753 evo

Doorsteekanker optie 7

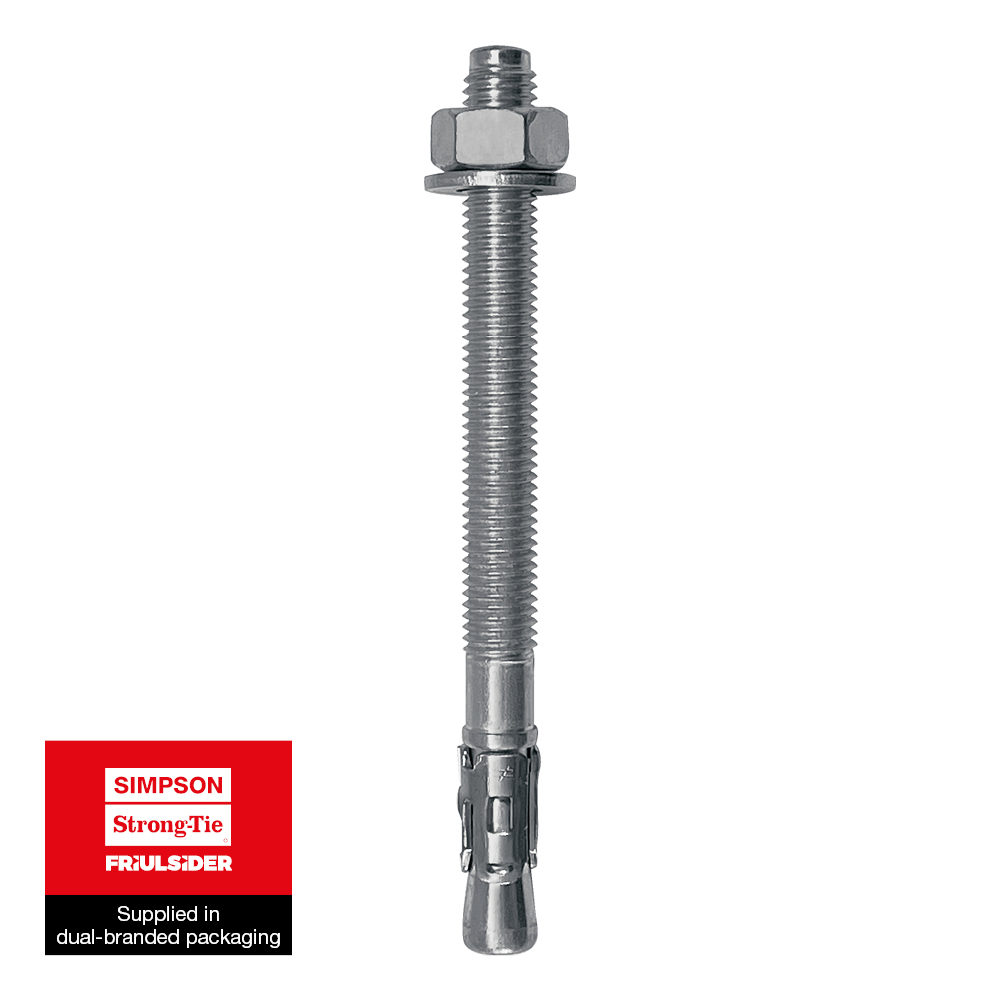

Doorsteekankers FM 753 zijn uitzettingsbevestigingen voor betonnen ondergronden.

Technisch gegevensblad

CE-Markering

ETA

Binner

Elektrolytisch verzinkt staal

Gebruiksklasse 2

Fix Calc

Product Details

Afbeeldingen

Fixation de structure bois

Zoom de la pointe

Steel frame structure anchoring

Kenmerken

Materiaal

Elektrolytisch verzinkt staal.

Voordelen

Kleine rand- en hartafstanden,
Snelle en eenvoudige plaatsing: voorgemonteerde moer en sluitring en gereduceerde verankeringsdiepte;
Ø van de schroefdraad = Ø van het boorgat,
Schroefdraad beschermd tijdens de plaatsing: versterkte inslagpunt.
Markering op de kop: identificatie van de afmetingen van het doorsteekanker na de plaatsing

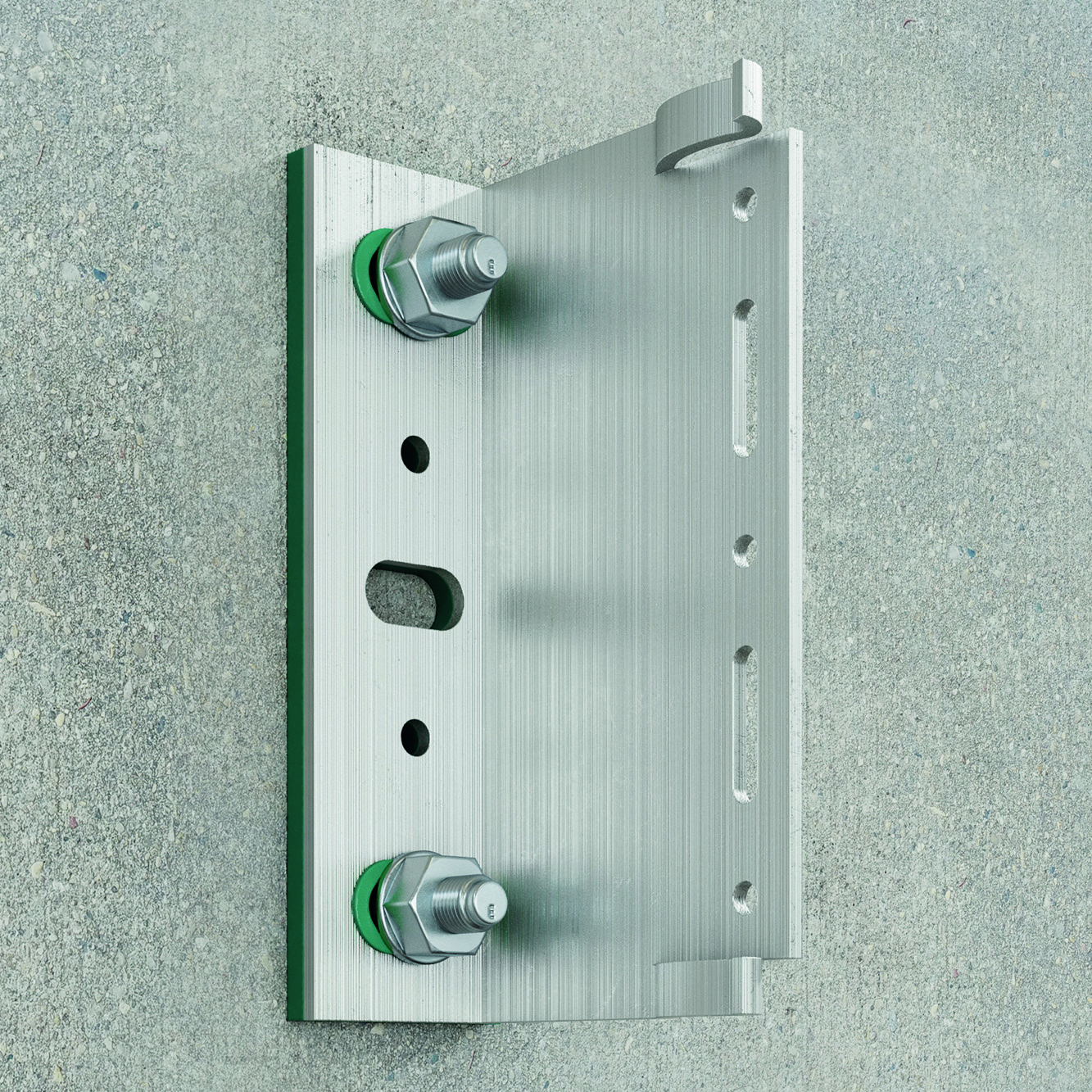

Toepassing

Applications

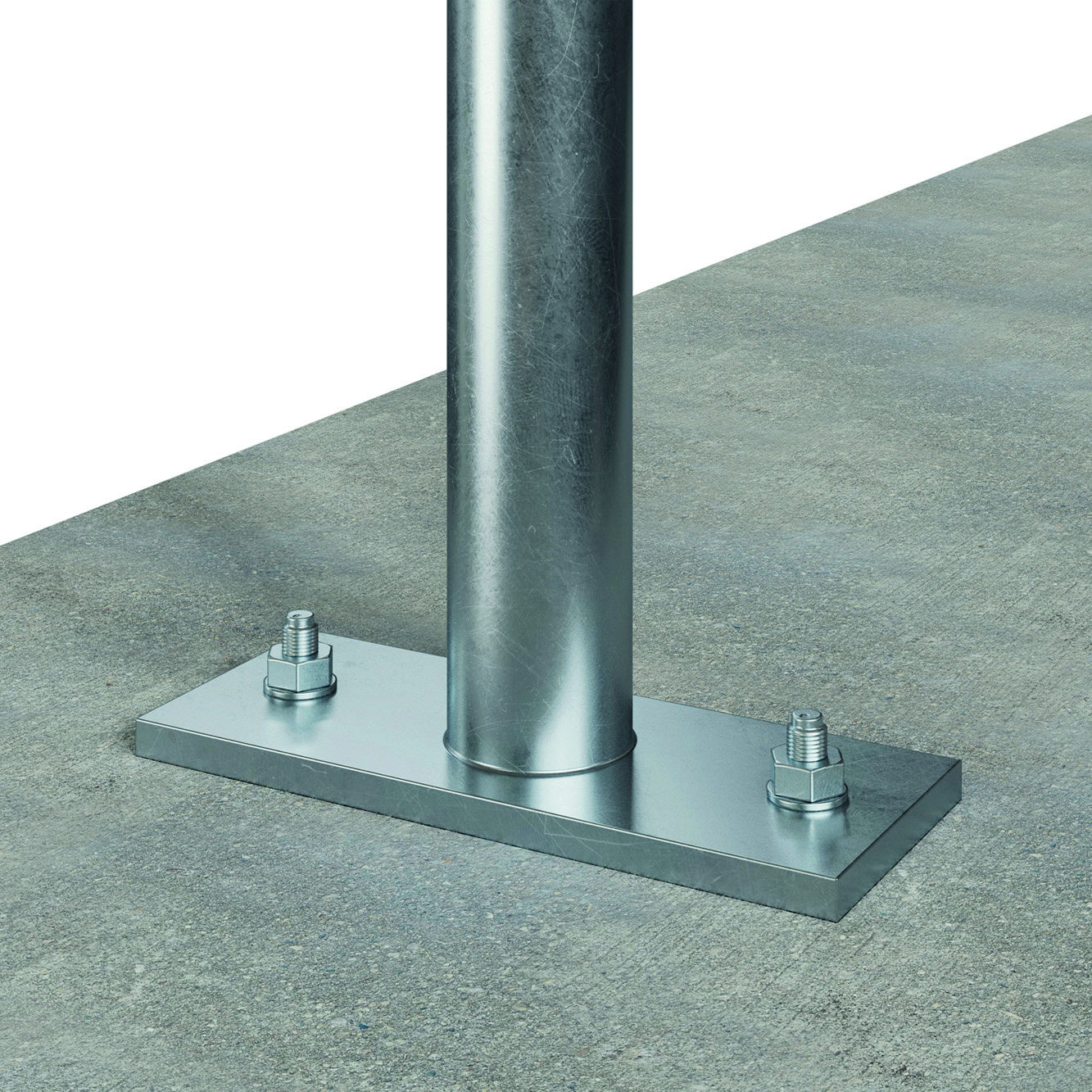

Railings

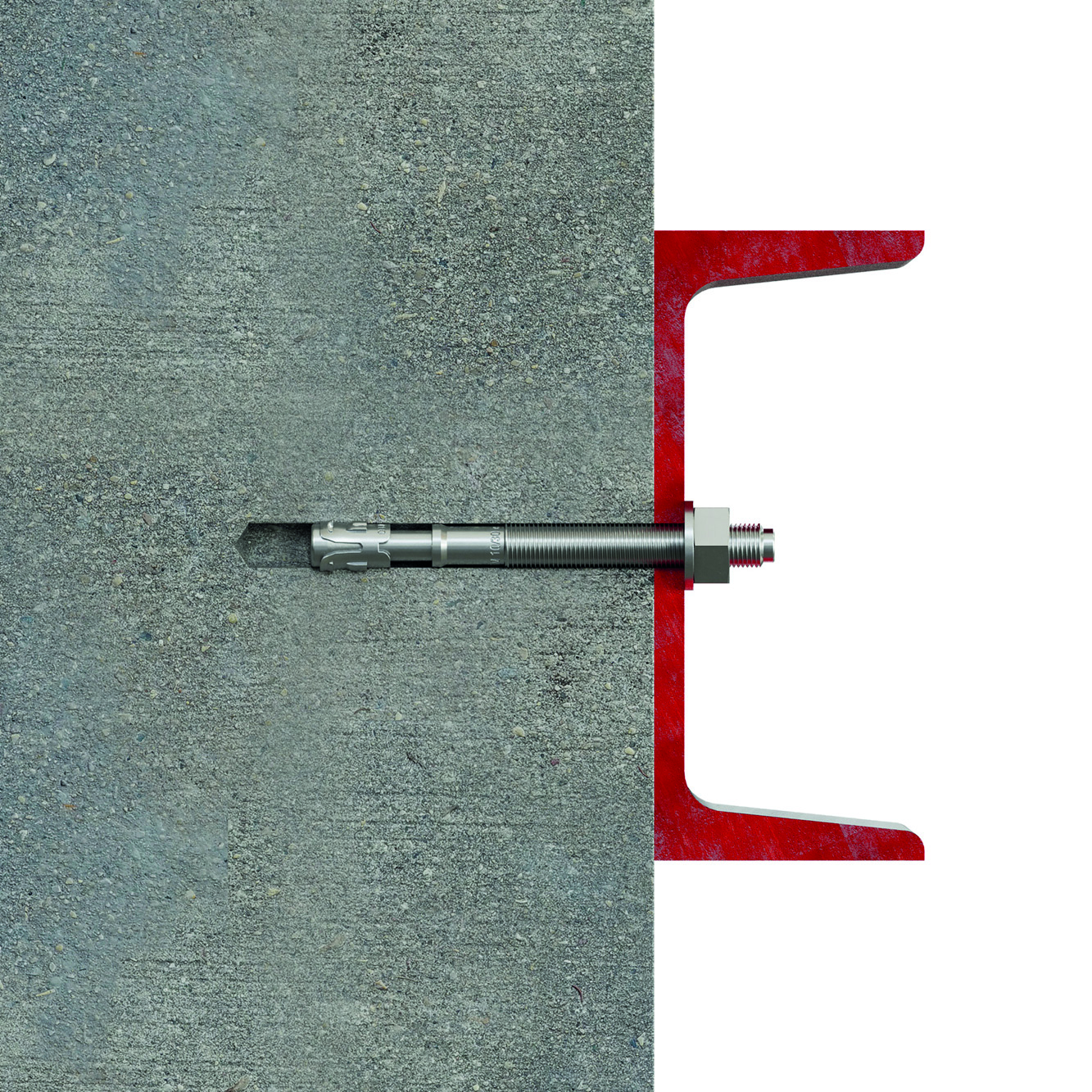

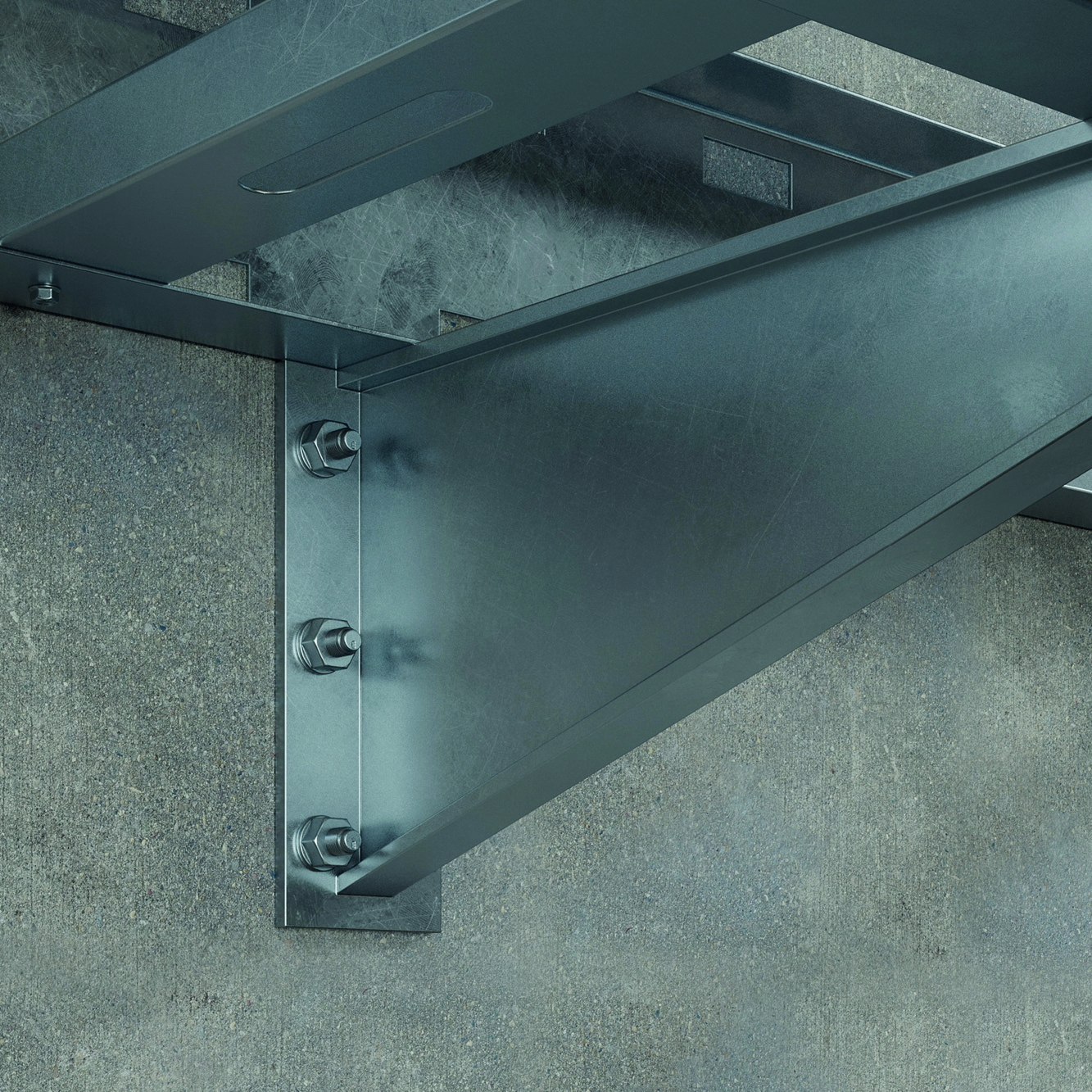

Metal and wood carpentry
Facades

Toepassingsgebieden

Ongescheurd beton,
Harde natuursteen

Technische gegevens

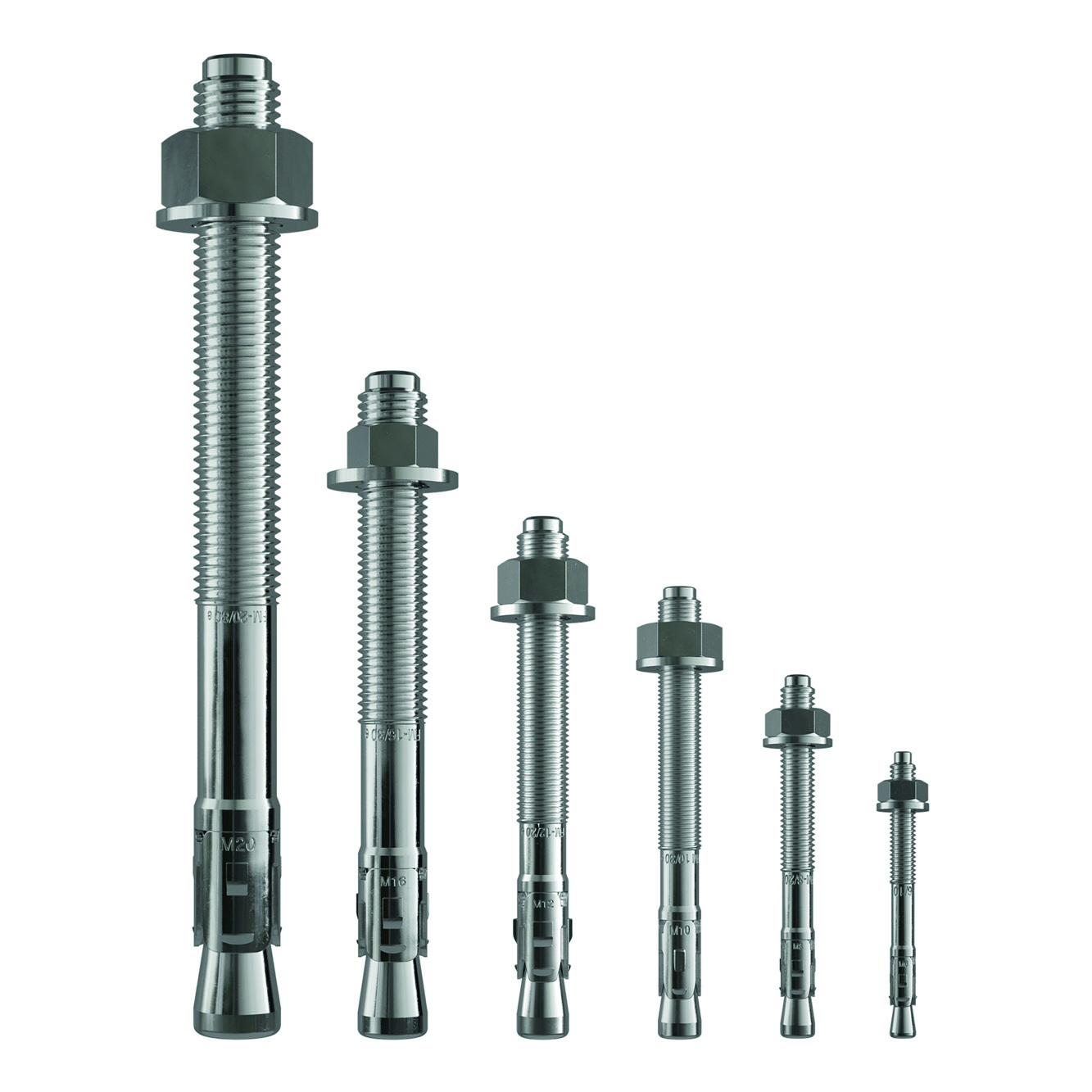

Dimensions

Referentie	Metallic fixings dimensions												Montagegegevens
	Overig							Productreferentie	Afmetingen[mm]				Montagegegevens			Spacing and edge distances - Rebar
	NOBB nr.	Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]	Hole diameter [dₒ][mm]	Hole diameter in fixture [df][mm]	Verpakking[stk]	Qty per outer box	Gewicht[kg]	Productreferentie	Dimensions[mm]	ID¹)	Thread length [Lv][mm]	Wrench size[mm]	Min. hole depth [h₁][mm]	Embedment depth[mm]	Installation torque[Nm]	Min. support thickness [hₘᵢₙ]
75340B0604800	60743077	3	6	7	150.0	1500	0.012	FM 753 evo	M6x48/*	A	18	10	45	30	8	90
75340B0606500	60743078	10	6	7	100.0	1000	0.015	FM 753 evo	M6x65	B	30	10	55	40	8	100
75340B0608500	-	30	6	7	100.0	1000	0.018	FM 753 evo	M6x85	C	40	10	55	40	8	100
75340B0806800	-	5	8	9	100.0	400	0.028	FM 753 evo	M8x68	B	40	13	65	45	15	100
75340B0807300	-	10	8	9	100.0	400	0.029	FM 753 evo	M8x73	C	45	13	65	45	15	100
75340B0808300	-	20	8	9	100.0	400	0.033	FM 753 evo	M8x83	D	45	13	65	45	15	100
75340B0809300	-	30	8	9	100.0	400	0.036	FM 753 evo	M8x93	E	50	13	65	45	15	100
75340B0810300	-	40	8	9	100.0	400	0.04	FM 753 evo	M8x103	F	50	13	65	45	15	100
75340B0811300	60743079	50	8	9	100.0	400	0.042	FM 753 evo	M8x113	G	60	13	65	45	15	100
75340B0813300	-	70	8	9	100.0	400	0.048	FM 753 evo	M8x133	H	85	13	65	45	15	100
75340B0816300	-	100	8	9	50.0	200	0.058	FM 753 evo	M8x163	I	100	13	65	45	15	100
75340B1007800	-	5	10	12	50.0	200	0.055	FM 753 evo	M10x78	B	40	17	70	50	30	100
75340B1008300	60743081	10	10	12	50.0	200	0.056	FM 753 evo	M10x83	C	40	17	70	50	30	100
75340B1009300	-	20	10	12	50.0	200	0.061	FM 753 evo	M10x93	D	50	17	70	50	30	100
75340B1010300	60743082	30	10	12	50.0	200	0.065	FM 753 evo	M10x103	E	50	17	70	50	30	100
75340B1011300	-	40	10	12	50.0	200	0.071	FM 753 evo	M10x113	F	60	17	70	50	30	100
75340B1012300	60743083	50	10	12	50.0	200	0.076	FM 753 evo	M10x123	G	60	17	70	50	30	100
75340B1014300	-	70	10	12	50.0	200	0.085	FM 753 evo	M10x143	H	70	17	70	50	30	100
75340B1017300	-	100	10	12	25.0	100	0.1	FM 753 evo	M10x173	I	80	17	70	50	30	100
75340B1021300	-	140	10	12	25.0	100	0.12	FM 753 evo	M10x213	L	100	17	70	50	30	100
75340B1210400	-	5	12	14	50.0	200	0.097	FM 753 evo	M12x104	B	60	19	90	65	50	130
75340B1210900	60743085	10	12	14	50.0	200	0.1	FM 753 evo	M12x109	C	60	19	90	65	50	130
75340B1211900	-	20	12	14	50.0	200	0.11	FM 753 evo	M12x119	D	70	19	90	65	50	130
75340B1212900	60843086	30	12	14	25.0	100	0.12	FM 753 evo	M12x129	E	70	19	90	65	50	130
75340B1213900	-	40	12	14	25.0	100	0.13	FM 753 evo	M12x139	F	80	19	90	65	50	130
75340B1214900	60743087	50	12	14	25.0	100	0.13	FM 753 evo	M12x149	G	100	19	90	65	50	130
75340B1217900	-	80	12	14	25.0	100	0.15	FM 753 evo	M12x179	H	110	19	90	65	50	130
75340B1219900	60743088	100	12	14	25.0	100	0.17	FM 753 evo	M12x199	I	110	19	90	65	50	130
75340B1221900	-	120	12	14	20.0	80	0.18	FM 753 evo	M12x219	L	125	19	90	65	50	130
75340B1223900	-	140	12	14	20.0	80	0.2	FM 753 evo	M12x239	M	125	19	90	65	50	130
75340B1225900	-	160	12	14	20.0	80	0.21	FM 753 evo	M12x259	N	125	19	90	65	50	130
75340B1611000	60743089	15	16	18	20.0	80	0.19	FM 753 evo	M16x110/*	A	50	24	89	59	100	140
75340B1615100	60743090	30	16	18	20.0	80	0.24	FM 753 evo	M16x151	C	80	24	110	80	100	160
75340B1617100	60743091	50	16	18	15.0	60	0.27	FM 753 evo	M16x171	D	80	24	110	80	100	160
75340B1620100	-	80	16	18	15.0	60	0.31	FM 753 evo	M16x201	E	100	24	110	80	100	160
75340B1622100	60743092	100	16	18	15.0	60	0.34	FM 753 evo	M16x221	F	100	24	110	80	100	160
75340B1626100	-	140	16	18	10.0	40	0.4	FM 753 evo	M16x261	H	110	24	110	80	100	160

^*Anchors with reduced embedment depths
^** Not covered by CE certification

¹⁾Ident. mark, product length

Design capacities - single anchor - no edge distances

Referentie	Metallic fixings dimensions	Metallic fixings loads
	Afmetingen[mm]	Design capacity - Non-cracked concrete (3)[kN]								Design capacity - Cracked concrete
	Dimensions[mm]	Tension - NRd (1)				Shear - VRd (1-2)[kN]				Bending moment MRd[Nm]
	Dimensions[mm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bending moment MRd[Nm]
75340B0604800	M6x48/*	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0606500	M6x65	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0608500	M6x85	4	4	4	4.1	5.1	5.1	5.1	5.1	7.3
75340B0806800	M8x68	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0807300	M8x73	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0808300	M8x83	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0809300	M8x93	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0810300	M8x103	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0811300	M8x113	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0813300	M8x133	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B0816300	M8x163	8	8.3	8.5	8.7	7.9	7.9	7.9	7.9	21.5
75340B1007800	M10x78	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1008300	M10x83	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1009300	M10x93	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1010300	M10x103	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1011300	M10x113	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1012300	M10x123	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1014300	M10x143	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1017300	M10x173	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1021300	M10x213	11.6	14.2	16.4	18.3	11.6	11.6	11.6	11.6	37.3
75340B1210400	M12x104	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1210900	M12x109	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1211900	M12x119	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1212900	M12x129	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1213900	M12x139	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1214900	M12x149	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1217900	M12x179	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1219900	M12x199	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1221900	M12x219	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1223900	M12x239	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1225900	M12x259	17.2	20.8	23.9	26.7	20.1	20.1	20.1	20.1	65.3
75340B1611000	M16x110/*	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1615100	M16x151	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1617100	M16x171	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1620100	M16x201	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1622100	M16x221	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3
75340B1626100	M16x261	23.5	27	29.8	32.4	37.5	37.5	37.5	37.5	155.3

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Recommended capacities - single anchor - no edge distances

Referentie	Metallic fixings dimensions	Metallic fixings loads
	Afmetingen[mm]	Recommended loads - Non-cracked concrete								Design capacity - Non-cracked concrete (3)[kN]
	Dimensions[mm]	Tension - Nᵣₑc[kN]				Shear - Vᵣₑc[kN]				Bending moment MRd[Nm]
	Dimensions[mm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	Bending moment MRd[Nm]
75340B0604800	M6x48/*	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0606500	M6x65	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0608500	M6x85	2.2	2.9	2.9	2.9	2.9	3.6	3.6	3.6	3.6
75340B0806800	M8x68	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0807300	M8x73	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0808300	M8x83	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0809300	M8x93	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0810300	M8x103	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0811300	M8x113	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0813300	M8x133	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B0816300	M8x163	2.4	5.7	5.9	6.1	6.2	5.6	5.6	5.6	5.6
75340B1007800	M10x78	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1008300	M10x83	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1009300	M10x93	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1010300	M10x103	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1011300	M10x113	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1012300	M10x123	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1014300	M10x143	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1017300	M10x173	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1021300	M10x213	4.7	8.3	10.1	11.7	13.1	8.3	8.3	8.3	8.3
75340B1210400	M12x104	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1210900	M12x109	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1211900	M12x119	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1212900	M12x129	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1213900	M12x139	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1214900	M12x149	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1217900	M12x179	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1219900	M12x199	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1221900	M12x219	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1223900	M12x239	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1225900	M12x259	7.2	12.3	14.9	17.1	19.1	14.4	14.4	14.4	14.4
75340B1611000	M16x110/*	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1615100	M16x151	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1617100	M16x171	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1620100	M16x201	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1622100	M16x221	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8
75340B1626100	M16x261	9.2	16.8	19.3	21.3	23.1	26.8	26.8	26.8	26.8

1. The recommended loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s) and with a partial safety factor for actions of γF=1.4. The loading figures
are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10 mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per
ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Design capacities - single anchor - no edge distances - reduced embedment depth

Referentie	Metallic fixings dimensions	Metallic fixings loads	Montagegegevens
	Afmetingen[mm]	Design loads - Tension & Shear - Nᵣd[kN]	Montagegegevens	Spacing and edge distances
	Dimensions[mm]	Design loads - Tension & Shear - Nᵣd[kN]	Reduced setting depth [hₑf,ᵣₑD][mm]	Characteristic spacing for hₑf,ᵣ(⁵)[mm]	Min. setting depth [hₑf][mm]	Min. spacing for hₑf,ᵣ[mm]	Min. edge distance for hₑf,ᵣ
75340B0604800	M6x48/*	5.2	30	90	45	30	40
75340B0606500	M6x65	5.2	30	90	45	30	40
75340B0608500	M6x85	5.2	30	90	45	30	40
75340B0806800	M8x68	13.4	30	90	45	40	40
75340B0807300	M8x73	13.4	30	90	45	40	40
75340B0808300	M8x83	13.4	30	90	45	40	40
75340B0809300	M8x93	13.4	30	90	45	40	40
75340B0810300	M8x103	13.4	30	90	45	40	40
75340B0811300	M8x113	13.4	30	90	45	40	40
75340B0813300	M8x133	13.4	30	90	45	40	40
75340B0816300	M8x163	13.4	30	90	45	40	40
75340B1007800	M10x78	26.6	35	105	55	50	50
75340B1008300	M10x83	26.6	35	105	55	50	50
75340B1009300	M10x93	26.6	35	105	55	50	50
75340B1010300	M10x103	26.6	35	105	55	50	50
75340B1011300	M10x113	26.6	35	105	55	50	50
75340B1012300	M10x123	26.6	35	105	55	50	50
75340B1014300	M10x143	26.6	35	105	55	50	50
75340B1017300	M10x173	26.6	35	105	55	50	50
75340B1021300	M10x213	26.6	35	105	55	50	50
75340B1210400	M12x104	46.6	50	150	75	70	70
75340B1210900	M12x109	46.6	50	150	75	70	70
75340B1211900	M12x119	46.6	50	150	75	70	70
75340B1212900	M12x129	46.6	50	150	75	70	70
75340B1213900	M12x139	46.6	50	150	75	70	70
75340B1214900	M12x149	46.6	50	150	75	70	70
75340B1217900	M12x179	46.6	50	150	75	70	70
75340B1219900	M12x199	46.6	50	150	75	70	70
75340B1221900	M12x219	46.6	50	150	75	70	70
75340B1223900	M12x239	46.6	50	150	75	70	70
75340B1225900	M12x259	46.6	50	150	75	70	70
75340B1611000	M16x110/*	110.9	59	180	90	90	90
75340B1615100	M16x151	110.9	59	180	90	90	90
75340B1617100	M16x171	110.9	59	180	90	90	90
75340B1620100	M16x201	110.9	59	180	90	90	90
75340B1622100	M16x221	110.9	59	180	90	90	90
75340B1626100	M16x261	110.9	59	180	90	90	90

Shear value valid with distance from the edge c>10 x h_ef,r

Recommended capacities - single anchor - no edge distances - reduced embedment depth

Referentie	Metallic fixings dimensions	Metallic fixings loads	Montagegegevens
	Afmetingen[mm]	tension / shear load Rᵣₑc[kN]	Montagegegevens	Spacing and edge distances
	Dimensions[mm]	tension / shear load Rᵣₑc[kN]	Reduced setting depth [hₑf,ᵣₑD][mm]	Characteristic spacing for hₑf,ᵣ(⁵)[mm]	Min. setting depth [hₑf][mm]	Min. spacing for hₑf,ᵣ[mm]	Min. edge distance for hₑf,ᵣ
75340B0604800	M6x48/*	1.6	30	90	45	30	40
75340B0606500	M6x65	1.6	30	90	45	30	40
75340B0608500	M6x85	1.6	30	90	45	30	40
75340B0806800	M8x68	1.7	30	90	45	40	40
75340B0807300	M8x73	1.7	30	90	45	40	40
75340B0808300	M8x83	1.7	30	90	45	40	40
75340B0809300	M8x93	1.7	30	90	45	40	40
75340B0810300	M8x103	1.7	30	90	45	40	40
75340B0811300	M8x113	1.7	30	90	45	40	40
75340B0813300	M8x133	1.7	30	90	45	40	40
75340B0816300	M8x163	1.7	30	90	45	40	40
75340B1007800	M10x78	3.4	35	105	55	50	50
75340B1008300	M10x83	3.4	35	105	55	50	50
75340B1009300	M10x93	3.4	35	105	55	50	50
75340B1010300	M10x103	3.4	35	105	55	50	50
75340B1011300	M10x113	3.4	35	105	55	50	50
75340B1012300	M10x123	3.4	35	105	55	50	50
75340B1014300	M10x143	3.4	35	105	55	50	50
75340B1017300	M10x173	3.4	35	105	55	50	50
75340B1021300	M10x213	3.4	35	105	55	50	50
75340B1210400	M12x104	5.2	50	150	75	70	70
75340B1210900	M12x109	5.2	50	150	75	70	70
75340B1211900	M12x119	5.2	50	150	75	70	70
75340B1212900	M12x129	5.2	50	150	75	70	70
75340B1213900	M12x139	5.2	50	150	75	70	70
75340B1214900	M12x149	5.2	50	150	75	70	70
75340B1217900	M12x179	5.2	50	150	75	70	70
75340B1219900	M12x199	5.2	50	150	75	70	70
75340B1221900	M12x219	5.2	50	150	75	70	70
75340B1223900	M12x239	5.2	50	150	75	70	70
75340B1225900	M12x259	5.2	50	150	75	70	70
75340B1611000	M16x110/*	6.5	59	180	90	90	90
75340B1615100	M16x151	6.5	59	180	90	90	90
75340B1617100	M16x171	6.5	59	180	90	90	90
75340B1620100	M16x201	6.5	59	180	90	90	90
75340B1622100	M16x221	6.5	59	180	90	90	90
75340B1626100	M16x261	6.5	59	180	90	90	90

The recommended loads N,V and F derive from the mean ultimate loads and are inclusive of the total safety factor γ=4 (shear γ=3).

Shear value valid with distance from the edge c>10 x hef,r

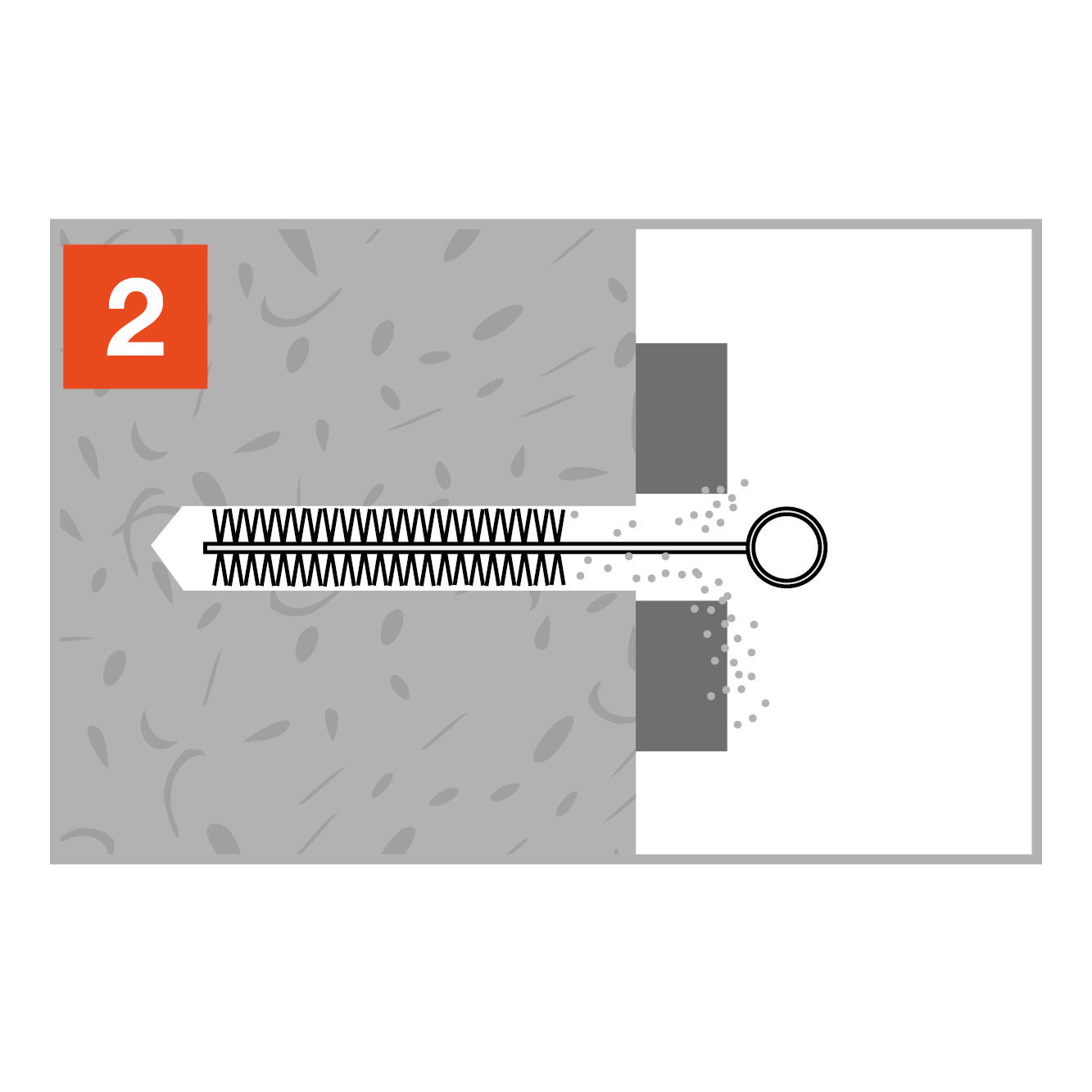

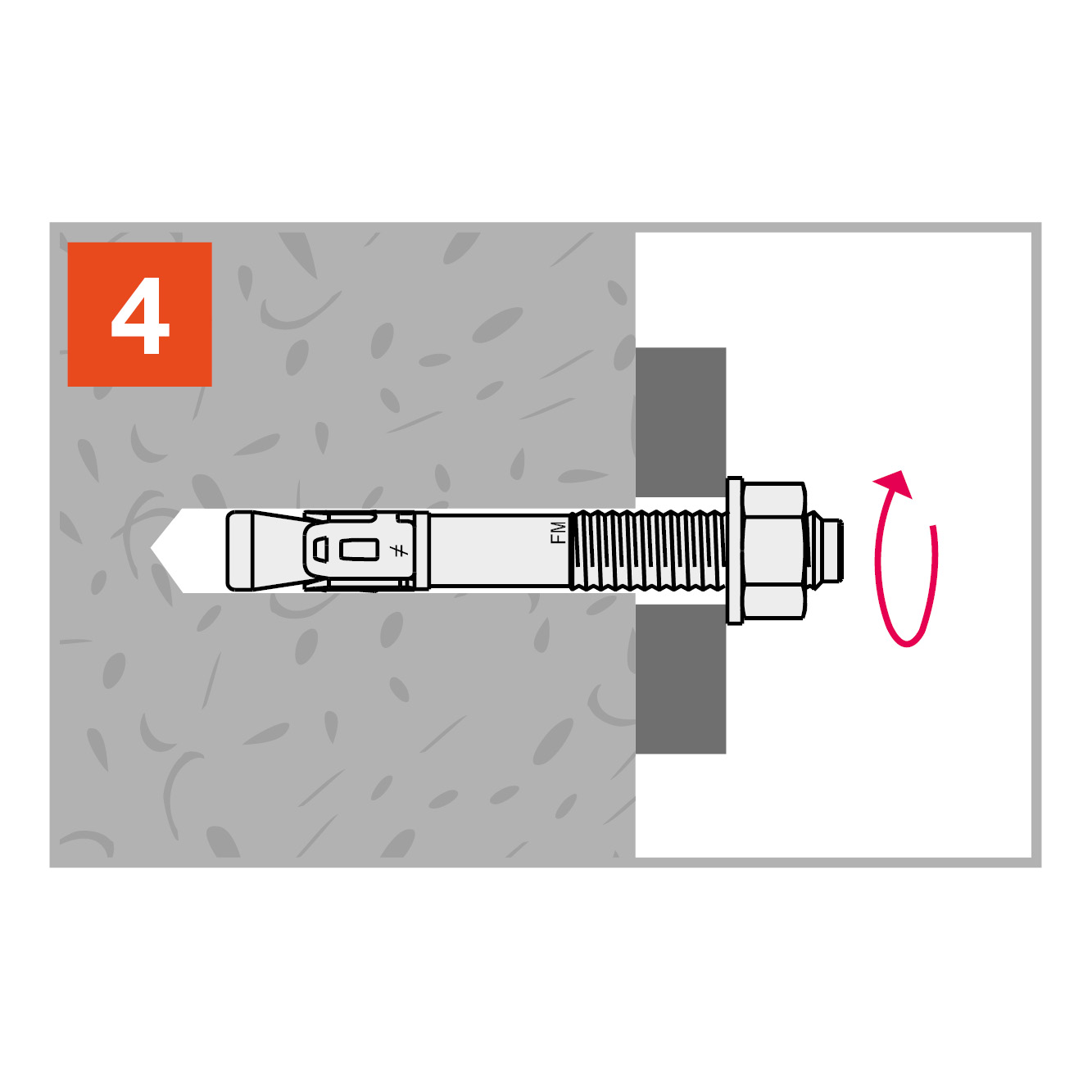

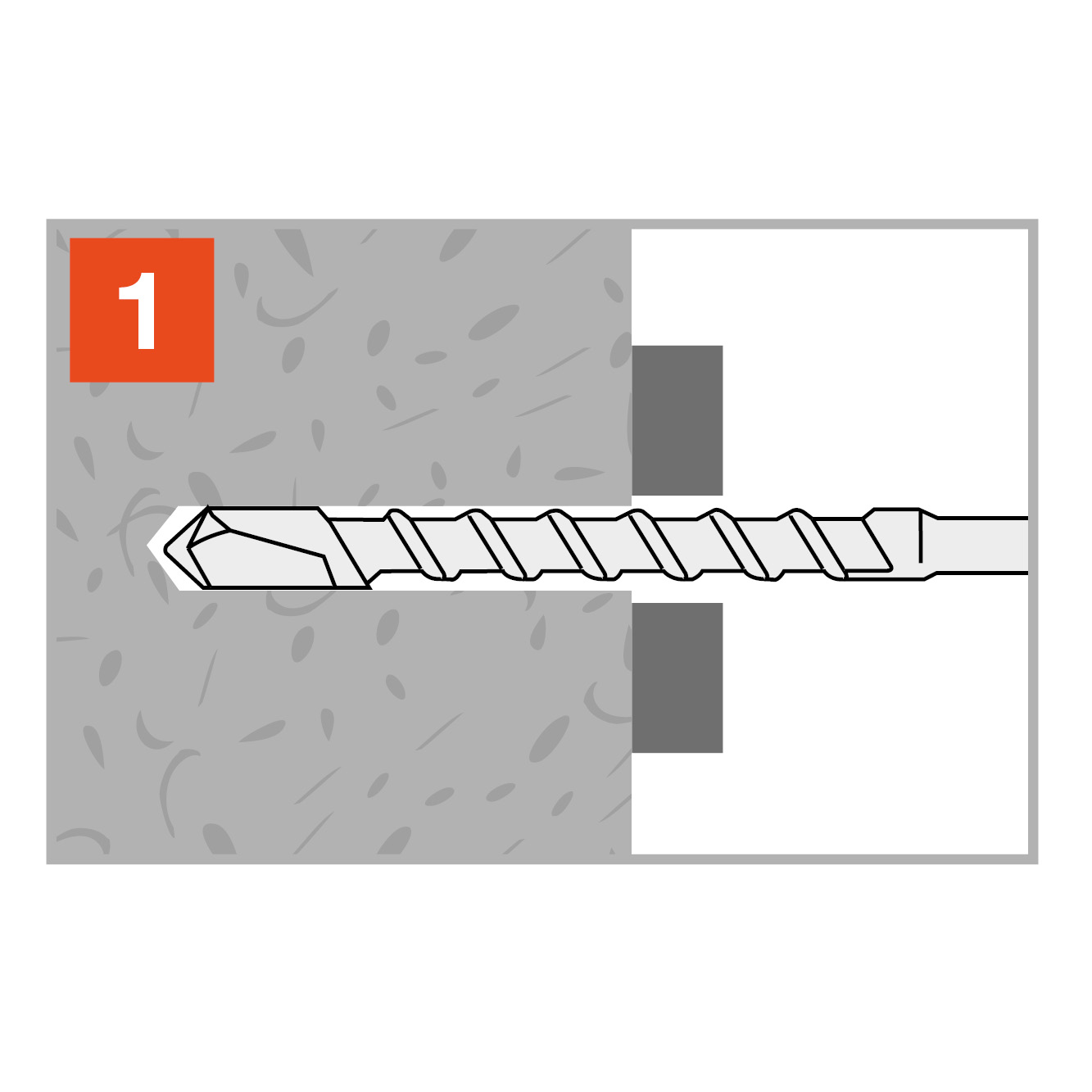

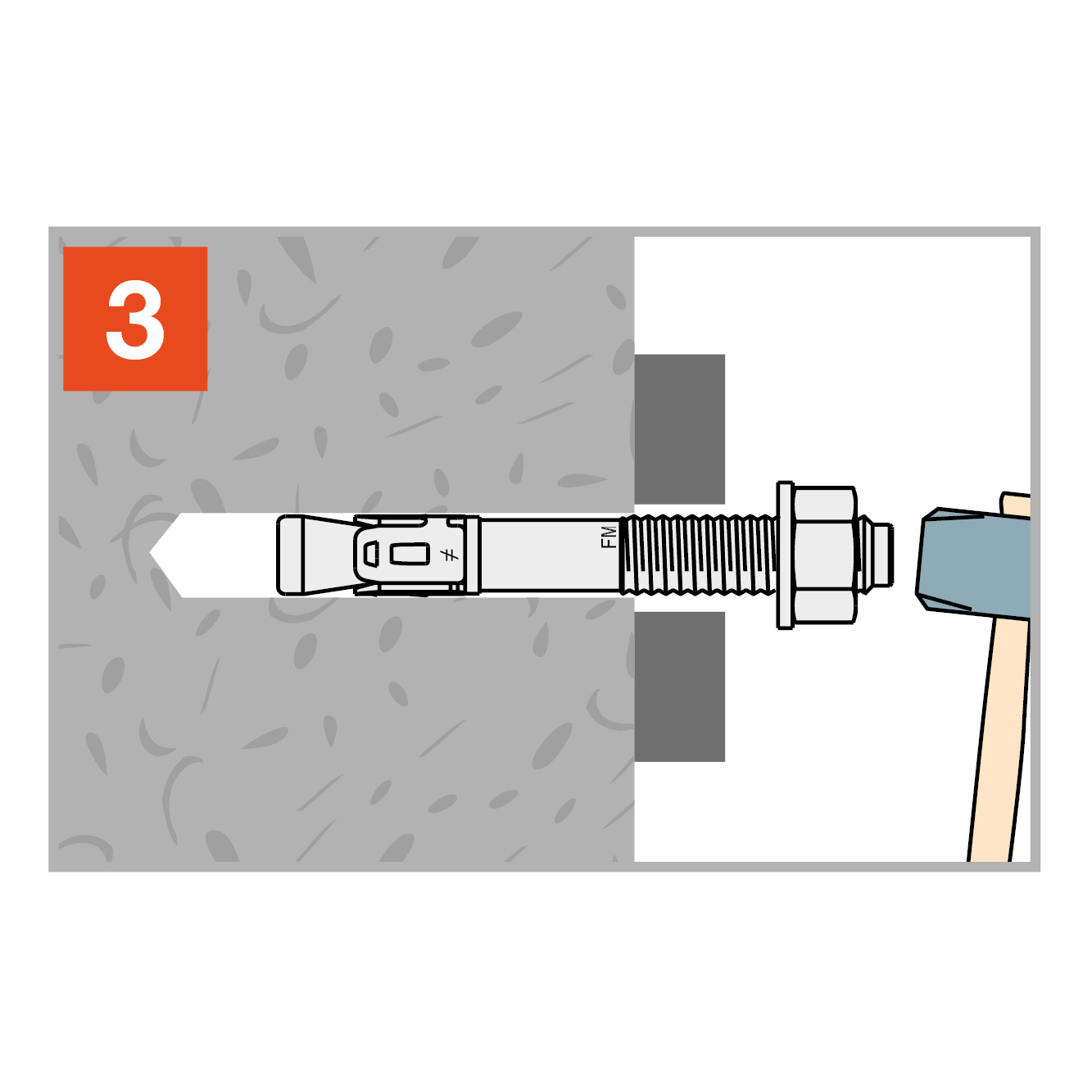

Installatie

Spacing, Edge Distance and Member Thickness

Referentie	Metallic fixings dimensions				Montagegegevens
	Afmetingen[mm]		Overig		Montagegegevens			Spacing and edge distances - Rebar		Spacing and edge distances
	Dimensions[mm]	Wrench size[mm]	Hole diameter [dₒ][mm]	Hole diameter in fixture [df][mm]	Min. hole depth [h₁][mm]	Installation torque[Nm]	Embedment depth[mm]	Min. support thickness [hₘᵢₙ]	Min. edge distance[mm]	Characteristic spacing(5) - Scr,N[mm]	Characteristic edge distance[mm]	Sₘᵢₙ[mm]
75340B0604800	M6x48/*	10	6	7	45	8	30	90	40	120	60	30
75340B0606500	M6x65	10	6	7	55	8	40	100	40	120	60	30
75340B0608500	M6x85	10	6	7	55	8	40	100	40	120	60	30
75340B0806800	M8x68	13	8	9	65	15	45	100	40	135	68	40
75340B0807300	M8x73	13	8	9	65	15	45	100	40	135	68	40
75340B0808300	M8x83	13	8	9	65	15	45	100	40	135	68	40
75340B0809300	M8x93	13	8	9	65	15	45	100	40	135	68	40
75340B0810300	M8x103	13	8	9	65	15	45	100	40	135	68	40
75340B0811300	M8x113	13	8	9	65	15	45	100	40	135	68	40
75340B0813300	M8x133	13	8	9	65	15	45	100	40	135	68	40
75340B0816300	M8x163	13	8	9	65	15	45	100	40	135	68	40
75340B1007800	M10x78	17	10	12	70	30	50	100	50	150	75	50
75340B1008300	M10x83	17	10	12	70	30	50	100	50	150	75	50
75340B1009300	M10x93	17	10	12	70	30	50	100	50	150	75	50
75340B1010300	M10x103	17	10	12	70	30	50	100	50	150	75	50
75340B1011300	M10x113	17	10	12	70	30	50	100	50	150	75	50
75340B1012300	M10x123	17	10	12	70	30	50	100	50	150	75	50
75340B1014300	M10x143	17	10	12	70	30	50	100	50	150	75	50
75340B1017300	M10x173	17	10	12	70	30	50	100	50	150	75	50
75340B1021300	M10x213	17	10	12	70	30	50	100	50	150	75	50
75340B1210400	M12x104	19	12	14	90	50	65	130	70	195	98	70
75340B1210900	M12x109	19	12	14	90	50	65	130	70	195	98	70
75340B1211900	M12x119	19	12	14	90	50	65	130	70	195	98	70
75340B1212900	M12x129	19	12	14	90	50	65	130	70	195	98	70
75340B1213900	M12x139	19	12	14	90	50	65	130	70	195	98	70
75340B1214900	M12x149	19	12	14	90	50	65	130	70	195	98	70
75340B1217900	M12x179	19	12	14	90	50	65	130	70	195	98	70
75340B1219900	M12x199	19	12	14	90	50	65	130	70	195	98	70
75340B1221900	M12x219	19	12	14	90	50	65	130	70	195	98	70
75340B1223900	M12x239	19	12	14	90	50	65	130	70	195	98	70
75340B1225900	M12x259	19	12	14	90	50	65	130	70	195	98	70
75340B1611000	M16x110/*	24	16	18	89	100	59	140	90	240	120	90
75340B1615100	M16x151	24	16	18	110	100	80	160	90	240	120	90
75340B1617100	M16x171	24	16	18	110	100	80	160	90	240	120	90
75340B1620100	M16x201	24	16	18	110	100	80	160	90	240	120	90
75340B1622100	M16x221	24	16	18	110	100	80	160	90	240	120	90
75340B1626100	M16x261	24	16	18	110	100	80	160	90	240	120	90
