FM-753 CRACK 3DG

Seismisch doorsteekanker

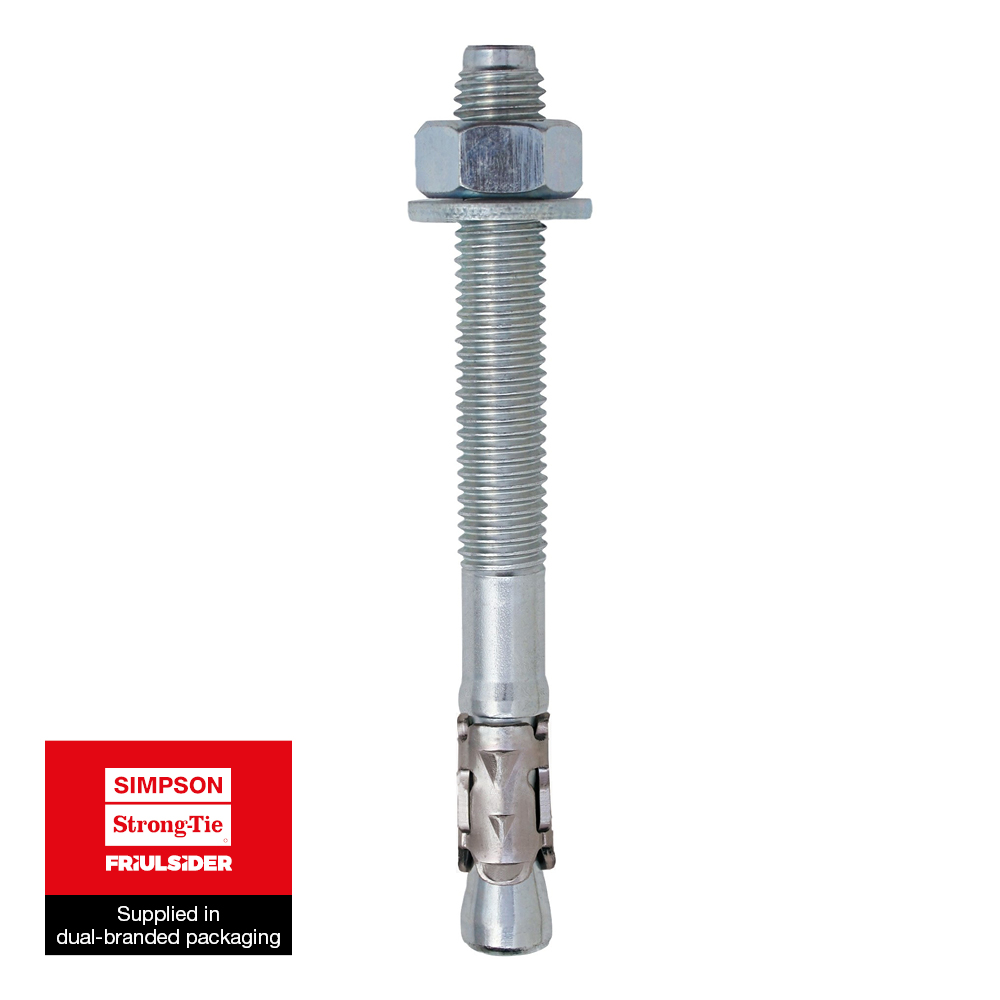

Het doorsteekanker FM-753 CRACK 3DG is een bevestigingssysteem door uitzetting voor zware belastingen op gescheurd en ongescheurd beton, voor het overbrengen van seismische belastingen (C1 en C2) in binnen- of buitentoepassingen.

Technisch gegevensblad

CE-Markering

ETA

Nieuw

Sprinkler Systems

Buiten

Seismic C1 C2

3DG Coating

Brand R120

Résistance aux gros chocs

Fix Calc

Product Details

Afbeeldingen

Kenmerken

Materiaal

Gehard staal (klasse 9.8),
Speciale corrosiewerende 3DG-coating met glanzende afwerking,
Uitzettingsring van A4 roestvrij staal voor maximale grip op de boorgatwanden.

Voordelen

Tijdwinst:

Onmiddellijke uitzetting,
Montage door het te bevestigen element, Ø van het boorgat = Ø van de plug,
Voorgemonteerde moer en sluitring.

Prestaties:

Seismische en dynamische belastingen,
Seismische prestaties C1 en C2,
Negen roestvrijstalen tanden voor een betere grip op de boorgatwanden,
Brandwerendheid R120,
Lage minimale rand- en hartafstanden.

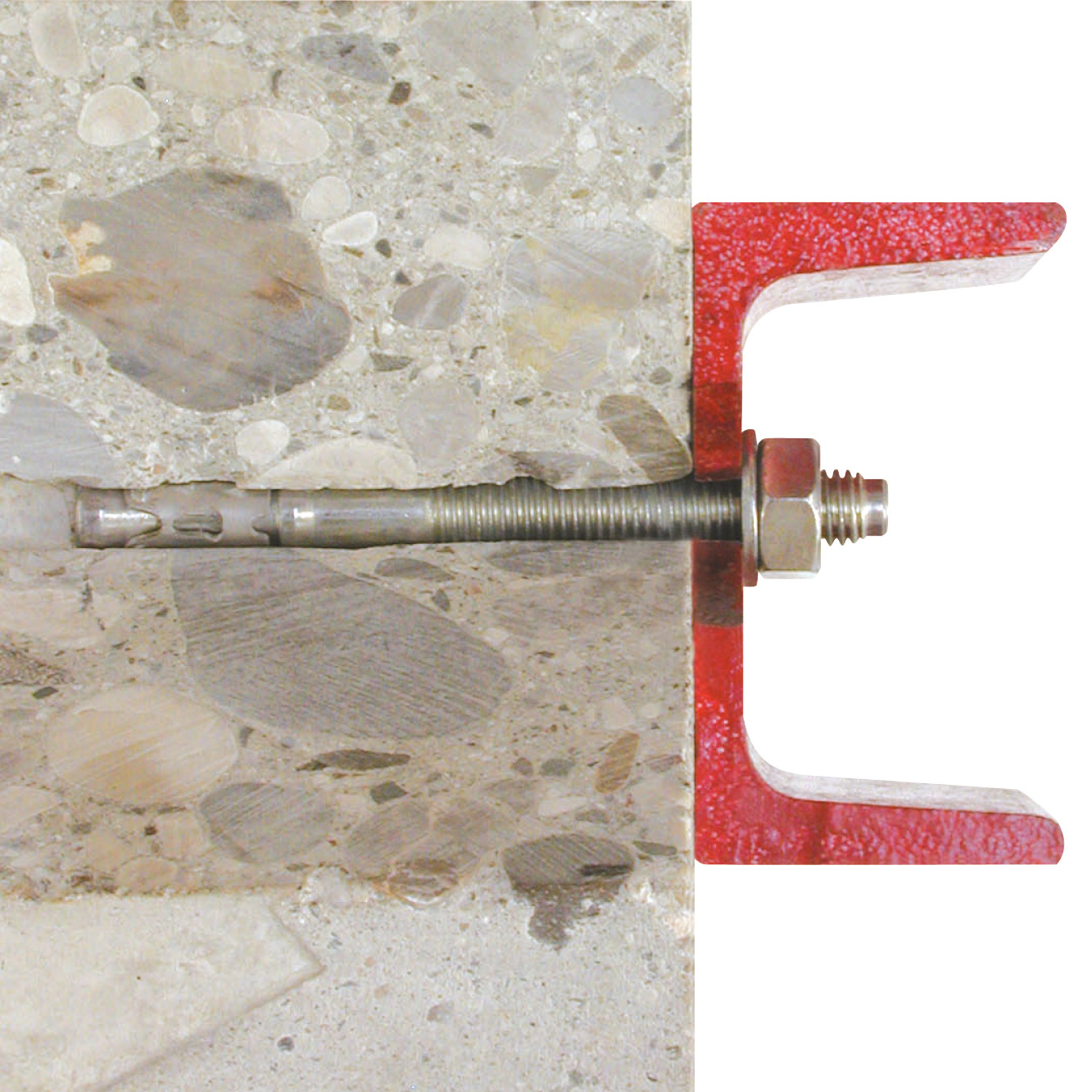

Toepassing

Toepassingsgebieden

Structurele bevestigingen met seismische voorzieningen,
Gevel,
Borstweringen,
Hoekijzer voor gevelbekleding ITE,
Ophangbeugels voor kapconstructies,
Bevestiging van statische of quasi-statische belastingen.

Ondergrond

Gescheurd beton,
Ongescheurd beton,
Seismische omgeving die overeenkomt met de categorieën C1 en C2.

Technische gegevens

Product dimensions

Afmetingen

Referentie	Metallic fixings dimensions												Installation data
	Mål[mm]		Product Reference	Other									Installation data
	Dimensions[mm]	Thread length [Lv][mm]	Product Reference	Seismic certification	Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]	Fixture thickness [tfᵢₓ,ₘₐₓ] with reduced setting depth [hₑf,ᵣₑD][mm]	Hole diameter in fixture [df][mm]	Hole diameter [dₒ] x depth [h₁] in substrate[mm]	Hole diameter [dₒ] x depth [h₁] in substrate with reduced setting depth [hₑf,ᵣₑD][mm]	Min. setting depth [hₑf][mm]	Verpakking[stk]	Gewicht[kg]	Reduced setting depth [hₑf,ᵣₑD][mm]
75350B0807500	M8x75	30	FM-753 CRACK 3DG	C1	10	24	9	8x70	8x56	48	100.0	0.031	34
75350B0809000	M8x90	40	FM-753 CRACK 3DG	C1	25	39	9	8x70	8x56	48	100.0	0.036	34
75350B1009000	M10x90	40	FM-753 CRACK 3DG	C1/C2	10	30	12	10x80	10x60	60	50.0	0.06	40
75350B1010500	M10x105	55	FM-753 CRACK 3DG	C1/C2	25	45	12	10x80	10x60	60	50.0	0.068	40
75350B1011500	M10x115	55	FM-753 CRACK 3DG	C1/C2	35	55	12	10x80	10x60	60	50.0	0.072	40
75350B1013500	M10x135	85	FM-753 CRACK 3DG	C1/C2	55	75	12	10x80	10x60	60	50.0	0.083	40
75350B1015500	M10x155	85	FM-753 CRACK 3DG	C1/C2	75	95	12	10x80	10x60	60	50.0	0.093	40
75350B1211000	M12x110	65	FM-753 CRACK 3DG	C1/C2	10	30	14	12x100	12x80	72	50.0	0.1	52
75350B1212000	M12x120	65	FM-753 CRACK 3DG	C1/C2	20	40	14	12x100	12x80	72	50.0	0.11	52
75350B1214500	M12x145	85	FM-753 CRACK 3DG	C1/C2	45	65	14	12x100	12x80	72	25.0	0.13	52
75350B1220000	M12x200	85	FM-753 CRACK 3DG	C1/C2	100	120	14	12x100	12x80	72	25.0	0.17	52
75350B1615000	M16x150	85	FM-753 CRACK 3DG	C1/C2	30	50	18	16x115	16x95	86	20.0	0.25	66
75350B1622000	M16x220	85	FM-753 CRACK 3DG	C1/C2	100	120	18	16x115	16x95	86	15.0	0.34	66

Design capacities - single anchor - no edge distances - Uncracked concrete

Referentie	Metallic fixings dimensions		Metallic fixings loads
	Mål[mm]	Product Reference	Design capacity - Non-cracked concrete (3)[kN]
	Dimensions[mm]		Bending moment MRd[Nm]	Tension - NRd (1)				Shear - VRd (1-2)[kN]
	Dimensions[mm]		Bending moment MRd[Nm]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]	C20/25[kN]	C30/37[kN]	C40/50[kN]	C50/60[kN]
75350B0807500	M8x75	FM-753 CRACK 3DG	-	6	-	-	-	8.6	-	-	-
75350B0809000	M8x90	FM-753 CRACK 3DG	-	6	-	-	-	8.6	-	-	-
75350B1009000	M10x90	FM-753 CRACK 3DG	-	10.7	-	-	-	16.1	-	-	-
75350B1010500	M10x105	FM-753 CRACK 3DG	-	10.7	-	-	-	16.1	-	-	-
75350B1011500	M10x115	FM-753 CRACK 3DG	-	10.7	-	-	-	16.1	-	-	-
75350B1013500	M10x135	FM-753 CRACK 3DG	-	10.7	-	-	-	16.1	-	-	-
75350B1015500	M10x155	FM-753 CRACK 3DG	-	10.7	-	-	-	16.1	-	-	-
75350B1211000	M12x110	FM-753 CRACK 3DG	-	13.3	-	-	-	22.5	-	-	-
75350B1212000	M12x120	FM-753 CRACK 3DG	-	13.3	-	-	-	22.5	-	-	-
75350B1214500	M12x145	FM-753 CRACK 3DG	-	13.3	-	-	-	22.5	-	-	-
75350B1220000	M12x200	FM-753 CRACK 3DG	-	13.3	-	-	-	22.5	-	-	-
75350B1615000	M16x150	FM-753 CRACK 3DG	-	23.3	-	-	-	44.3	-	-	-
75350B1622000	M16x220	FM-753 CRACK 3DG	-	23.3	-	-	-	44.3	-	-	-

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

*Not covered by ETA-11/0080

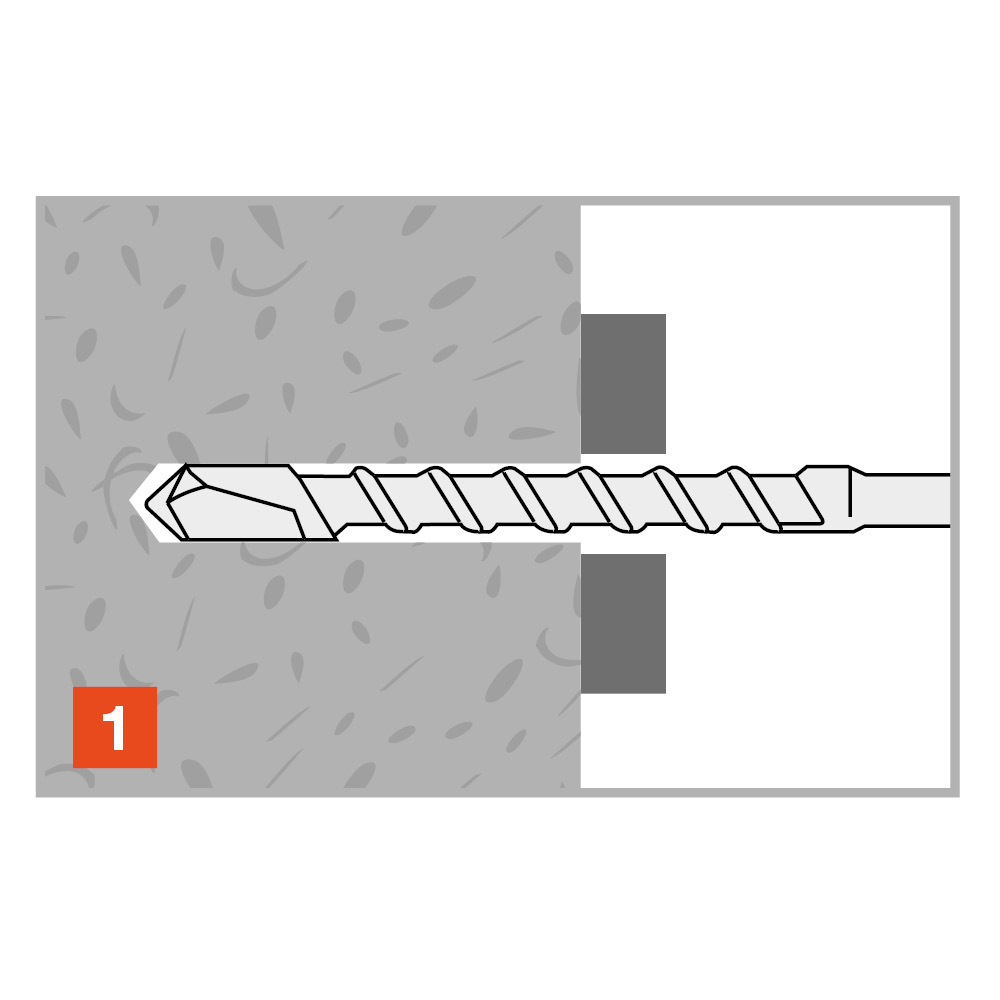

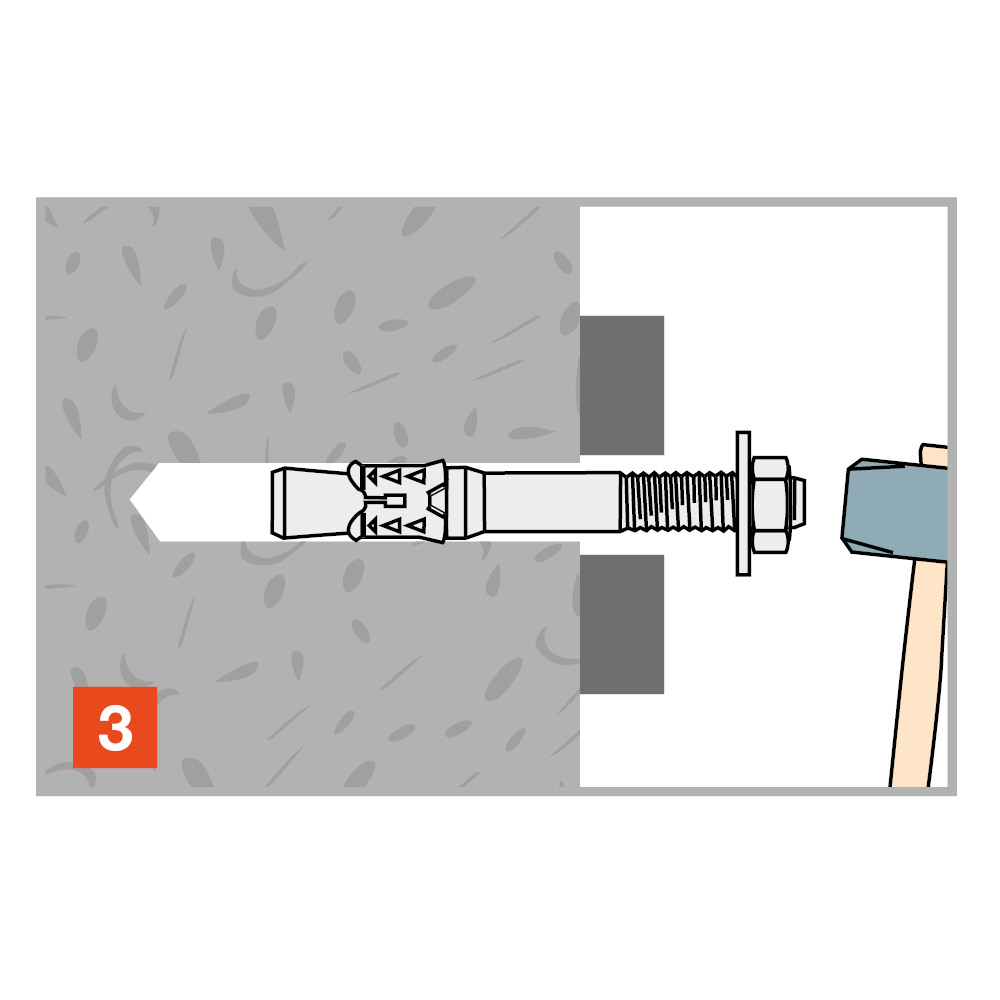

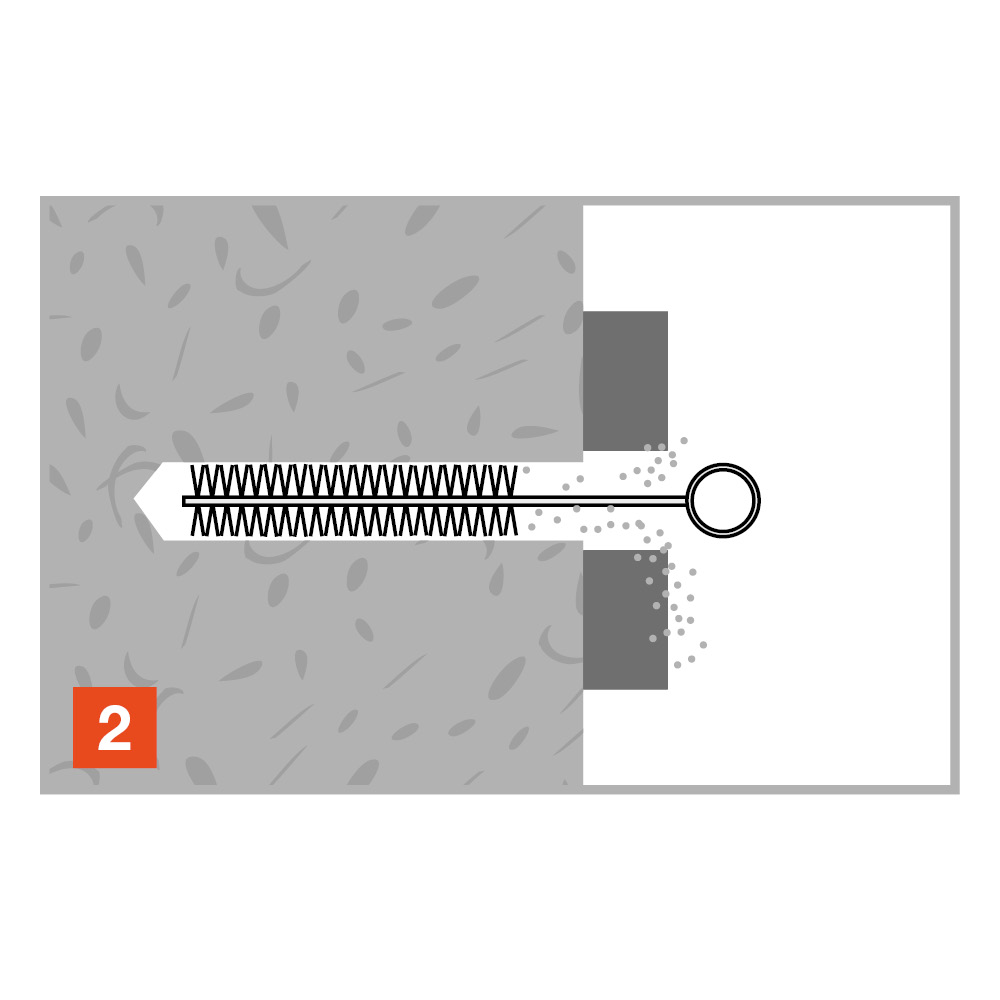

Installatie

Spacings and edge distances

Referentie	Metallic fixings dimensions		Installation data
	Mål[mm]	Product Reference	Spacing and edge distances
	Dimensions[mm]	Product Reference	Min. hartafstand[mm]	Sₘᵢₙ[mm]	Characteristic edge distance[mm]	Characteristic spacing(5) - Scr,N[mm]
75350B0807500	M8x75	FM-753 CRACK 3DG	50	50	72	144
75350B0809000	M8x90	FM-753 CRACK 3DG	50	50	72	144
75350B1009000	M10x90	FM-753 CRACK 3DG	60	60	90	180
75350B1010500	M10x105	FM-753 CRACK 3DG	60	60	90	180
75350B1011500	M10x115	FM-753 CRACK 3DG	60	60	90	180
75350B1013500	M10x135	FM-753 CRACK 3DG	60	60	90	180
75350B1015500	M10x155	FM-753 CRACK 3DG	60	60	90	180
75350B1211000	M12x110	FM-753 CRACK 3DG	70	70	110	220
75350B1212000	M12x120	FM-753 CRACK 3DG	70	70	110	220
75350B1214500	M12x145	FM-753 CRACK 3DG	70	70	110	220
75350B1220000	M12x200	FM-753 CRACK 3DG	70	70	110	220
75350B1615000	M16x150	FM-753 CRACK 3DG	85	80	120	258
75350B1622000	M16x220	FM-753 CRACK 3DG	85	80	120	258

Installation data

Referentie	Metallic fixings dimensions			Installation data
	Mål[mm]		Product Reference	Installation data					Spacing and edge distances
	Dimensions[mm]	Wrench size[mm]	Product Reference	Ø drilling hole[mm]	Min. boorgatdiepte[mm]	Ø drilling fixture[mm]	Installation torque[Nm]	Embedment depth[mm]	Min. support thickness[mm]
75350B0807500	M8x75	13	FM-753 CRACK 3DG	8	70	9	20	48	100
75350B0809000	M8x90	13	FM-753 CRACK 3DG	8	70	9	20	48	100
75350B1009000	M10x90	17	FM-753 CRACK 3DG	10	80	12	40	60	120
75350B1010500	M10x105	17	FM-753 CRACK 3DG	10	80	12	40	60	120
75350B1011500	M10x115	17	FM-753 CRACK 3DG	10	80	12	40	60	120
75350B1013500	M10x135	17	FM-753 CRACK 3DG	10	80	12	40	60	120
75350B1015500	M10x155	17	FM-753 CRACK 3DG	10	80	12	40	60	120
75350B1211000	M12x110	19	FM-753 CRACK 3DG	12	100	14	60	72	150
75350B1212000	M12x120	19	FM-753 CRACK 3DG	12	100	14	60	72	150
75350B1214500	M12x145	19	FM-753 CRACK 3DG	12	100	14	60	72	150
75350B1220000	M12x200	19	FM-753 CRACK 3DG	12	100	14	60	72	150
75350B1615000	M16x150	24	FM-753 CRACK 3DG	16	115	18	120	86	170
75350B1622000	M16x220	24	FM-753 CRACK 3DG	16	115	18	120	86	170
