EGCL

End Grain Connector Light

Technisch gegevensblad

CE-Markering

ETA

Gebruiksklasse 2

Brand

Aluminium

Product Details

Afbeeldingen

Kenmerken

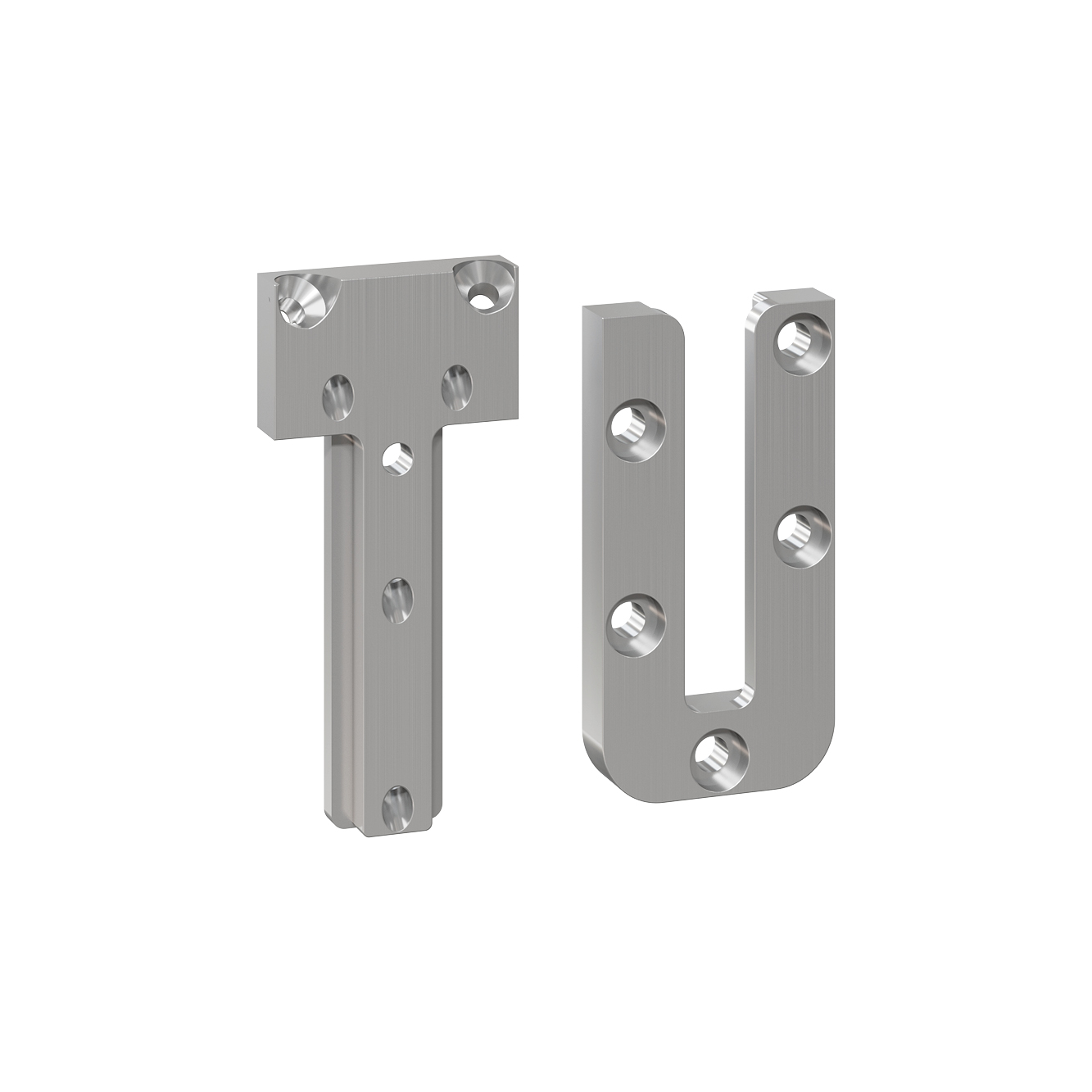

Material

Joist plate: 8mm aluminium
Header plate: 8mm aluminium

Benefits

Concealed connection
Multiple applications
Extrem small connetor

Toepassing

Suitable on

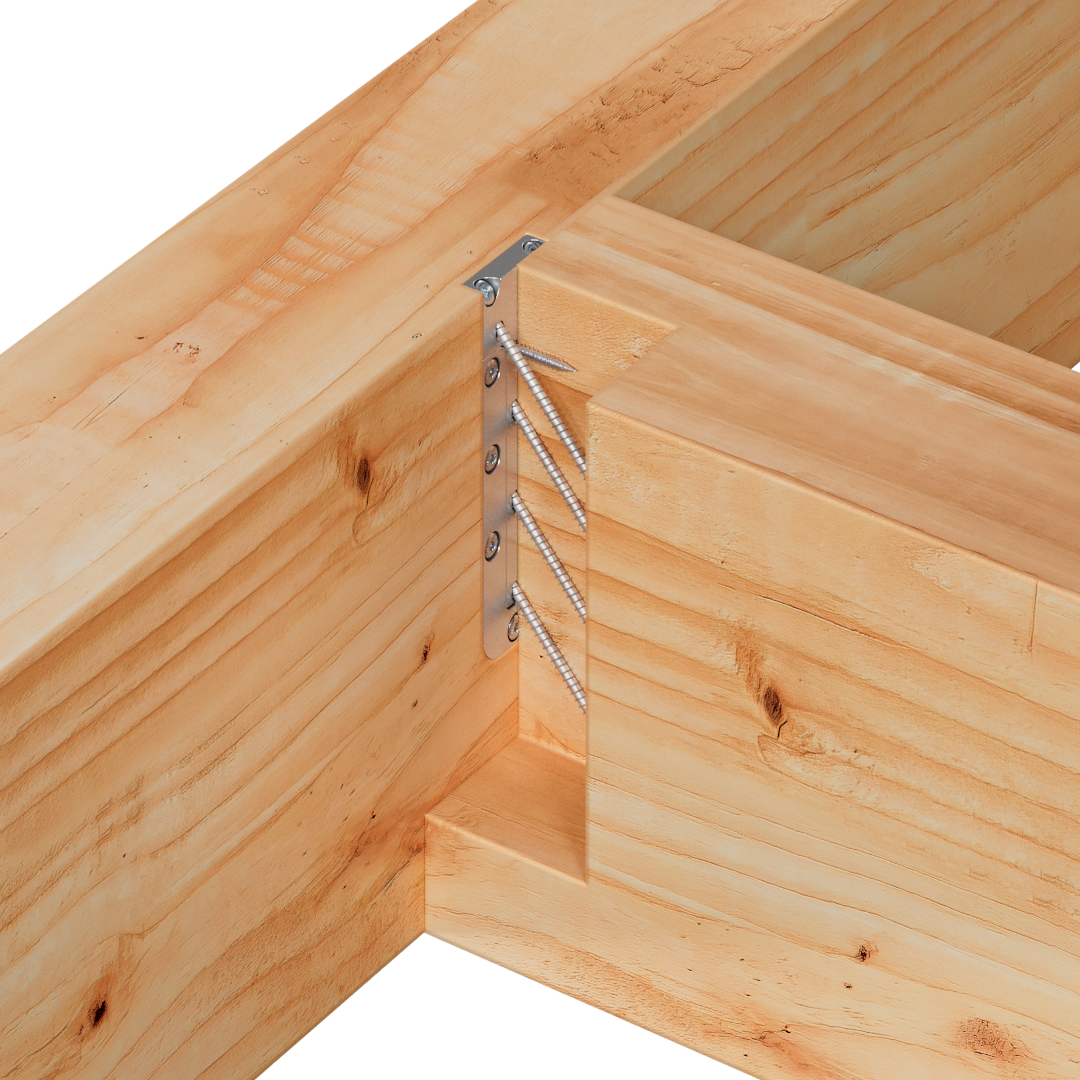

Solid timber

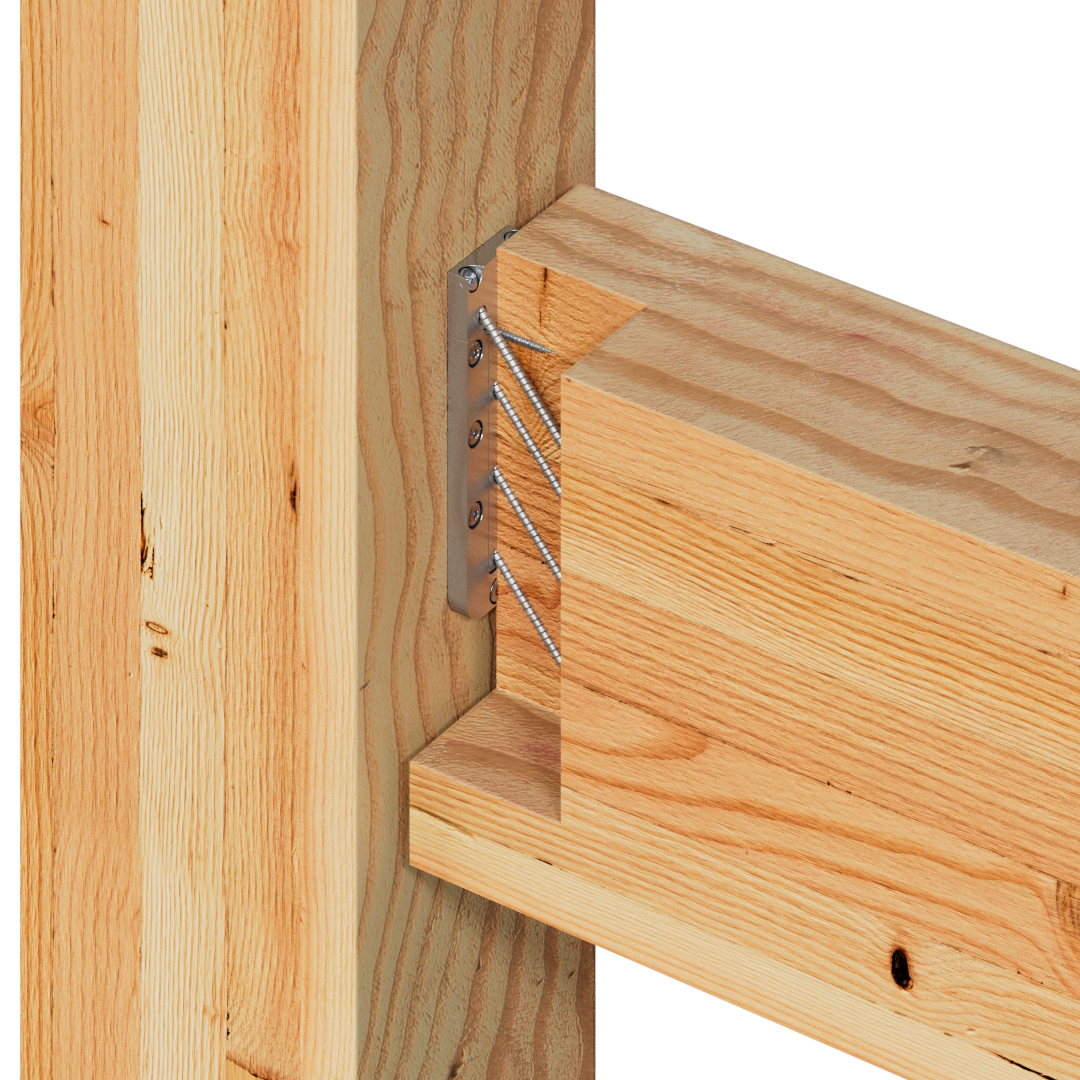

Glulam

For use with

Timber to timber connections only

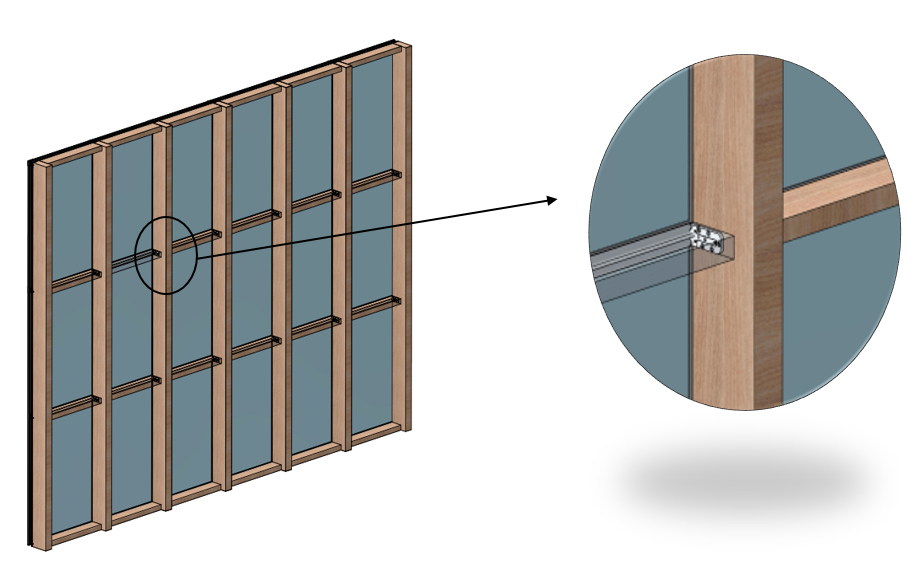

Facades

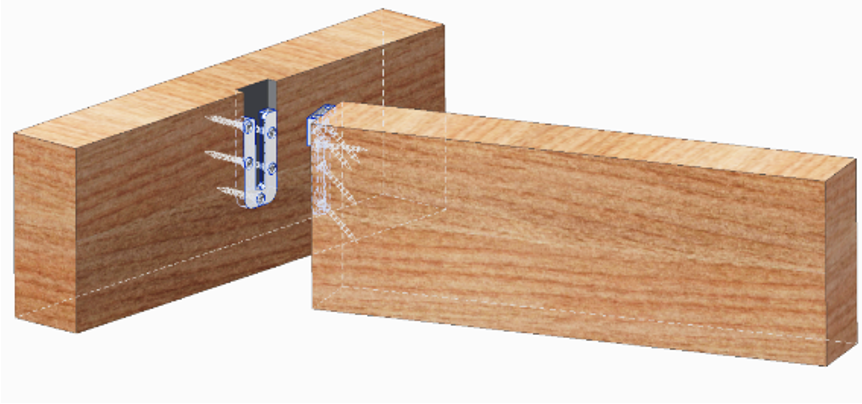

Installation

Mounting connectors EGCL is simplified by the use of a jig available on stock.

The slot can be routed by using a Ø16mm cutter with Ø30mm washer.

Technische gegevens

Afmetingen

Dimensions

Referentie	dimensions [mm]						no. of holes			Gewicht [kg]
	A	B	C	D	E	t₁ = t₂	U-part Ø5	T-part Ø4
	A	B	C	D	E	t₁ = t₂	90°	45°	90°

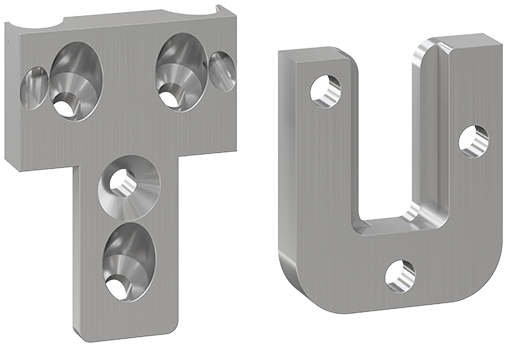

EGCL60	61	35	48	21	40	8	3	3 + 2	1	0.039
EGCL90	89	35	76	21	68	8	5	4 + 2	1	0.058

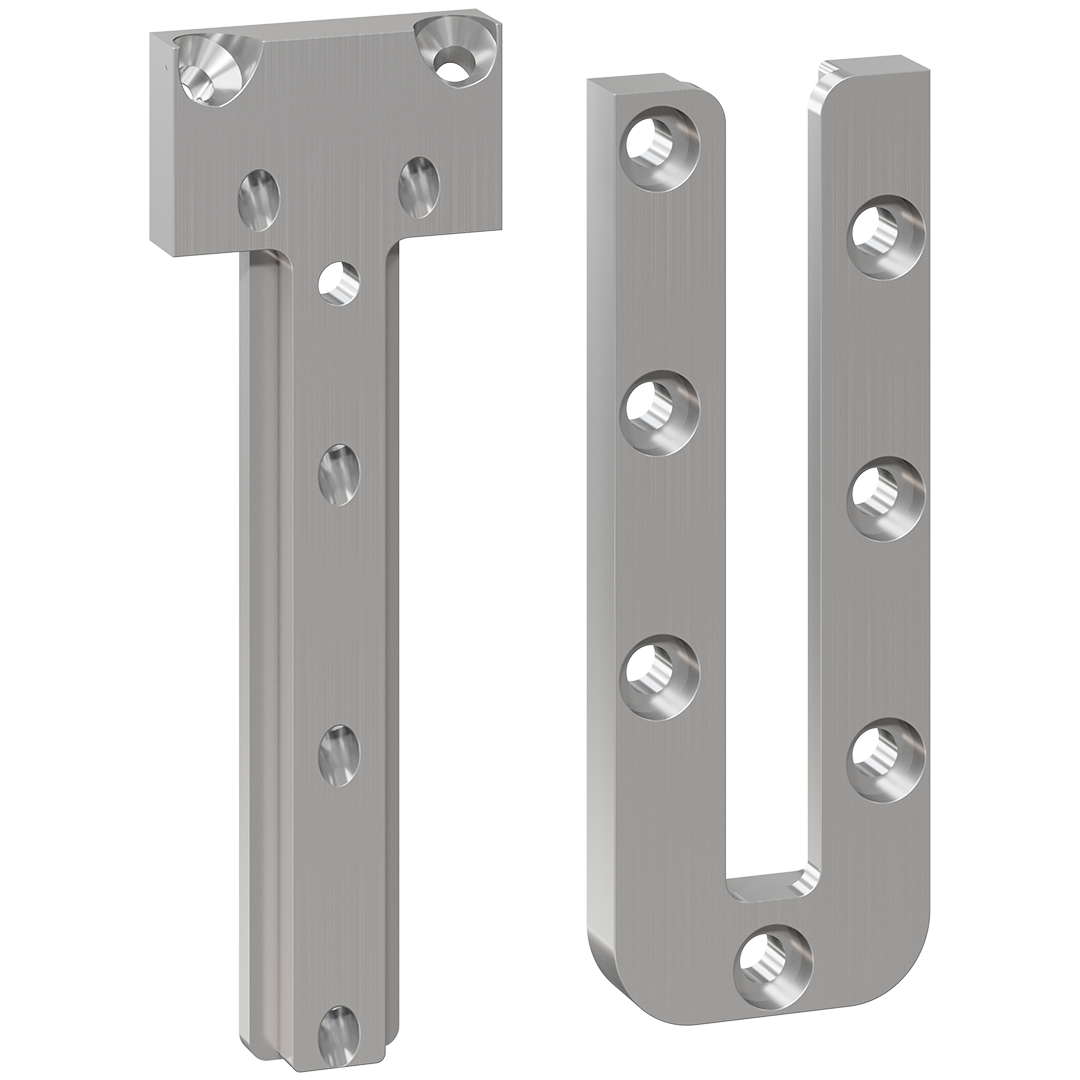

EGCL120	117	35	104	21	96	8	7	5 + 2	1	0.076

Except for the two optional uplift screws, fill all screw holes with screws.
To prevent rotation and to absorb uplifting, lateral and axial loads, two optional fully threaded screws are inserted from the joist through the connector into the header.

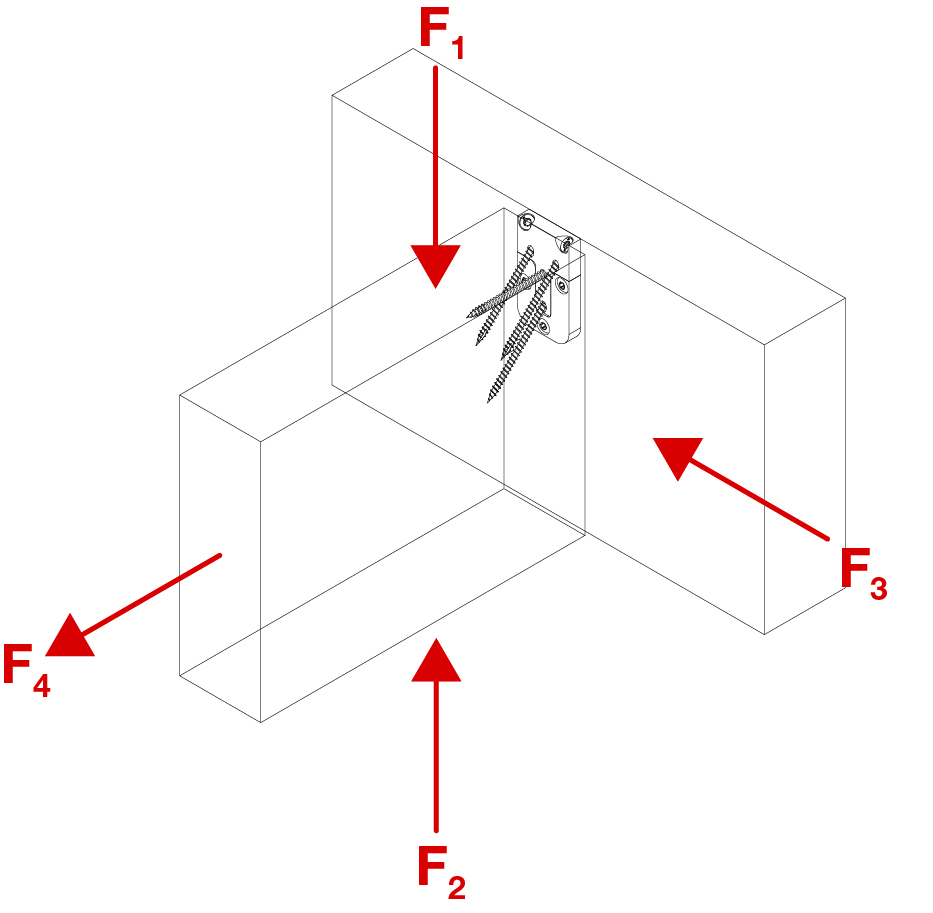

Characteristic capacities - Timber beam to timber beam

Referentie	Characteristic capacities - Timber Beam to timber beam
	Fastener qty			min. dimensions - Joist [mm]		Characteristic capacities - Timber C24 [kN]
	Header / post	Joist		b	h	R_1,k		R_2,k	R_3,k	R_4,k
	CSA 5,0x40	TTUFS 4,0x60 (No.77616)	TTUFS 4,0x60 (No.77616) - optional			Joist width
	CSA 5,0x40	TTUFS 4,0x60 (No.77616)	TTUFS 4,0x60 (No.77616) - optional			≥40mm	≥60mm
EGCL60	3	4	2	40	100	5.3	6.7	3.1	1.5	2.3
EGCL90	5	5	2	40	120	5.9	8.9	3.6	1.8	3.1
EGCL120	7	6	2	40	150	7.5	11.1	4.2	2.2	3.9

The specified values apply to the minimum dimensions of the joist.
For larger cross-sections and different screws, observe the specifications of the respective ETA.
If the force is only in the F1 direction, the two optional screws from above can be left out.

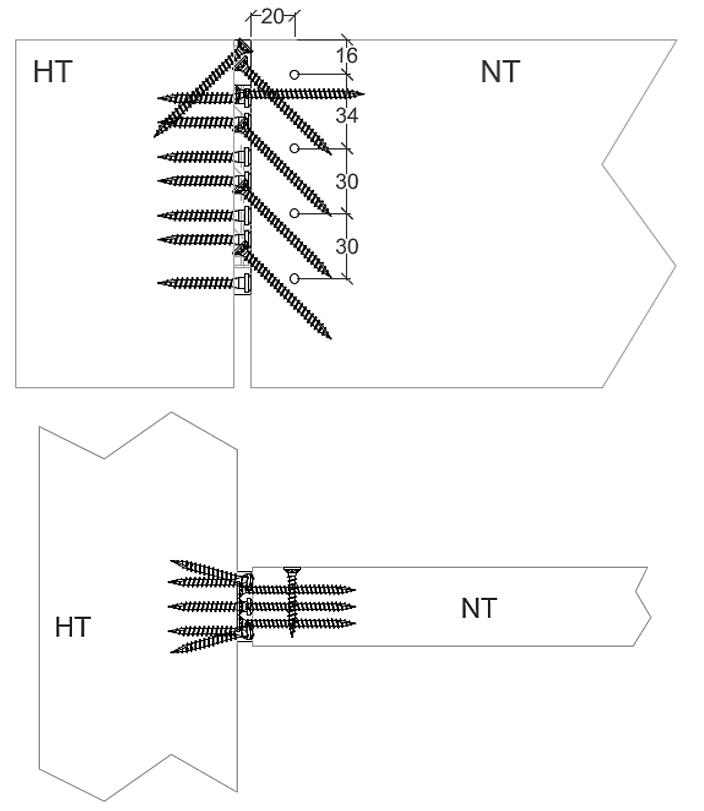

Characteristic capacities - R_3,k - incl. reinforcement screws

Referentie	Reinforcing screws in the joist Full thread screw 4,0x l ^*	Characteristic capacities - R_3,k[kN] - depending of min. dimensions of joist [mm]
		high	width
		high	40	50	60	70	80
EGCL60	3	100	2.6	3.3	3.9	4.6	5.2
EGCL90	3	120	3.1	3.9	4.7	5.2	6.2
EGCL120	4	150	3.9	4.9	5.9	6.8	7.8

* The reinforcement screws are countersunk screws with full thread and must be selected according to the joist width:

40-60 mm (joist width) = screw length max. 5 mm and l_g max. 10 mm shorter than joist width
70-80 mm (joist width) = screw length max. 10 mm and l_g max. 20 mm shorter than joist width

Installatie

Fasteners

On header, CSA Ø5mm according to ETA-04/0013: The CSA screws are screwed in perpendicular (90°) to the connector.
On joist, TTUFS Ø4mm (full thread) according to ETA-21/0670: The TTUFS screws are inserted 45° to the connector. Except one TTUFS in the middle of the joist (male part), which is inserted into the joist perpendicular to the connector, this one is also used as an installation help.
