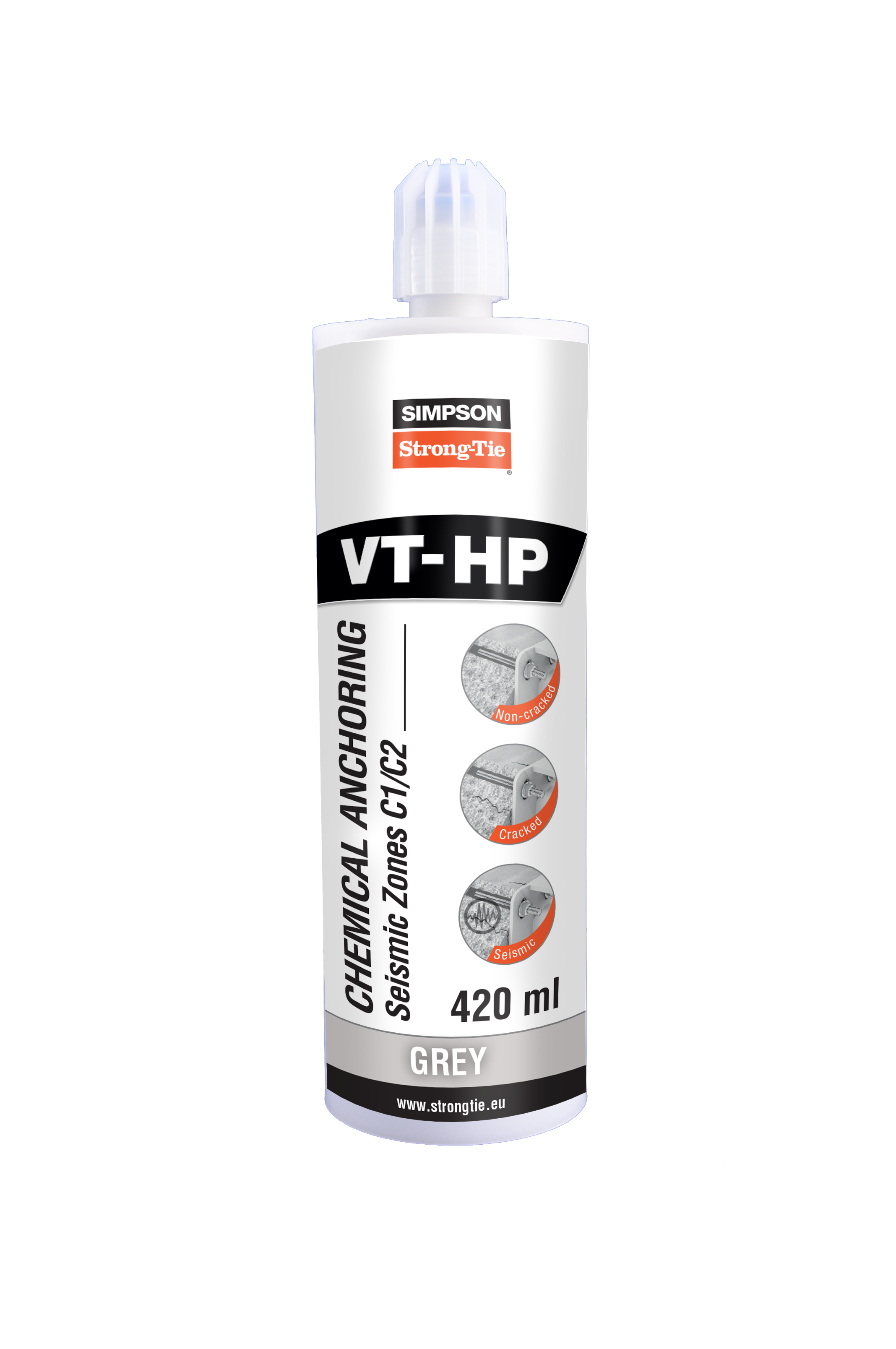

VT-HP®

Injection system for concrete

VT-HP heavy duty concrete resin for seismic zones C1 and C2 is recommended for fixing reinforcing bars and threaded rods in cracked and non-cracked concrete and C20/25 to C50/60.

CE-Markering
CE-Markering
ETA
ETA
Buiten
Buiten
Brand R 180
Brand R 180
Utilisable en milieu humide
Utilisable en milieu humide
Binner
Binner
Résistance aux gros chocs
Résistance aux gros chocs

Product Details

Afbeeldingen

Kenmerken

Overige

Technische gegevens

Références

ReferentieChemical fixings dimensions
Info product
Tun / DB nr.[mm]NOBB nr.Grey colorBeige colorInhoud[ml]Gewicht[kg]Verpakkingshoeveelheid[pcs]
VTHP420-EU--x-4200.79612

Design resistance – Tension – NRd [kN] – hef = 8d – Carbon steel 5.8

ReferentieChemical fixings Loads
Design resistance – hef = 8d – Carbon steel 5.8
Tension - NRd (1)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M84.34.54.64.710.711.111.611.8
VT-HP + LMAS M1077.37.57.716.717.418.118.4
VT-HP + LMAS M1211.111.511.912.224.125.12626.5
VT-HP + LMAS M1619.620.421.221.640.644.646.347.2
VT-HP + LMAS M2030.731.933.233.856.86972.373.7
VT-HP + LMAS M2444.24647.748.674.690.895.597.3
VT-HP + LMAS M2763.568.871.472.789.1105.8109.9111.9
VT-HP + LMAS M3074.484.988.289.8104.3117.6122.1124.3

Concrete :

1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Tension – NRd [kN] – hef = 12d – Carbon steel 5.8

ReferentieChemical fixings Loads
Design resistance - hef = 12d - Carbon steel 5.8
Tension - NRd (1)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M86.46.76.97.112121212
VT-HP + LMAS M1010.510.911.311.519.319.319.319.3
VT-HP + LMAS M1216.617.217.918.228282828
VT-HP + LMAS M1629.530.731.832.452525252
VT-HP + LMAS M2046.147.949.750.781.381.381.381.3
VT-HP + LMAS M2466.36971.672.9117.3117.3117.3117.3
VT-HP + LMAS M2799.2103.2107.1109.1152.6153.3153.3153.3
VT-HP + LMAS M30122.5127.4132.3134.7169.6176.3183.1186.5

Concrete :
1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Tension – NRd [kN] – hef = 8d – Stainless steel

ReferentieChemical fixings Loads
Design resistance – hef = 8d – Stainless steel
Tension - NRd (1)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M84.34.54.64.710.711.111.611.8
VT-HP + LMAS M1077.37.57.716.717.418.118.4
VT-HP + LMAS M1211.111.511.912.224.125.12626.5
VT-HP + LMAS M1619.620.421.221.640.644.646.347.2
VT-HP + LMAS M2030.731.933.260.856.86972.373.7
VT-HP + LMAS M2444.24647.748.674.690.895.597.3
VT-HP + LMAS M2763.568.871.472.780.480.480.480.4
VT-HP + LMAS M3074.484.988.289.898.398.398.398.3

Threaded rod type A4-70 for M≤24 and A4-50 for M>24

Concrete :
1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Tension – NRd [kN] – hef = 12d – Stainless steel

ReferentieChemical fixings Loads
Design resistance – hef = 12d – Stainless steel
Tension - NRd (1)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M86.46.76.97.113.913.913.913.9
VT-HP + LMAS M1010.510.911.311.521.921.921.921.9
VT-HP + LMAS M1216.617.217.918.231.631.631.631.6
VT-HP + LMAS M1629.530.731.832.458.858.858.858.8
VT-HP + LMAS M2046.147.949.791.291.491.491.491.4
VT-HP + LMAS M2466.36971.672.9132.1132.1132.1132.1
VT-HP + LMAS M2780.480.480.480.480.480.480.480.4
VT-HP + LMAS M3098.398.398.398.398.398.398.398.3

Threaded rod type A4-70 for M≤24 and A4-50 for M>24

Concrete :
1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Shear – VRd [kN] – hef = 8d – Carbon steel 5.8

ReferentieChemical fixings Loads
Design resistance – hef = 8d – Carbon steel 5.8
Shear - VRd (1-2)[kN]
Onbeschadigd betonGebarsten beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M87.27.27.27.27.27.27.27.2
VT-HP + LMAS M101212121212121212
VT-HP + LMAS M1216.816.816.816.816.816.816.816.8
VT-HP + LMAS M1631.231.231.231.231.231.231.231.2
VT-HP + LMAS M2048.848.848.848.848.848.848.848.8
VT-HP + LMAS M2470.470.470.470.470.470.470.470.4
VT-HP + LMAS M279292929292929292
VT-HP + LMAS M30112112112112112112112112

Concrete :
1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Shear – VRd [kN] – hef = 12d – Carbon steel 5.8

ReferentieChemical fixings Loads
Design resistance - hef = 12d - Carbon steel 5.8
Shear - VRd (1-2)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M87.27.27.27.27.27.27.27.2
VT-HP + LMAS M101212121212121212
VT-HP + LMAS M1216.816.816.816.816.816.816.816.8
VT-HP + LMAS M1631.231.231.231.231.231.231.231.2
VT-HP + LMAS M2048.848.848.848.848.848.848.848.8
VT-HP + LMAS M2470.470.470.470.470.470.470.470.4
VT-HP + LMAS M279292929292929292
VT-HP + LMAS M30112112112112112112112112

Concrete :
1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Shear – VRd [kN] – hef = 8d – Stainless steel

ReferentieChemical fixings Loads
Design resistance – hef = 8d – Stainless steel
Shear - VRd (1-2)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M88.38.38.38.38.38.38.38.3
VT-HP + LMAS M1012.812.812.812.812.812.812.812.8
VT-HP + LMAS M1219.219.219.219.219.219.219.219.2
VT-HP + LMAS M1635.335.335.335.335.335.335.335.3
VT-HP + LMAS M2055.155.155.155.155.155.155.155.1
VT-HP + LMAS M2479.579.579.579.579.579.579.579.5
VT-HP + LMAS M2748.348.348.348.348.348.348.348.3
VT-HP + LMAS M3058.858.858.858.858.858.858.858.8

Threaded rod type A4-70 for M≤24 and A4-50 for M>24

Concrete :
1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Shear – VRd [kN] – hef = 12d – Stainless steel

ReferentieChemical fixings Loads
Design resistance – hef = 12d – Stainless steel
Shear - VRd (1-2)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + LMAS M88.38.38.38.38.38.38.38.3
VT-HP + LMAS M1012.812.812.812.812.812.812.812.8
VT-HP + LMAS M1219.219.219.219.219.219.219.219.2
VT-HP + LMAS M1635.335.335.335.335.335.335.335.3
VT-HP + LMAS M2055.155.155.155.155.155.155.155.1
VT-HP + LMAS M2479.579.579.579.579.579.579.579.5
VT-HP + LMAS M2748.348.348.348.348.348.348.348.3
VT-HP + LMAS M3058.858.858.858.858.858.858.858.8

Threaded rod type A4-70 for M≤24 and A4-50 for M>24

Concrete :
1. The design loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).



Design resistance – Bending moment – MRd [Nm] – Concrete

ReferentieChemical fixings Loads
Design resistance – Bending moment – MRd[Nm]
Koolstofstaal 5,8Stainless steel A4-70
VT-HP + LMAS M815.216.7
VT-HP + LMAS M1029.633.3
VT-HP + LMAS M125241.7
VT-HP + LMAS M16132.8106.4
VT-HP + LMAS M20259.2359
VT-HP + LMAS M24448502.6
VT-HP + LMAS M27666.4349.6
VT-HP + LMAS M30898.4472.7

Design resistance – Tension – NRd [kN] – Seismic performance C1/C2 – Carbon steel 5.8

ReferentieChemical fixings Loads
Design resistance – Tension - NRd – Seismic performance C1/C2 - Carbon steel 5.8[kN]
Gescheurd beton C20/25
hₑf = 8dhₑf=12d
StaticCategory C1Category C2StaticCategory C1Category C2
VT-HP + LMAS M84.32.7-6.44-
VT-HP + LMAS M1074.3-10.56.5-
VT-HP + LMAS M1211.17.4416.611.26
VT-HP + LMAS M1619.613.27.129.519.810.7
VT-HP + LMAS M2030.720.711.246.13116.7
VT-HP + LMAS M2444.230.5-66.345.8-
VT-HP + LMAS M2763.545.8-99.268.7-
VT-HP + LMAS M3074.456.5-122.584.8-

Design resistance – Tension – NRd [kN] – Seismic performance C1/C2 – Stainless steel

ReferentieChemical fixings Loads
Design resistance – Tension - NRd – Seismic performance C1/C2 - Stainless steel[kN]
Gescheurd beton C20/25
hₑf = 8dhₑf=12d
StaticCategory C1Category C2StaticCategory C1Category C2
VT-HP + LMAS M84.32.7-6.44-
VT-HP + LMAS M1074.3-10.56.5-
VT-HP + LMAS M1211.17.4416.611.26
VT-HP + LMAS M1619.613.27.129.519.810.7
VT-HP + LMAS M2030.720.711.246.13116.7
VT-HP + LMAS M2444.230.5-66.345.8-
VT-HP + LMAS M2763.545.8-80.468.7-
VT-HP + LMAS M3074.456.5-98.384.8-

Threaded rod type A4-70 for M≤24 and A4-50 for M>24

Design resistance – Shear – VRd [kN] – Seismic performance C1/C2 – Carbon steel 5.8

ReferentieChemical fixings Loads
Design resistance – Shear - VRd – Seismic performance C1/C2 - Carbon steel 5.8[kN]
Gescheurd beton C20/25
hₑf=12dhₑf = 8d
StaticCategory C1Category C2StaticCategory C1Category C2
VT-HP + LMAS M87.22.5-7.22.3-
VT-HP + LMAS M10124.2-124.2-
VT-HP + LMAS M1216.85.9516.85.94.1
VT-HP + LMAS M1631.210.910.931.210.97.3
VT-HP + LMAS M2048.817.117.148.817.111.4
VT-HP + LMAS M2470.424.6-70.424.6-
VT-HP + LMAS M279232.2-9232.2-
VT-HP + LMAS M3011239.2-11239.2-

Design resistance – Shear – VRd [kN] – Seismic performance C1/C2 – Stainless steel

ReferentieChemical fixings Loads
Design resistance – Shear - VRd – Seismic performance C1/C2 - Stainless steel[kN]
Gescheurd beton C20/25
hₑf=12dhₑf = 8d
StaticCategory C1Category C2StaticCategory C1Category C2
VT-HP + LMAS M88.32.9-8.32.3-
VT-HP + LMAS M1012.84.5-12.84.4-
VT-HP + LMAS M1219.26.75.819.26.74.1
VT-HP + LMAS M1635.312.310.935.312.37.3
VT-HP + LMAS M2055.119.317.155.119.311.4
VT-HP + LMAS M2479.527.8-79.527.8-
VT-HP + LMAS M2748.316.9-48.316.9-
VT-HP + LMAS M3058.829.4-58.829.4-

Threaded rod type A4-70 for M≤24 and A4-50 for M>24

Design resistance – Tension – NRd [kN] – hef = 8d – Carbon steel 5.8 – Rebar

ReferentieChemical fixings Loads
Design resistance – hef = 8d – Carbon steel 5.8
Tension - NRd (1)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + Ø84.34.54.64.710.711.111.611.8
VT-HP + Ø1077.37.57.716.717.418.118.4
VT-HP + Ø1211.111.511.912.224.125.12626.5
VT-HP + Ø141515.616.216.532.834.135.436.1
VT-HP + Ø1619.620.421.221.640.644.646.347.2
VT-HP + Ø2030.731.933.233.856.86972.373.7
VT-HP + Ø24--------
VT-HP + Ø254849.951.852.879.496.5103.6105.5
VT-HP + Ø27--------
VT-HP + Ø2867.17476.878.294.1113.8118.2120.4
VT-HP + Ø30--------
VT-HP + Ø3281.996.6100.3102.2114.9126.3131.2133.6

Design resistance – Tension – NRd [kN] – hef = 12d – Carbon steel 5.8 – Rebar

ReferentieChemical fixings Loads
Design resistance - hef = 12d - Carbon steel 5.8
Tension - NRd (1)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + Ø86.46.76.97.116.116.717.417.7
VT-HP + Ø1010.510.911.311.525.126.127.127.6
VT-HP + Ø1216.617.217.918.236.237.639.139.8
VT-HP + Ø1422.623.524.424.849.251.253.254.2
VT-HP + Ø1629.530.731.832.464.366.969.570.7
VT-HP + Ø2046.147.949.750.7100.5104.5108.5110.5
VT-HP + Ø24--------
VT-HP + Ø257274.877.779.2143.9149.7155.4158.3
VT-HP + Ø27--------
VT-HP + Ø28106.7110.9115.2117.3164.1170.7177.2180.5
VT-HP + Ø30--------
VT-HP + Ø32139.3144.9150.5153.3182.2189.5196.8200.4

Design resistance – Shear – VRd [kN] – hef = 8d – Carbon steel 5.8 – Rebar

ReferentieChemical fixings Loads
Design resistance – hef = 8d – Carbon steel 5.8
Shear - VRd (1-2)[kN]
Onbeschadigd betonGebarsten beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + Ø89.39.39.39.38.68.99.39.3
VT-HP + Ø1014.714.714.714.714.714.714.714.7
VT-HP + Ø1220.720.720.720.720.720.720.720.7
VT-HP + Ø142828282828282828
VT-HP + Ø163636363636363636
VT-HP + Ø2056.756.756.756.756.756.756.756.7
VT-HP + Ø24--------
VT-HP + Ø2588.788.788.788.788.788.788.788.7
VT-HP + Ø27--------
VT-HP + Ø28110.7110.7110.7110.7110.7110.7110.7110.7
VT-HP + Ø30--------
VT-HP + Ø32144.7144.7144.7144.7144.7144.7144.7144.7

Design resistance – Shear – VRd [kN] – hef = 12d – Carbon steel 5.8 – Rebar

ReferentieChemical fixings Loads
Design resistance - hef = 12d - Carbon steel 5.8
Shear - VRd (1-2)[kN]
Gebarsten betonOnbeschadigd beton
C20/25C30/37C40/50C50/60C20/25C30/37C40/50C50/60
VT-HP + Ø89.39.39.39.39.39.39.39.3
VT-HP + Ø1014.714.714.714.714.714.714.714.7
VT-HP + Ø1220.720.720.720.720.720.720.720.7
VT-HP + Ø142828282828282828
VT-HP + Ø163636363636363636
VT-HP + Ø2056.756.756.756.756.756.756.756.7
VT-HP + Ø24--------
VT-HP + Ø2588.788.788.788.788.788.788.788.7
VT-HP + Ø27--------
VT-HP + Ø28110.7110.7110.7110.7110.7110.7110.7110.7
VT-HP + Ø30--------
VT-HP + Ø32144.7144.7144.7144.7144.7144.7144.7144.7

Design resistance – Bending moment – MRd [Nm] – Rebar

ReferentieChemical fixings Loads
Design resistance – Bending moment – MRd - Rebar[Nm]
Koolstofstaal 5,8
VT-HP + Ø822
VT-HP + Ø1043.3
VT-HP + Ø1274.7
VT-HP + Ø14118.7
VT-HP + Ø16176.7
VT-HP + Ø20345.3
VT-HP + Ø24-
VT-HP + Ø25674.7
VT-HP + Ø27-
VT-HP + Ø28948
VT-HP + Ø30-
VT-HP + Ø321415.3

Design resistance – Tension – NRd [kN] – Seismic performance C1 – Carbon steel 5.8 – Rebar

ReferentieChemical fixings Loads
Design resistance – Tension – NRd – Seismic performance C1 – Carbon steel 5.8[kN]
Gescheurd beton C20/25
hₑf = 8dhₑf=12d
StaticCategory C1StaticCategory C1
VT-HP + Ø84.32.76.44
VT-HP + Ø1074.310.56.5
VT-HP + Ø1211.17.416.611.2
VT-HP + Ø141510.122.615.2
VT-HP + Ø1619.613.229.519.8
VT-HP + Ø2030.720.746.131
VT-HP + Ø24----
VT-HP + Ø254833.17249.7
VT-HP + Ø27----
VT-HP + Ø2867.149.2106.773.9
VT-HP + Ø30----
VT-HP + Ø3281.964.3139.396.5

Design resistance – Shear – VRd [kN] – Seismic performance C1 – Carbon steel 5.8 – Rebar

ReferentieChemical fixings Loads
Design resistance – Shear – VRd – Seismic performance C1 – Carbon steel 5.8[kN]
Gescheurd beton C20/25
hₑf=12dhₑf = 8d
StaticCategory C1StaticCategory C1
VT-HP + Ø89.36.38.64.6
VT-HP + Ø1014.71014.78.8
VT-HP + Ø1220.714.220.714.2
VT-HP + Ø142819.42819.4
VT-HP + Ø1636.725.336.725.3
VT-HP + Ø2057.339.657.339.6
VT-HP + Ø24----
VT-HP + Ø259061.99061.9
VT-HP + Ø27----
VT-HP + Ø28113.377.6113.377.6
VT-HP + Ø30----
VT-HP + Ø32147.3101.3147.3101.3

permissible loads

ReferentieChemical fixings Loads
Permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings in non-cracked concrete C20/25 with an embedment depth of hef = 8dDesign resistance – Bending moment – MRd[Nm]
steel 5.8stainless steel A4-70Koolstofstaal 5,8Stainless steel A4-70
Nzul[kN]Vzul[kN]Nzul[kN]Vzul[kN]
VT-HP + M87.75.17.7610.910.9
VT-HP + M10128.6129.221.121.1
VT-HP + M1217.21217.213.737.137.1
VT-HP + M162922.3292594.994.9
VT-HP + M2040.634.940.639.4185.1185.1
VT-HP + M2453.350.353.356.8320320
VT-HP + M2763.665.757.434.5476476
VT-HP + M3074.58070.242641.7641.7
  1. When interacting tensile and shear loads (lever arm) as well as with anchor groups and / or edge influence, a design according to EN 1992-4 or EOTA TR 055 must be carried out taking into account the assessment ETA-19/0419.
  2. The load data take into account the partial safety factors of the resistances as specified in the ETA assessment as well as a partial safety factor of the effects of γF = 1.4. The values ​​given are based on unreinforced or normally reinforced concrete with a spacing of the reinforcing bars s ≥ 15 cm or s ≥ 10 cm with a reinforcing bar diameter ds ≤ 10 mm.
  3. Load specifications apply to a temperature range from -40 ° C to + 40 ° C (max. Short-term temperature + 40 ° C and maximum long-term temperature + 24 ° C)

permissible loads - seismic

ReferentieChemical fixings Loads
Permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings in cracked concrete C20/25 with an embedment depth of hef = 8dDesign resistance – Bending moment – MRd[Nm]
without seismicseismic category C1seismic category C2Koolstofstaal 5,8Stainless steel A4-70
steel 5.8stainless steel A4-70stainless steel A4-70 - for seismic C1steel 5.8 - for seismic C1stainless steel A4-70 - for seismic C2steel 5.8 - for seismic C2
Nzul[kN]Vzul[kN]Nzul[kN]Vzul[kN]Nseis,C1[kN]Vseis,C1[kN]Nseis,C1[kN]Vseis,C1[kN]Nseis,C2[kN]Vseis,C2[kN]Nseis,C2[kN]Vseis,C2[kN]
VT-HP + M83.15.13.161.91.61.91.6----10.910.9
VT-HP + M1058.659.23.13.23.13----21.121.1
VT-HP + M127.9127.913.75.34.85.34.22.92.92.92.937.137.1
VT-HP + M161422.31425.29.48.89.47.85.15.25.15.294.994.9
VT-HP + M2021.934.921.939.414.813.814.812.288.188.1185.1185.1
VT-HP + M2431.650.331.656.821.819.921.817.6----320320
VT-HP + M2745.465.745.434.532.712.132.723----476476
VT-HP + M3053.18053.14240.42140.428----641.7641.7

DE-Masonry -1) : Design resistance – Tension – NRd [kN] and Shear VRd [kN]

ReferentieChemical fixings Loads
DE - Masonry
1) permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings
inbouwdiepte hef[mm]Tension - NRd (1)[kN]Shear - VRd (1-2)[kN]
Porenbeton AAC 6Kalksand - Vollstein KS-NFPorenbeton AAC 6Kalksand - Vollstein KS-NF
VT-HP + M8801.31.830.8
VT-HP + M109021.850.8
VT-HP + M121002.51.850.8
VT-HP + M161003.31.450.6

DE-Masonry -2) : Design resistance – Tension – NRd [kN] and Shear VRd [kN]

ReferentieChemical fixings Loads
DE - Masonry
2) permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings
inbouwdiepte hef[mm]Tension - NRd (1)[kN]Shear - VRd (1-2)[kN]
Kalksand - Lochstein KSL-3DFKalksand - Lochstein KSL-12DFKalksand - Lochstein KSL 3DFKalksand - Lochstein KSL-12DF
VT-HP + M8801.30.241,0 (0,36)*1
VT-HP + M108520.241,6 (0,6)*2.2
VT-HP + M12852.50.61,6 (0,6)*2.2
VT-HP + M161303.311,6 (0,6)*2.2

* Values ​​in brackets apply to shear loads in the direction of the component edge.

DE-Masonry -3) : Design resistance – Tension – NRd [kN] and Shear VRd [kN]

ReferentieChemical fixings Loads
DE - Masonry
3) permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings
inbouwdiepte hefTension - NRd (1)[kN]Shear - VRd (1-2)[kN]
Leichtbeton- VollsteinVollziegelLeichtbeton- VollsteinVollziegel
VT-HP + M8801.21.41.21.4
VT-HP + M10901.21.41.21.4
VT-HP + M121001.21.61.21.4
VT-HP + M161001.21.61.22.2

DE-Masonry -4) : Design resistance – Tension – NRd [kN] and Shear VRd [kN]

ReferentieChemical fixings Loads
DE - Masonry
4) permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings
inbouwdiepte hefTension - NRd (1)[kN]Shear - VRd (1-2)[kN]
Hochlochziegel HLz-16DFHochlochziegel Porotherm/HomebrickHochlochziegel BGV ThermoHochlochziegel HLz-16DFHochlochziegel Porotherm/HomebrickHochlochziegel BGV Thermo
VT-HP + M88010.40.2410.80.8
VT-HP + M108510.40.241.80.80.8
VT-HP + M128510.40.24211
VT-HP + M161301.40.50.482.411

DE-Masonry -5) : Design resistance – Tension – NRd [kN] and Shear VRd [kN]

ReferentieChemical fixings Loads
DE - Masonry
5) permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings
inbouwdiepte hefTension - NRd (1)[kN]Shear - VRd (1-2)[kN]
Hochlochziegel CalibricHochlochziegel UrbanicHochlochziegel Brique creuseHochlochziegel CalibricHochlochziegel UrbanicHochlochziegel Brique creuse
VT-HP + M8800.40.50.241.21.60.36
VT-HP + M10850.40.50.241.62.20.36
VT-HP + M12850.40.50.242.43.40.36
VT-HP + M161300.50.60.242.43.40.36

DE-Masonry -6) : Design resistance – Tension – NRd [kN] and Shear VRd [kN]

ReferentieChemical fixings Loads
DE - Masonry
6) permissible tension- and shearloads for a single anchor1)2)3) without effects of distances and spacings
inbouwdiepte hefTension - NRd (1)[kN]Shear - VRd (1-2)[kN]
Hochlochziegel Blocchi LeggeriHochlochziegel Doppio UniHochlochziegel Bloc creuxHochlochziegel Blocchi LeggeriHochlochziegel Doppio UniHochlochziegel Bloc creux
VT-HP + M8800.20.20.480.80.61.2
VT-HP + M10850.20.20.480.80.61.2
VT-HP + M12850.20.20.480.80.61.2
VT-HP + M161300.20.20.480.80.61.2

MAUERWERK

1) In the case of interaction of tensile and shear loads (lever arm) as well as anchor groups and / or edge influence, a dimensioning according to EOTA TR 054, dimensioning method A, taking into account the evaluation ETA-19/0765 to perform.


2) The load information takes into account the partial safety factors of the resistances given in ETA-19/0765 as well as a partial safety factor of the actions of γF = 1.4 and apply to the use category d / d (dry) and a strength class of the anchor rod ≥ 5.6.

3) Load specifications apply to a temperature range from -40 ° C to + 40 ° C (max. Short-term temperature + 40°C and maximal long-term temperature +24°C)


Installatie

Installatie

Curring Schedule

Temperature of the anchorage base

Tbase material

Working time (Gel time)

tgel

Curing time (in dry concrete)

tcure, dry

Curing time (in wet concrete)

tcure, wet

0°C ≤ Tbase material ≤ +4°C 45 min 7 h 14 h
4°C ≤ Tbase material ≤ +9°C 25 min 2 h 4 h
10°C ≤ Tbase material ≤ +19°C 15 min 80 min 2h40 min
20°C ≤ Tbase material ≤ +29°C 6 min 45 min 1h30
30°C ≤ Tbase material ≤ +34°C 4 min 25 min 50 min
35°C ≤ Tbase material ≤ +39°C 2 min 20 min  40 min
+40°C 1,5 min 15 min 30 min



• Manual Air Cleaning (MAC) for all drill hole diameters d0 ≤ 24 mm and drill holl depth h0 ≤ 10d :
          4x blowing (hand pump)
          4x brushing
          4x blowing (Hand pump)

• Compressed Air Cleaning (CAC) for all drill hole diameters d0 and drill hole depths :
          2x blowing (min. 6 bar - oil free compressed air)
          2x brushing
          2x blowing (min. 6 bar - oil free compressed air)

• Cartridge temperature (Bond material) : +5°C to +40°C



Installation parameters – Concrete

ReferentieChemical fixings Installation data
Installation parameters – Concrete
Boorgat-∅[mm]Maximum diameter te bevestigen bouwdeel[mm]Drilling depth (8d)[mm]Drilling depth (12d)[mm]SleutelwijdteAandraaimoment[Nm]
VT-HP + LMAS M810964961310
VT-HP + LMAS M101212801201720
VT-HP + LMAS M121414961441940
VT-HP + LMAS M1618181281922480
VT-HP + LMAS M20242216024030120
VT-HP + LMAS M24282619228836160
VT-HP + LMAS M27283021632441180
VT-HP + LMAS M30283324036046200

Spacing, edge distances and member thickness – Concrete

ReferentieChemical fixings Installation data
Spacing, edge distance and member thickness - Concrete
Effective embedment depth (8d)[mm]Characteristic spacing for hef,8d[mm]Characteristic edge distance for hef,8d[mm]Min. member thickness for hef,8d[mm]Effective embedment depth (12d)[mm]Characteristic spacing for hef,12d[mm]Characteristic edge distance for hef,12d[mm]Min. member thickness for hef,12d[mm]Min. hartafstand[mm]Min. randafstand[mm]
12d[mm]12d[mm]
VT-HP + LMAS M86419296100962881441264040
VT-HP + LMAS M10802401201101203601801505050
VT-HP + LMAS M12962881441261444322161746060
VT-HP + LMAS M161283841921581925762882228080
VT-HP + LMAS M20160480240190240720360270100100
VT-HP + LMAS M24192576288222288864432318120120
VT-HP + LMAS M27216648324246324972486354135135
VT-HP + LMAS M302407203602703601060540390150150

Installation parameters – Rebar

ReferentieChemical fixings Installation data
Installation parameters – Rebar
Boorgat-∅[mm]Drilling depth (8d)[mm]Drilling depth (12d)[mm]
VT-HP + Ø8126496
VT-HP + Ø101480120
VT-HP + Ø121696144
VT-HP + Ø1418112168
VT-HP + Ø1620128192
VT-HP + Ø2024160240
VT-HP + Ø24---
VT-HP + Ø2532200300
VT-HP + Ø27---
VT-HP + Ø2835224336
VT-HP + Ø30---
VT-HP + Ø3240256384

Spacing, edge distances and member thickness – Rebar

ReferentieChemical fixings Installation data
Spacing, edge distance and member thickness – Rebar
Effective embedment depth (8d)[mm]Characteristic spacing for hef,8d[mm]Characteristic edge distance for hef,8d[mm]Min. member thickness for hef,8d[mm]Effective embedment depth (12d)[mm]Characteristic spacing for hef,12d[mm]Characteristic edge distance for hef,12d[mm]Min. member thickness for hef,12d[mm]Min. hartafstand[mm]Min. randafstand[mm]
VT-HP + Ø86419296100962881441264040
VT-HP + Ø10802401201101203601801505050
VT-HP + Ø12962881441281444322161766060
VT-HP + Ø141123361681481685042522047070
VT-HP + Ø161283841921681925762882328080
VT-HP + Ø20160480240208240720360288100100
VT-HP + Ø24----------
VT-HP + Ø25200600300264300900450364125125
VT-HP + Ø27----------
VT-HP + Ø282246723352943361008504406140140
VT-HP + Ø30----------
VT-HP + Ø322567683843363841152576464160160

embedment depth

Afmetingen

ReferentieChemical fixings Installation data
inbouwdiepte[mm]
hef,minhef,maxhef = 8d
VT-HP + M86016064
VT-HP + M106020080
VT-HP + M127024096
VT-HP + M1680320128
VT-HP + M2090400160
VT-HP + M2496480192
VT-HP + M27108540216
VT-HP + M30120600240

Installation parameters – cracked concrete C20/25

ReferentieChemical fixings Installation data
Spacing, edge distance and member thickness4) non-cracked concrete C20/25
embedment depth hef = 8d
Kenmerkende afstand - scr,N[mm]min. afstand - smin[mm]Kenmerkende randafstand - ccr,N[mm]min. randafstand - cmin[mm]Minimale dikte van de elementen - hmin[mm]
VT-HP + M8192409640100
VT-HP + M102405012050110
VT-HP + M122886014460126
VT-HP + M163848019280164
VT-HP + M20480100240100208
VT-HP + M24576120288120248
VT-HP + M27648135324135280
VT-HP + M30720150360150310

4) installation characteristics of reinforcing steel, see evaluation ETA-19/0419

mounting data

ReferentieChemical fixings Installation data
Installatieparameters
Ø boren - d₀[mm]boordiepte (zyl.) - h0 ≥[mm]Max. diameter bevestigingsgat - df ≤[mm]Sleutelmaat DIN 934 (ISO 4032) - SW[kN]Maximaal aanhaalmoment - Tinst,max
[Nm]
VT-HP + M8106491310
VT-HP + M1012801217 (16)20
VT-HP + M1214961419 (18)40
VT-HP + M1618128182480
VT-HP + M20241602230120
VT-HP + M24281922636160
VT-HP + M27322163041180
VT-HP + M30352403346200

4) installation characteristics of reinforcing steel, see evaluation ETA-19/0419

Certificering

Prestatieverklaring (DoP)

Geen geschiedenis beschikbaar

Europese technische beoordeling (ETA)

Geen geschiedenis beschikbaar

Online kopen

Contact

Simpson Strong-Tie Frankrijk

Simpson Strong-Tie

ZAC des Quatre Chemins
85400 Sainte-Gemme-la-Plaine
Frankrijk
