HDCLT

Concealed solution for connecting CLT walls to concrete foundations.

High strength, low profile, seamlessly secure.

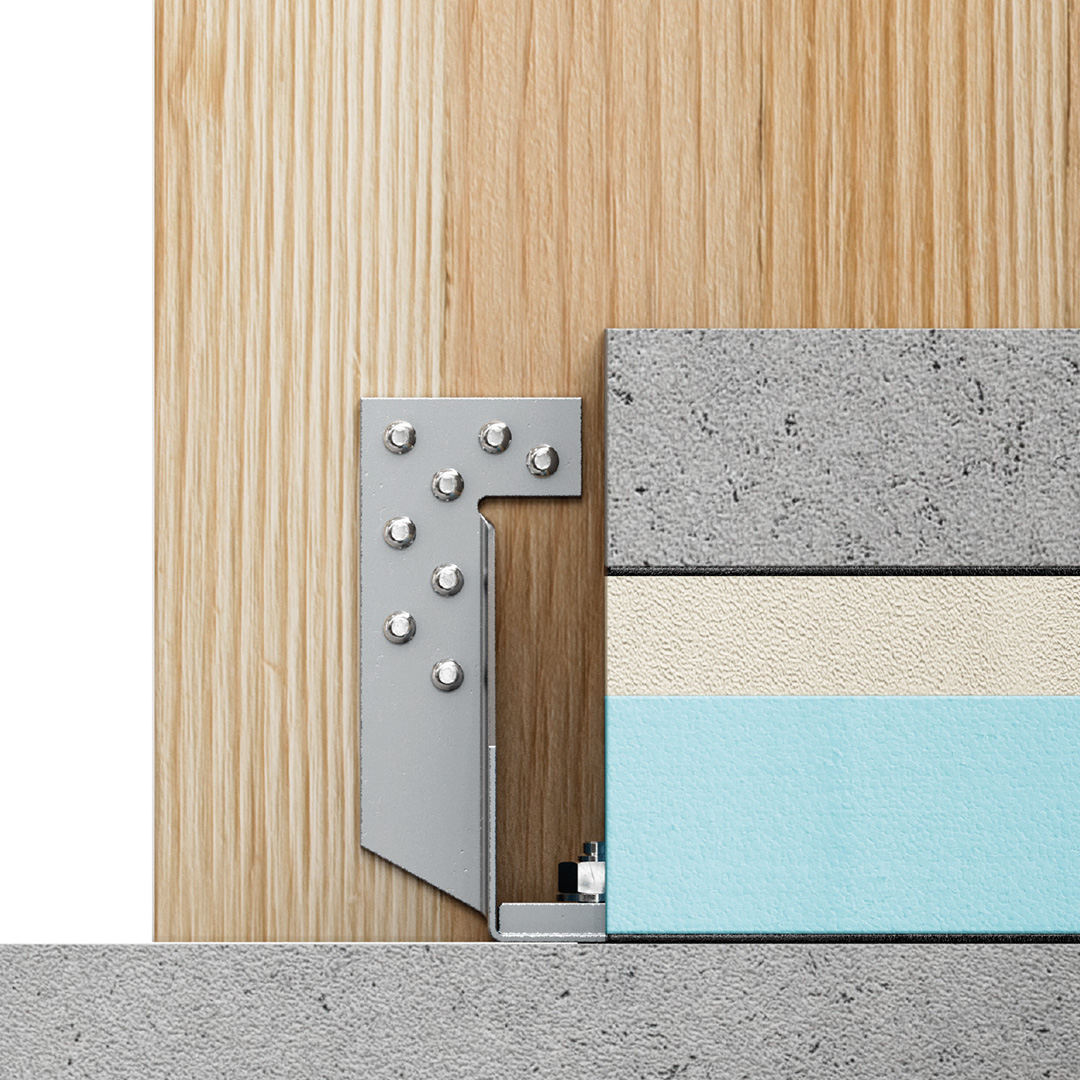

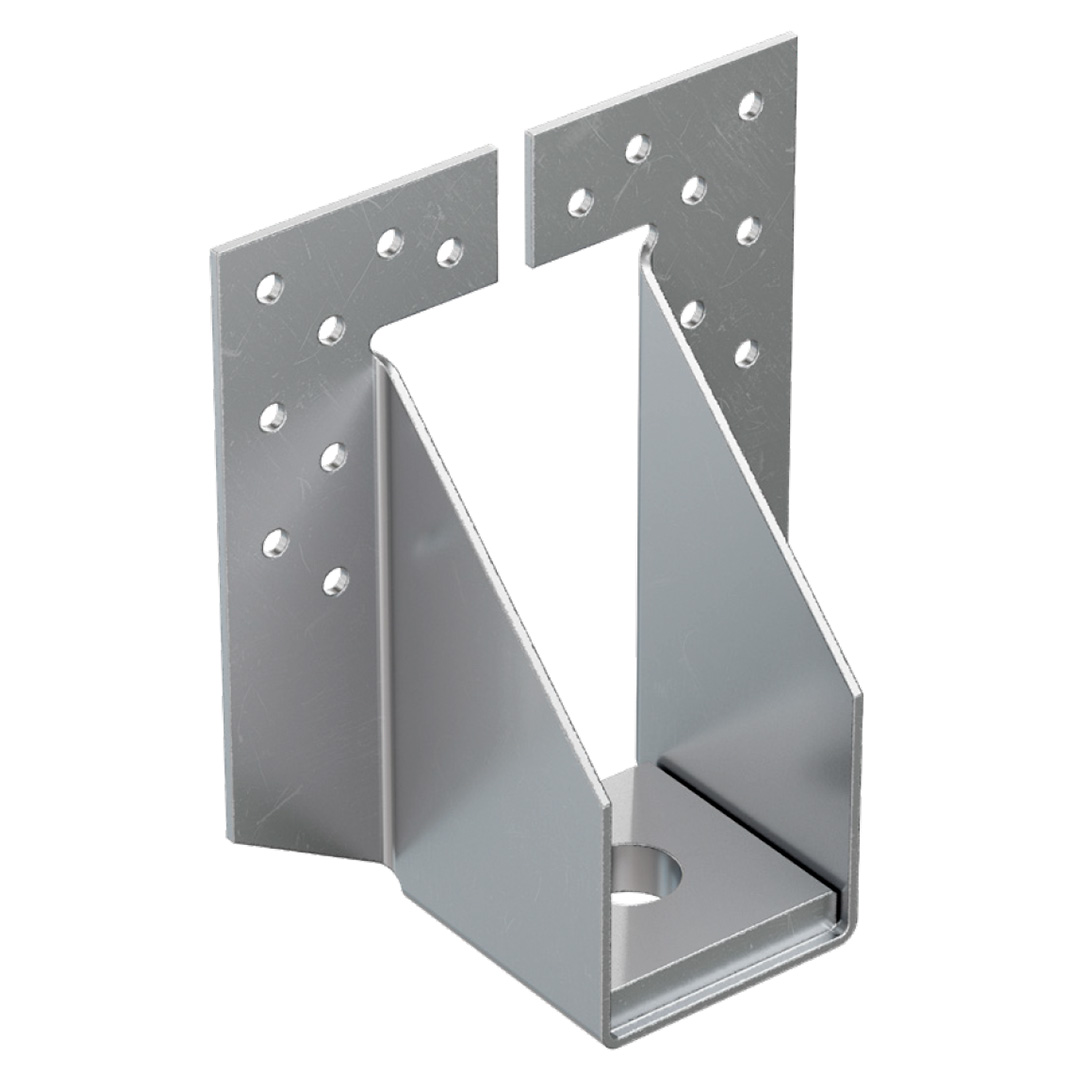

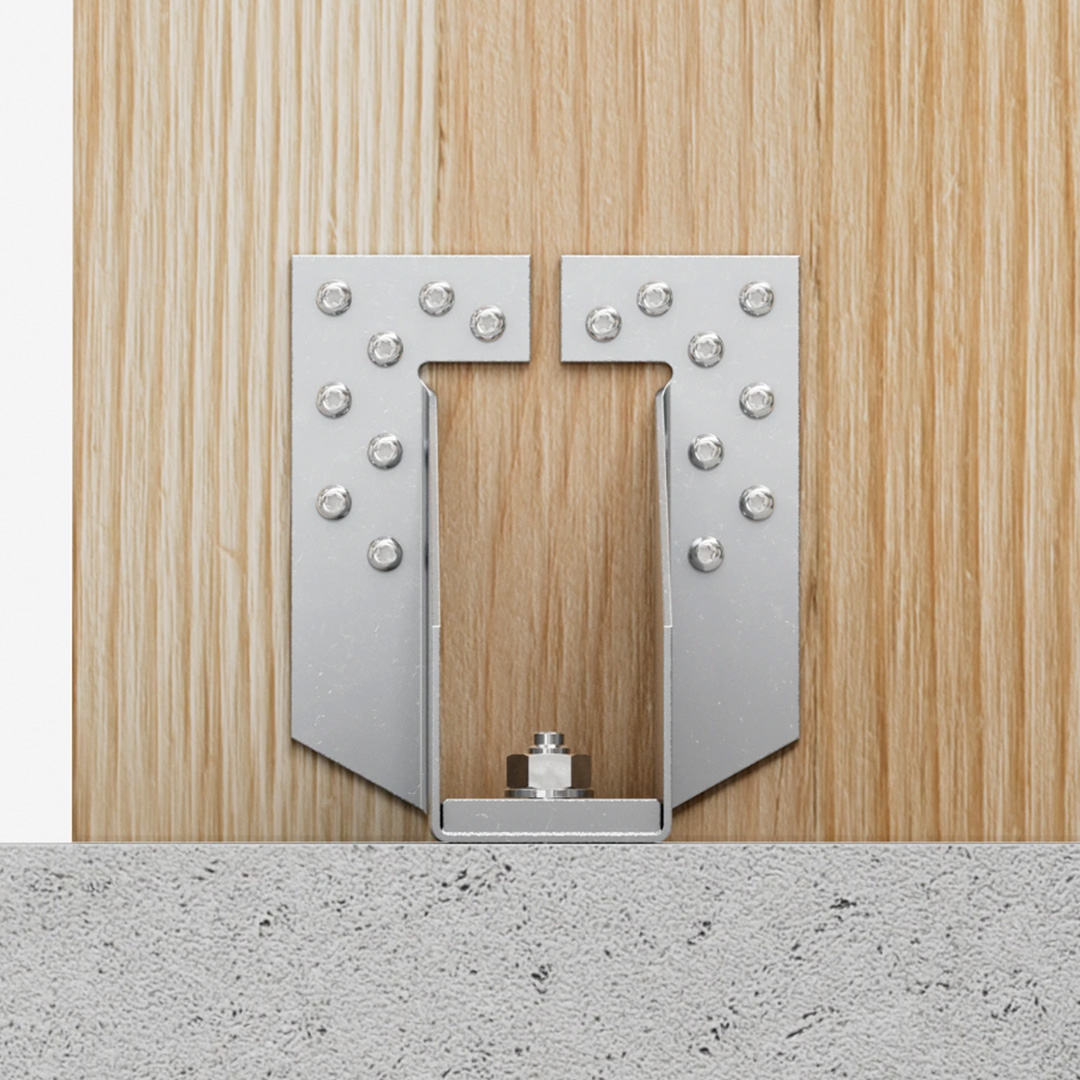

Designed specifically for connecting cross-laminated timber (CLT) wall panels to concrete foundations: the HDCLT tension tie provides a robust design uplift capacity of up to 18.6 kN, yet due to it’s low profile of just 140 mm, remains completely concealed within the subfloor and floor covering layers.

To help reduce installation time, the fastener configuration has been optimised for maximum performance with the most efficient screw quantity.

HDCLT includes an 8mm thick washer integrated with the tension tie seat, which provides additional strength where it is most needed. The profile design permits up to 25mm concrete-CLT panel interlayer thickness.

CE-Markering
CE-Markering
ETA
ETA
Nieuw
Nieuw
Gegalvaniseerd staal Z275
Gegalvaniseerd staal Z275
Gebruiksklasse 2
Gebruiksklasse 2
Binner
Binner

Product Details

Afbeeldingen

Kenmerken

Material

Tension Tie: S 250 GD + Z 275 according to DIN EN
Washer: S235JR according to EN 10025

Corrosion Protection:

275 g/m2 galvanized on both sides 20mm
washer: ~ 55µm according to EN1461



Benefits

  • High-strength: up to 18.6 kN design uplift resistance

  • Low height: completely concealed within the floor structure

  • Flexible: allows up to 25mm tolerance to ensure optimal fastener edge distance where a concrete-CLT interlayer exists.

Toepassing

Suitable For

Supporting Member:

  • CLT, Concrete, Steel, Solid Timber

Supported Member:

  • CLT, Solid wood, Engineered Timber

Technische gegevens

Product Dimensions

Afmetingen

ReferentieVerbinder afmetingen
Afmetingen[mm]flens BBoorgaten in dragerOverig
A[mm]B[mm]C[mm]Dikte[mm]bolvormigbolvormig Gewicht[kg]
Ø5[mm]Ø18[mm]
HDCLT1401376011921610.48

Product capacities

Afmetingen

ReferentieHoldowns capacity
Karakteristieke waarden - Hout C24
Karakteristieke waarden - Hout C24[kN]

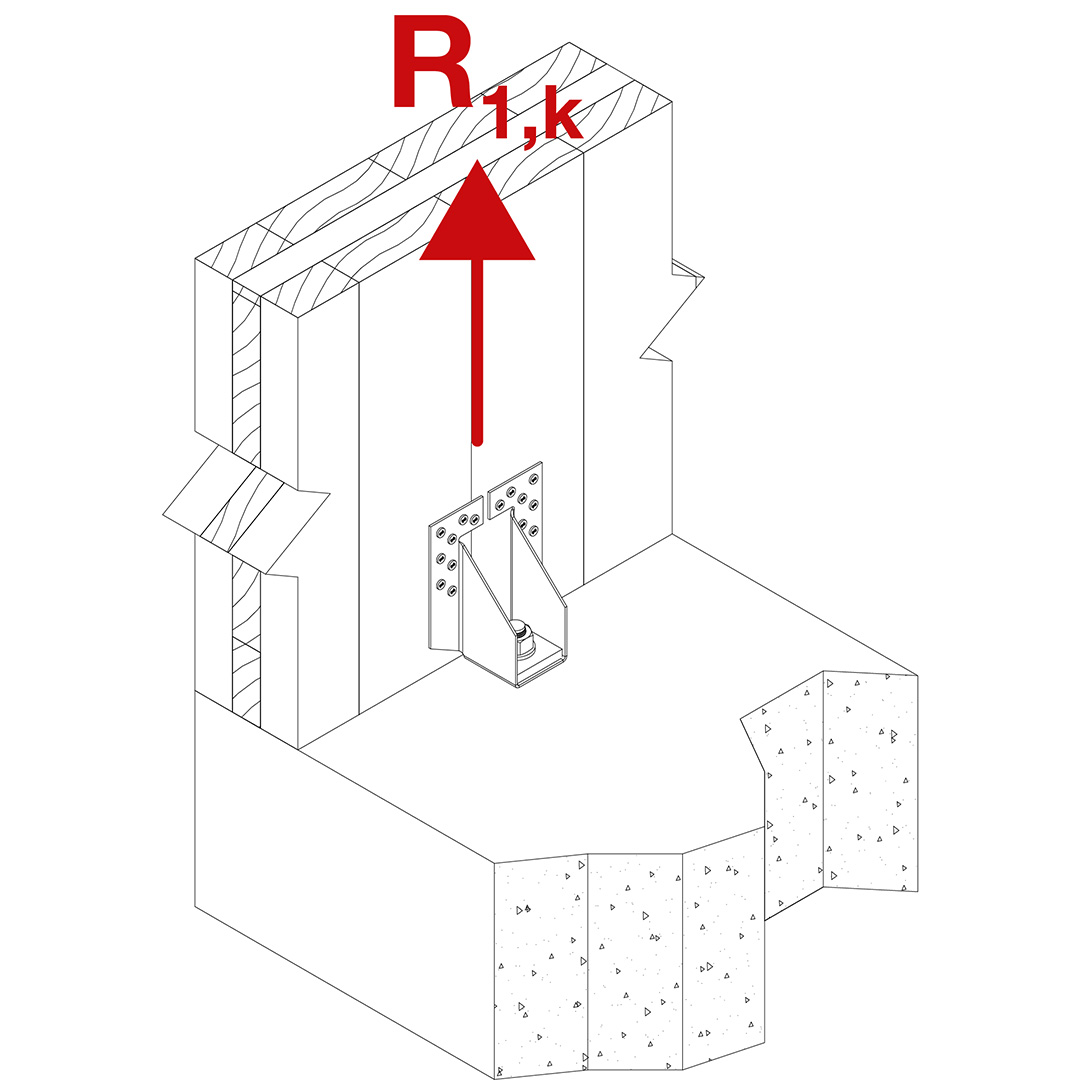

R₁,ₖ
CNA4,0x40CSA5.0x40ZCNA4,0x60CSA5.0x40CSA5.0x50
HDCLT1407.610.112.6min(22.1; 24,2/kmod)min(26.1; 24,2/kmod)
  With Washer – US50/50/8
HDCLT140 Fasteners (Flange A) CSA5.0x50                 CNA4.0x50
Rd (kN) 20.47                            8.55
Anchor (Flange B) FM 753 EVO M16-151/30 FM-753 CRACK 3DG M16-150/30 AT-HP + LMAS M16
Concrete Option 7 1 1
Effective embedment depth (hef) 80 86 192
Min. Member thickness (hmin) 160 170 222
Charac. Spacing (scr,N) 240 258 576
Charac. Edge distance (ccr,N) 120 120 288
NRd (kN) 23.5 23.3 51.4

Non-cracked concrete C20/25

No reinforcement for splitting

kmod: 1,1; service class : 2

Product capacities [kser]

ReferentieHoldowns capacity
kser[kN/mm]
CNA4,0x40CSA5.0x40ZCNA4,0x60CSA5.0x40CSA5.0x50
HDCLT1401.21.51.94.45.2

Installatie

Installatie

Fastener

  • CSA Ø5mm or CNAØ4mm according to ETA-04/0013
  • On concrete: Heavy Duty Wedge Anchor, Injection system for concrete, High capacity undercut anchor, concrete screw

Installation

The connection to the wood is made with CNA nails or CSA connector screws.
The bolt must be verified for the tensile force to be absorbed.
