Vrouwelijke metalen plug voor zware belasting optie 7

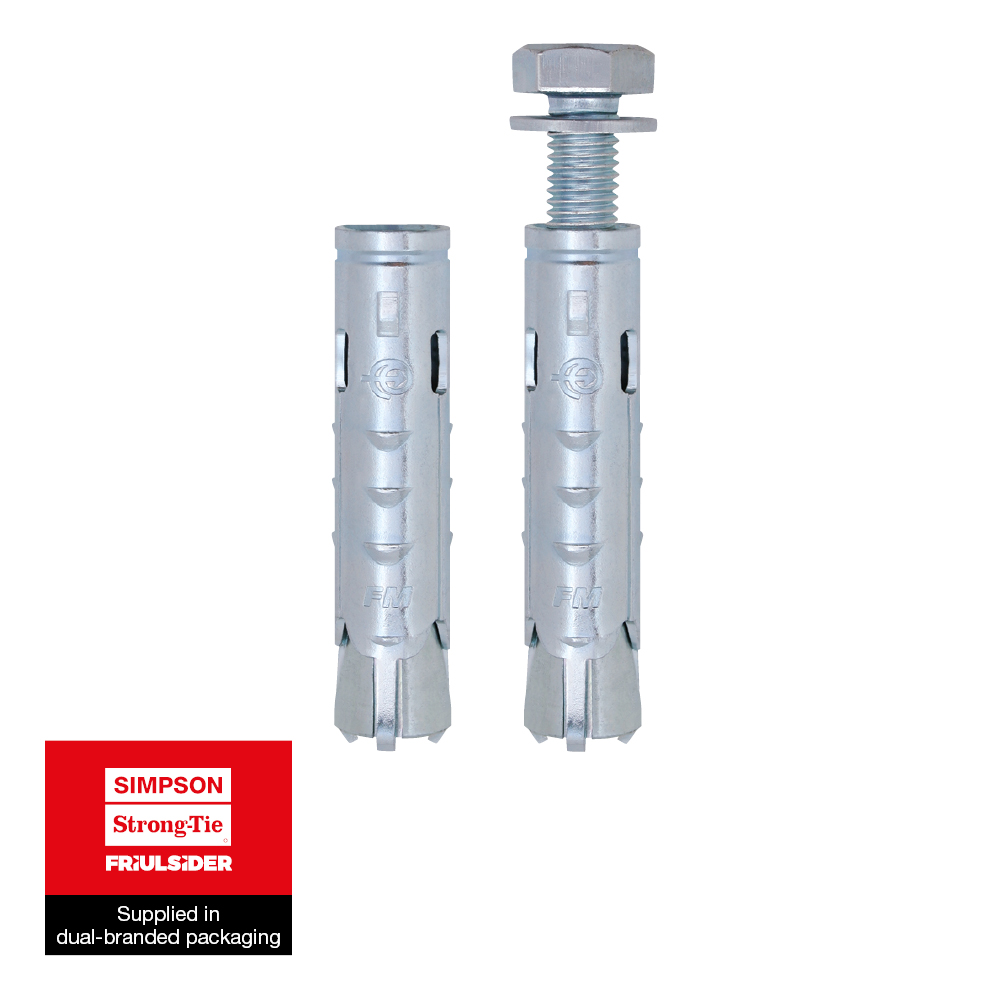

De metalen plug FM-MP3 EVO met schroefexpansiehuls in 3 segmenten is geschikt voor het bevestigen van elementen voor het overbrengen van zware belastingen in een groot aantal ondergronden: gescheurd of ongescheurd beton, volle of holle ondergronden.







Product Details
Kenmerken
Materiaal
- Elektrolytisch verzinkt staal.
Voordelen
- Universele metalen plug, ook geschikt voor hol metselwerk,
- Body uit één stuk, met een exclusief kegelhechtingssysteem,
- Brandwerendheid R120.

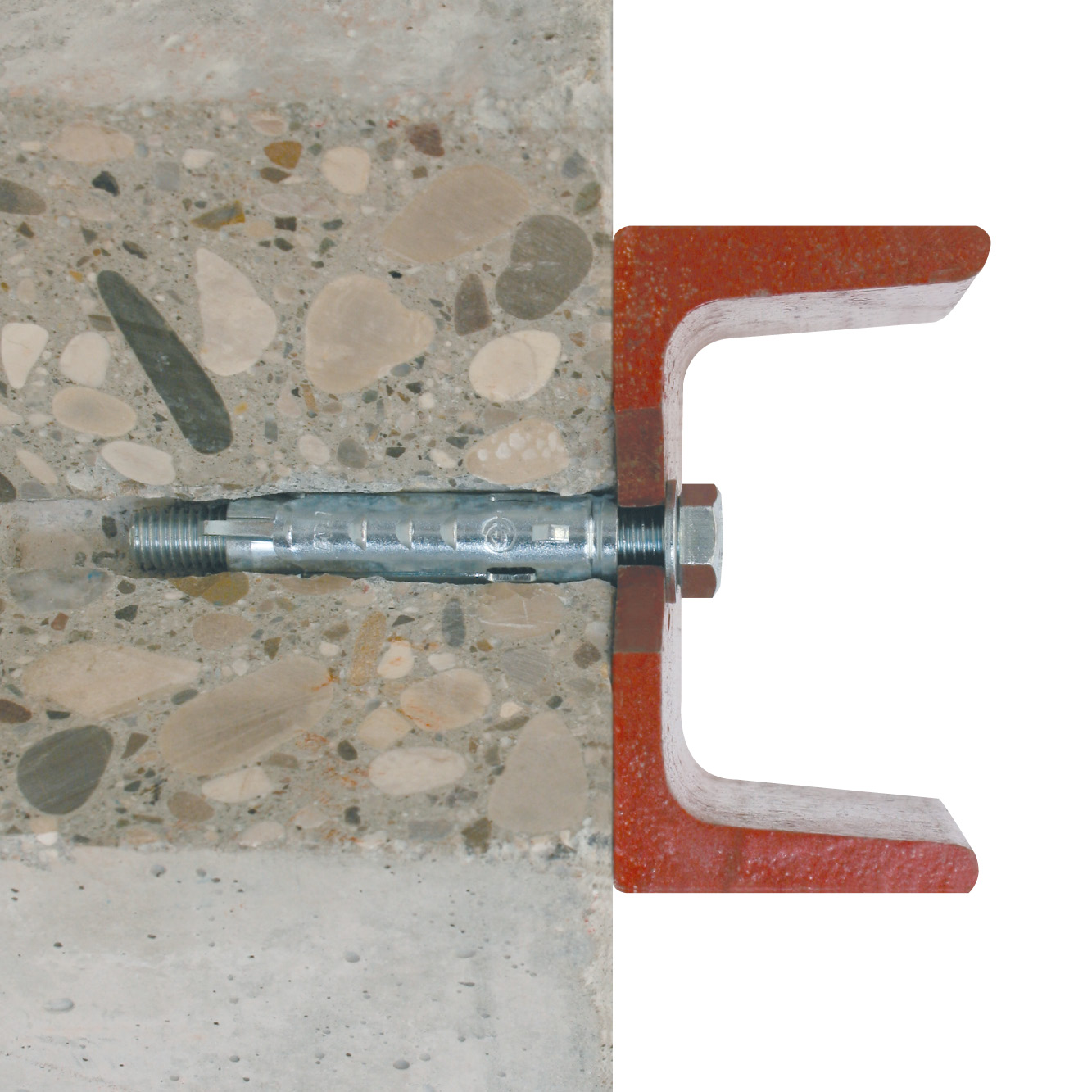

Toepassing
Toepassingsgebieden
- Borstweringen,
- Veiligheidsbarrières,
- Uitrustingen, diverse niet-structurele toepassingen.
Ondergrond
- Gescheurd beton,
- Ongescheurd beton,
- Vol metselwerk,
- Steen,
- Alveolaire baksteen (compatibiliteit te controleren).
Technische gegevens
Afmetingen
| Referentie | Metallic fixings dimensions | Montagegegevens | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artikelcode | Afmetingen[mm] | Overig | Montagegegevens | Spacing and edge distances | ||||||||
| Plug[mm] | Rond[mm] | Hole diameter [dₒ][mm] | Min. setting depth [hₑf][mm] | Hole diameter in fixture [df][mm] | Verpakking[stk] | Qty per outer box | Min. hole depth [h₁][mm] | Nominal embedment depth [hₙₒₘ][mm] | Installation torque[Nm] | Min. support thickness[mm] | ||
| 73300B1004500 | FM-MP3 evo | 10x45* | M6 | 10 | 36 | 8 | 50.0 | 500 | 60 | 45 | 8 | 100 |
| 73300B1205000 | FM-MP3 evo | 12x50* | M8 | 12 | 43 | 10 | 50.0 | 500 | 70 | 50 | 15 | 100 |
| 73300B1506000 | FM-MP3 evo | 15x60* | M10 | 15 | 50 | 12 | 25.0 | 250 | 80 | 60 | 30 | 100 |
| 73300B1808000 | FM-MP3 evo | 18x80* | M12 | 18 | 69 | 14 | 20.0 | 200 | 100 | 80 | 50 | 140 |
* Certified product when coupled with hex head screw DIN933 grade 8.8 and washer DIN125-1 (tfix = Lv – hnom)
Product Dimensions - Hex head screw grade 8.8
| Referentie | Metallic fixings dimensions | Montagegegevens | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Artikelcode | Afmetingen[mm] | Overig | Montagegegevens | Spacing and edge distances | ||||||||||
| Plug[mm] | Hex head screw | Thread length [Lv][mm] | Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm] | Hole diameter [dₒ][mm] | Min. setting depth [hₑf][mm] | Hole diameter in fixture [df][mm] | Verpakking[stk] | Qty per outer box | Min. hole depth [h₁][mm] | Nominal embedment depth [hₙₒₘ][mm] | Installation torque[Nm] | Min. support thickness[mm] | ||
| 73301B1004500 | FM-MP3 evo | 10x45 | M6x50 | 50 | 5 | 10 | 36 | 8 | 50.0 | 500 | 60 | 45 | 8 | 100 |
| 73301B1205000 | FM-MP3 evo | 12x50 | M8x60 | 60 | 10 | 12 | 43 | 10 | 50.0 | 250 | 70 | 50 | 15 | 100 |
| 73301B1506000 | FM-MP3 evo | 15x60 | M10x80 | 80 | 20 | 15 | 50 | 12 | 25.0 | 125 | 80 | 60 | 30 | 100 |
** Not covered by CE certification
Design capacities - single anchor - no edge distances
| Referentie | Metallic fixings dimensions | Metallic fixings loads | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Artikelcode | Design capacity - Non-cracked concrete (3)[kN] | |||||||||
| Bending moment MRd[Nm] | Tension - NRd (1) | Shear - VRd (1-2)[kN] | ||||||||
| C20/25[kN] | C30/37[kN] | C40/50[kN] | C50/60[kN] | C20/25[kN] | C30/37[kN] | C40/50[kN] | C50/60[kN] | |||
| 73300B1004500 | FM-MP3 evo | 9.6 | 5 | - | - | - | 5.1 | - | - | - |
| 73300B1205000 | FM-MP3 evo | 24 | 8 | - | - | - | 9.3 | - | - | - |
| 73300B1506000 | FM-MP3 evo | 48 | 1.6 | - | - | - | 11.6 | - | - | - |
| 73300B1808000 | FM-MP3 evo | 84 | 16.7 | - | - | - | 27 | - | - | - |
| 73301B1004500 | FM-MP3 evo | 9.6 | 5 | - | - | - | 5.1 | - | - | - |
| 73301B1205000 | FM-MP3 evo | 24 | 8 | - | - | - | 9.3 | - | - | - |
| 73301B1506000 | FM-MP3 evo | 48 | 11.6 | - | - | - | 11.6 | - | - | - |
1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).
** Not covered by CE certification

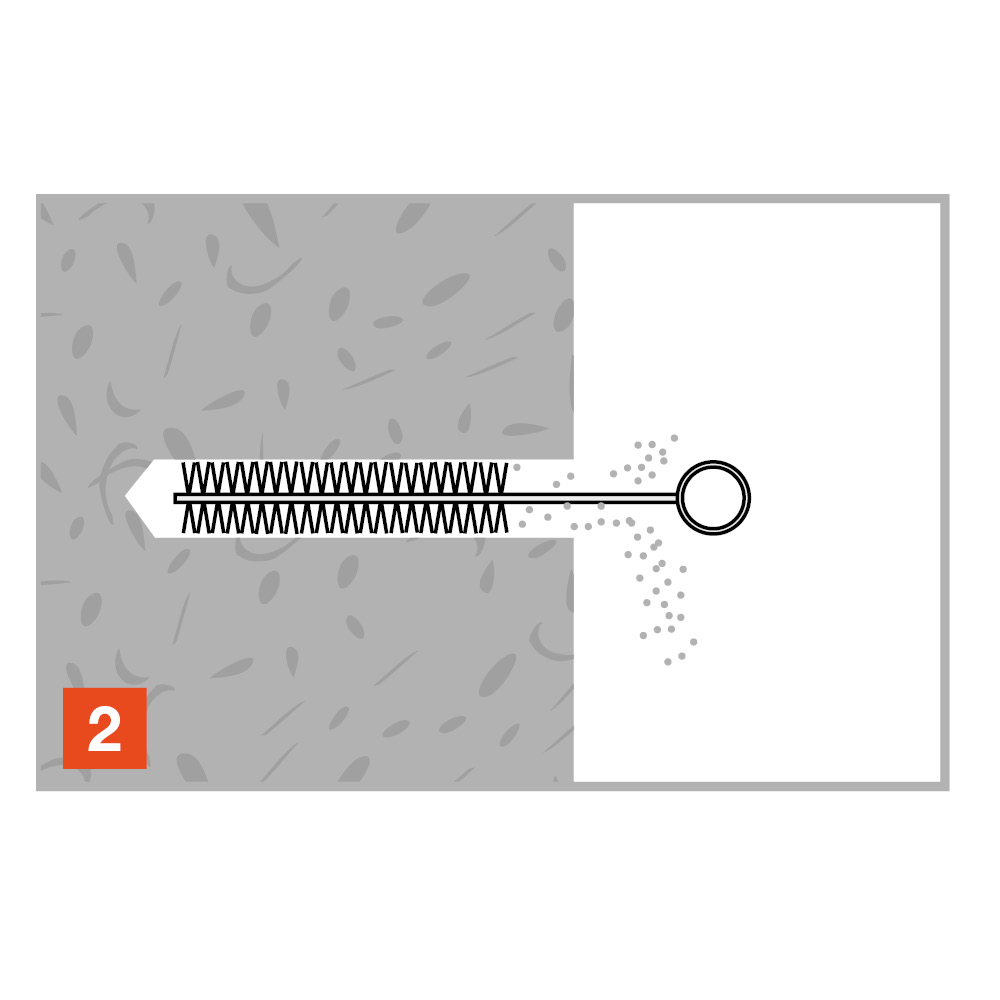

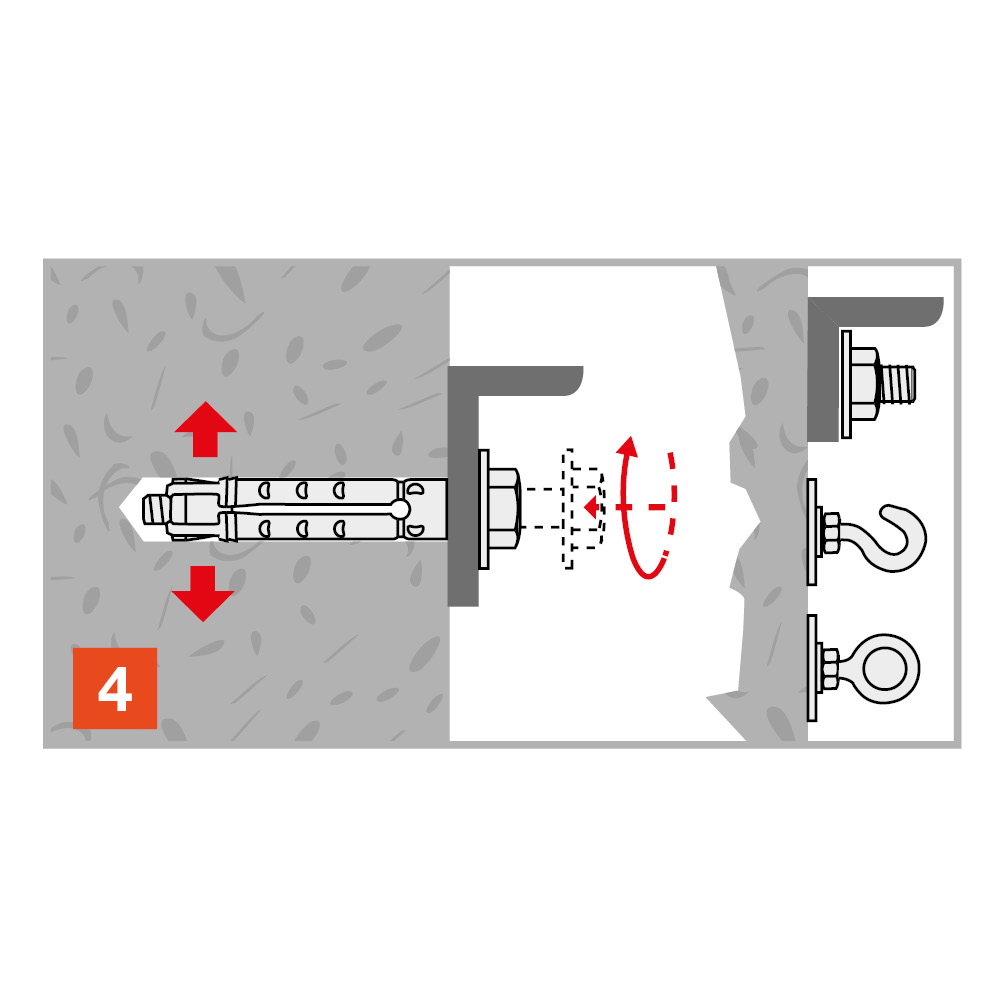

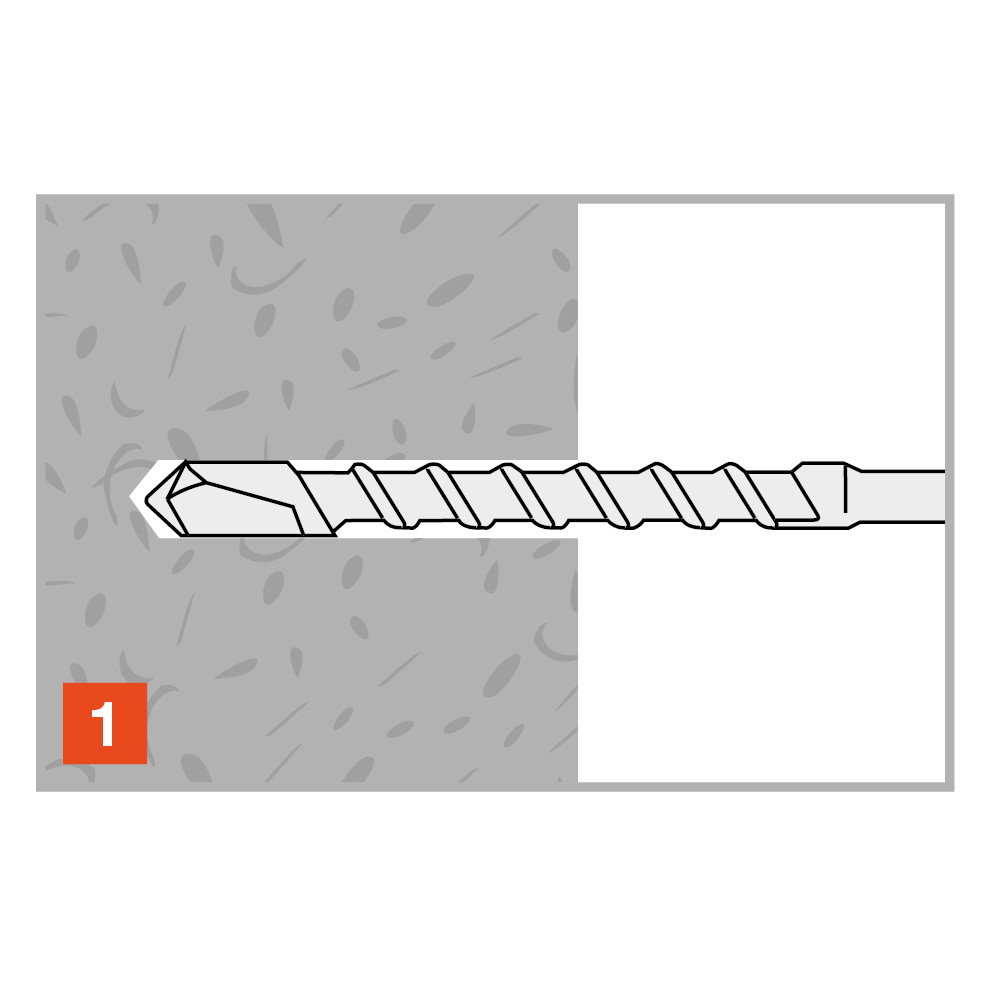

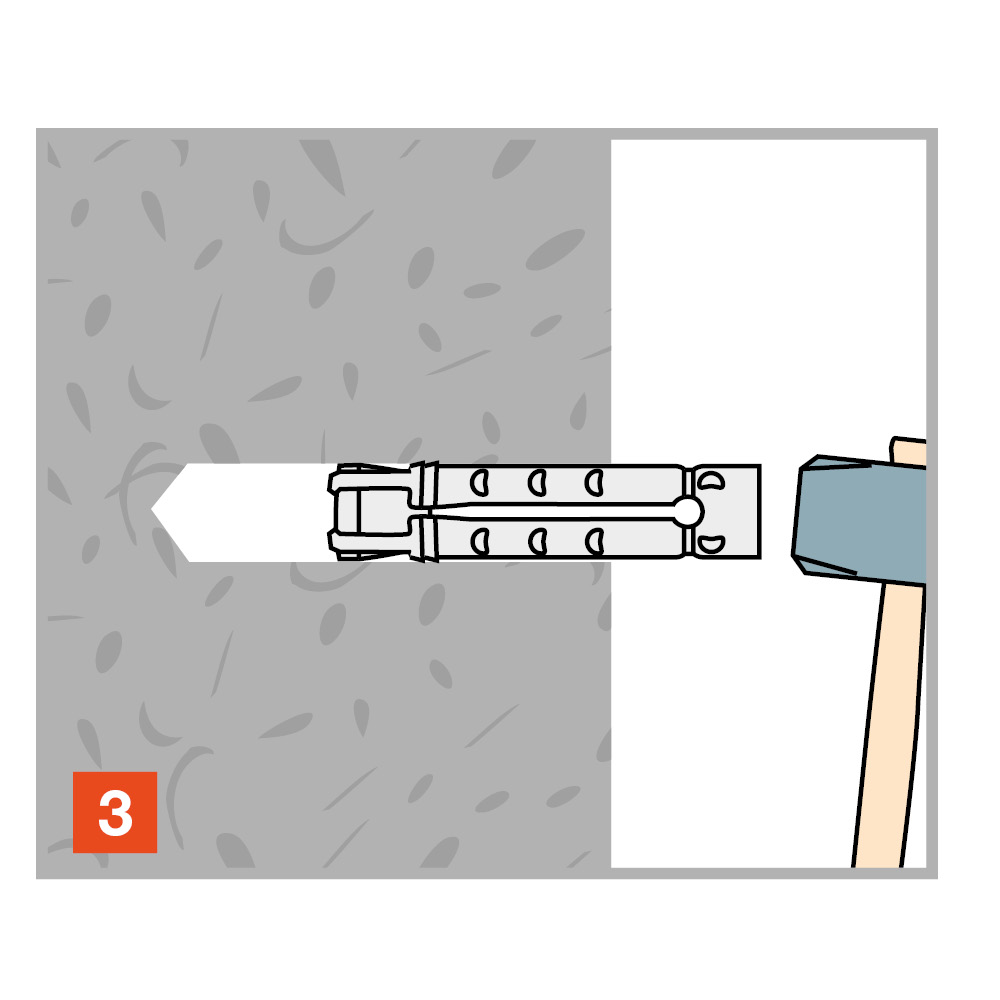

Installatie
Installation data
| Referentie | Metallic fixings dimensions | Montagegegevens | |||||
|---|---|---|---|---|---|---|---|
| Artikelcode | Montagegegevens | Spacing and edge distances | |||||
| Ø drilling hole[mm] | Min. boorgatdiepte[mm] | Ø drilling fixture[mm] | Installation torque[Nm] | Embedment depth[mm] | Min. support thickness[mm] | ||
| 73300B1004500 | FM-MP3 evo | 10 | 60 | 8 | 8 | 36 | 100 |
| 73300B1205000 | FM-MP3 evo | 12 | 70 | 10 | 15 | 43 | 100 |
| 73300B1506000 | FM-MP3 evo | 15 | 80 | 12 | 30 | 50 | 100 |
| 73300B1808000 | FM-MP3 evo | 18 | 100 | 14 | 50 | 69 | 140 |
| 73301B1004500 | FM-MP3 evo | 10 | 60 | 8 | 8 | 36 | 100 |
| 73301B1205000 | FM-MP3 evo | 12 | 70 | 10 | 15 | 43 | 100 |
| 73301B1506000 | FM-MP3 evo | 15 | 80 | 12 | 30 | 50 | 100 |
** Not covered by CE certification
Spacings and edge distances - ETA-09/0067
| Referentie | Metallic fixings dimensions | Montagegegevens | |||
|---|---|---|---|---|---|
| Artikelcode | Spacing and edge distances | ||||
| Min. hartafstand[mm] | Sₘᵢₙ[mm] | Characteristic edge distance[mm] | Characteristic spacing(5) - Scr,N[mm] | ||
| 73300B1004500 | FM-MP3 evo | 35 | 35 | 54 | 108 |
| 73300B1205000 | FM-MP3 evo | 45 | 45 | 65 | 130 |
| 73300B1506000 | FM-MP3 evo | 50 | 50 | 75 | 150 |
| 73300B1808000 | FM-MP3 evo | 75 | 75 | 104 | 208 |
* The above table values also apply to: evo S
