AM
Schakelankers en tuimelpluggen
De schakelankers en tuimelpluggen AM zijn ideaal voor bevestiging op holle wanden of plafonds en zijn geschikt voor een groot aantal diktes.
Elektrolytisch verzinkt staal
Binner
Product Details
Afbeeldingen
Kenmerken

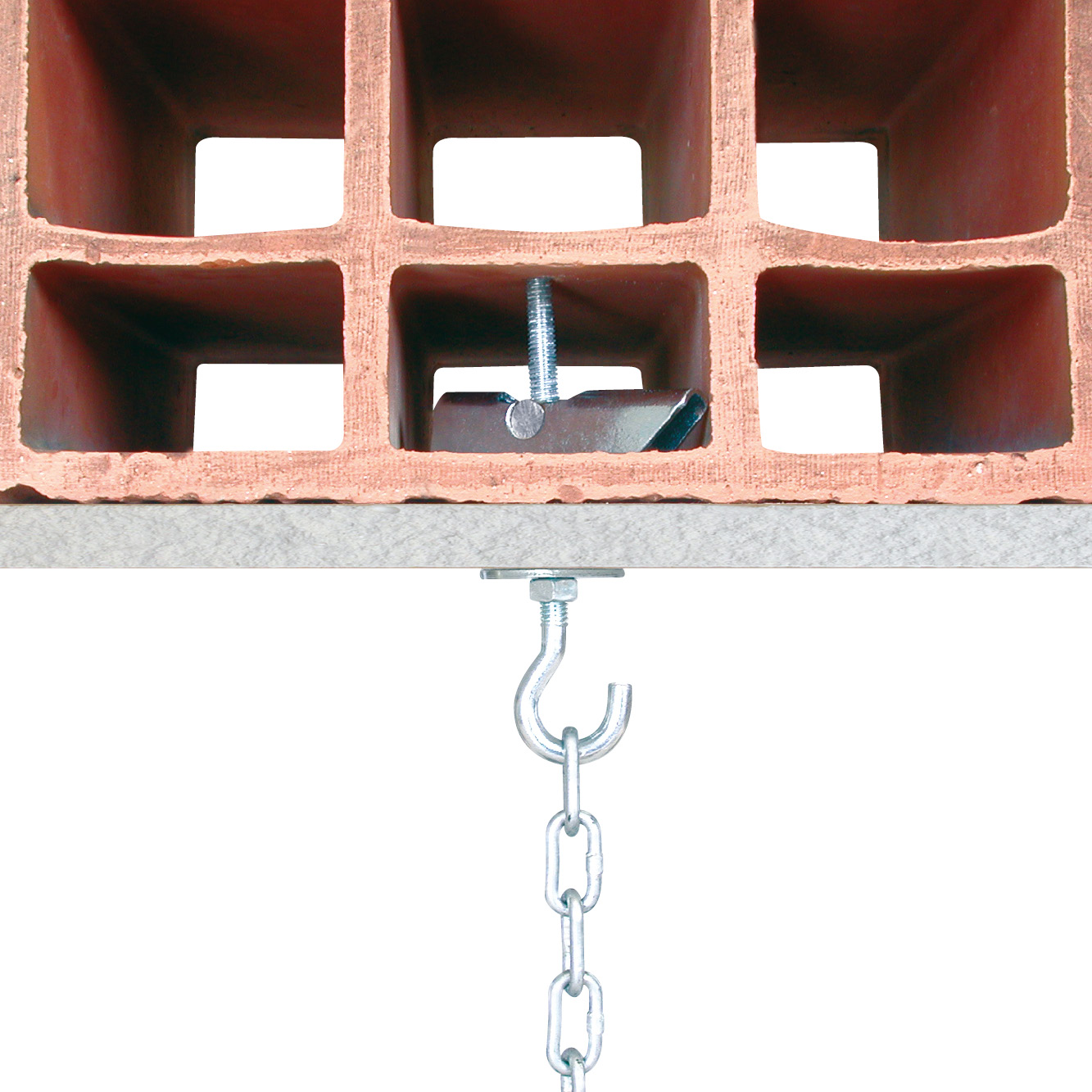

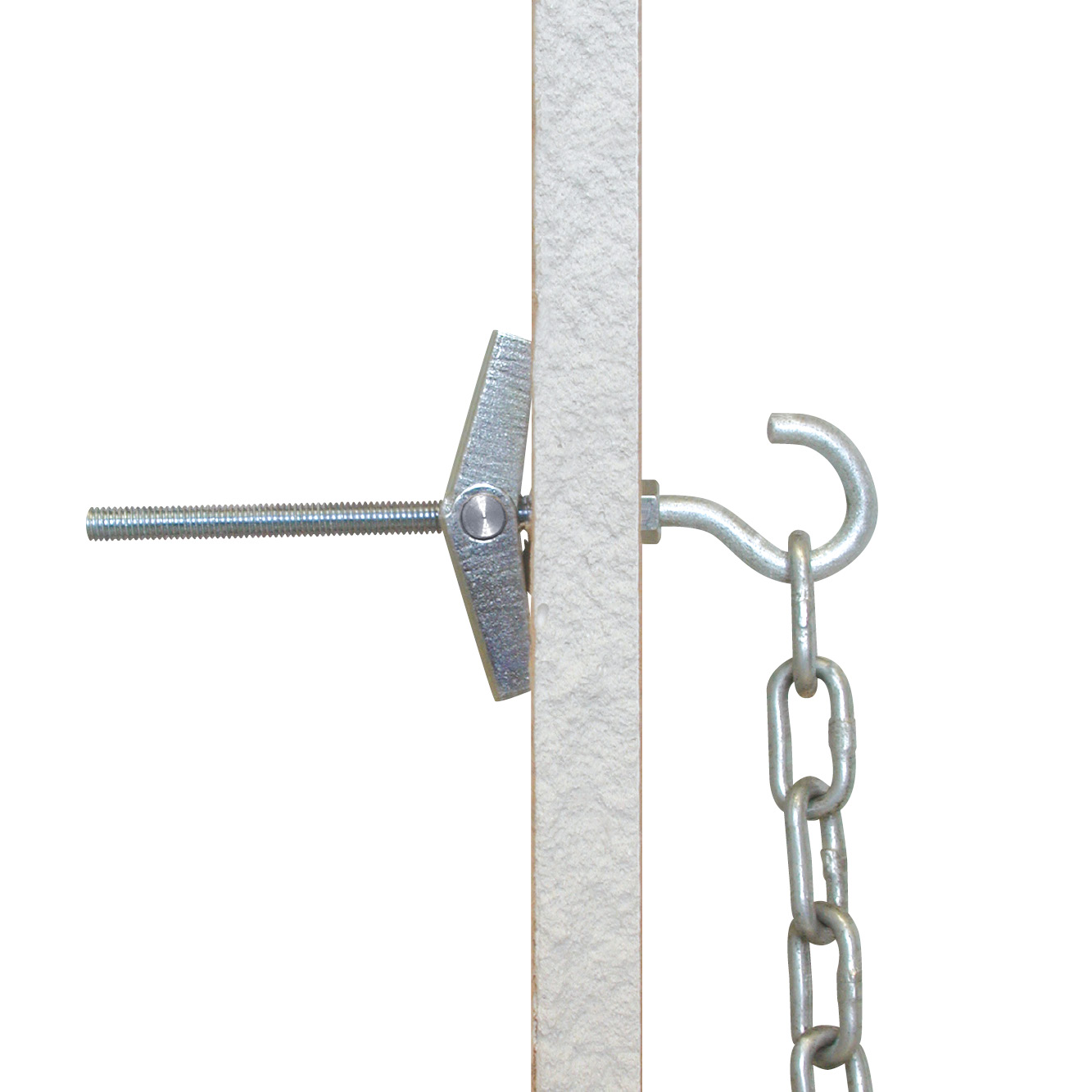

Toepassing
Technische gegevens
Afmetingen
Afmetingen
| Referentie | Product Reference | Dimensions [ØxL] [mm] | Hole diameter [do] [mm] | Max. wall thickness [hmax] [mm] | Min. empty space for correct opening of anchor [Amin] [mm] | Washer diameter [dr] [mm] | Qty per box | Qty per outer box |
|---|---|---|---|---|---|---|---|---|
| 76010B0407500 | AM | M4x75 | 12 | 45 | 25 | 20 | 100 | 600 |
| 76010B0410000 | M4x100 | 12 | 70 | 25 | 20 | 100 | 600 | |
| 76010B0508000 | M5x80 | 14 | 45 | 30 | 24 | 100 | 600 | |
| 76010B0510000 | M5x100 | 14 | 65 | 30 | 24 | 100 | 600 |
Product Dimension Cup Hook
| Referentie | Product Reference | Dimensions [ØxL] [mm] | Hole diameter [do] [mm] | Max. wall thickness [hmax] [mm] | Min. empty space for correct opening of anchor [Amin] [mm] | Washer diameter [dr] [mm] | Ø internal hook or eye [O] [mm] | Qty per box | Qty per outer box |
|---|---|---|---|---|---|---|---|---|---|
| 76210B0407000 | AM | M4x70 | 12 | 40 | 25 | 20 | 14 | 100 | 600 |
Product Dimensions Eye Hook
| Referentie | Product Reference | Dimensions [ØxL] [mm] | Hole diameter [do] [mm] | Max. wall thickness [hmax] [mm] | Min. empty space for correct opening of anchor [Amin] [mm] | Washer diameter [dr] [mm] | Ø internal hook or eye [O] [mm] | Qty per box | Qty per outer box |
|---|---|---|---|---|---|---|---|---|---|
| 76310B0407000 | AM | M4x70 | 12 | 40 | 25 | 20 | 14 | 100 | 600 |

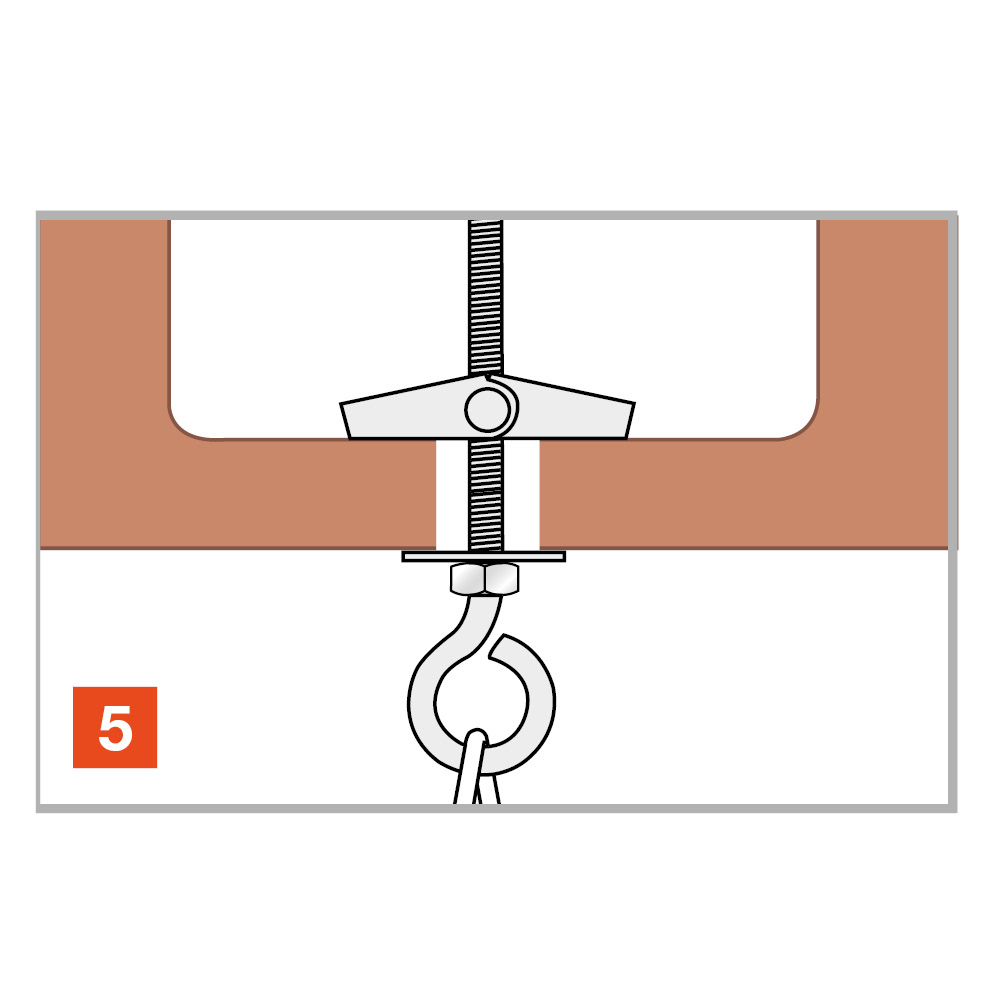

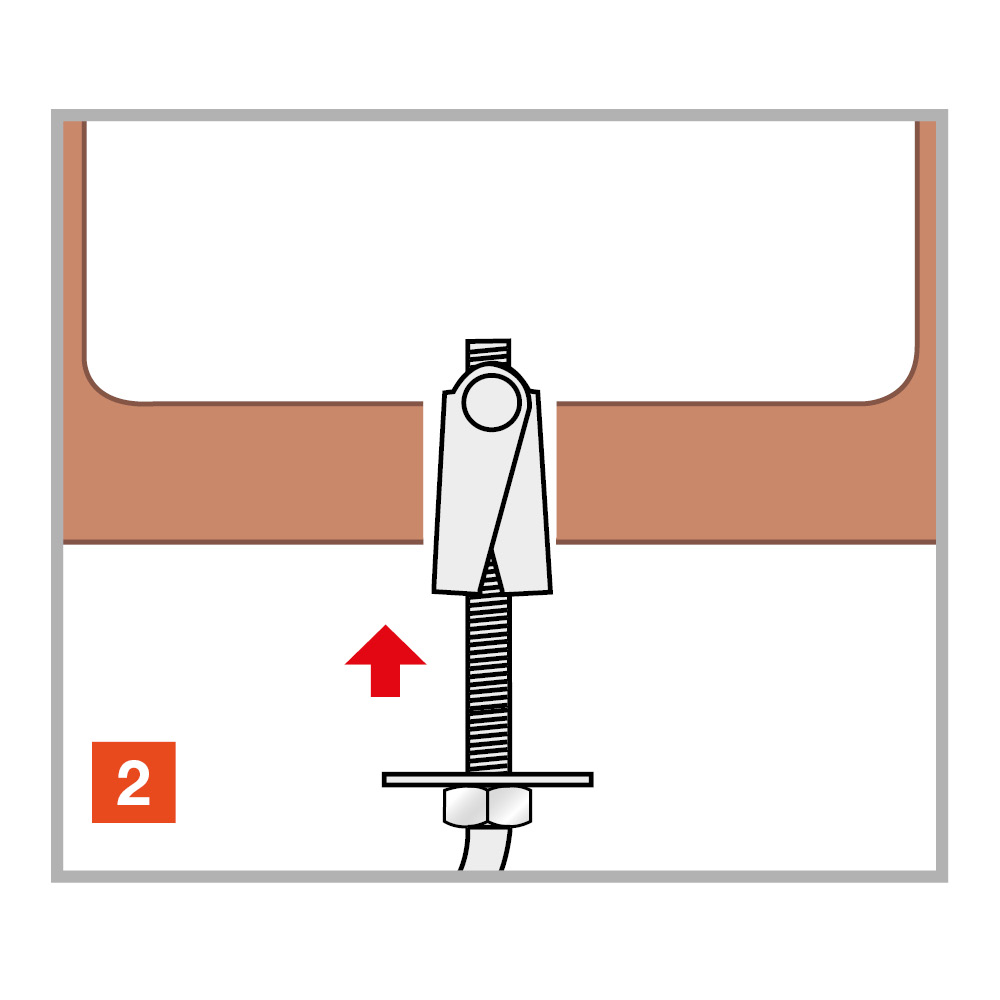

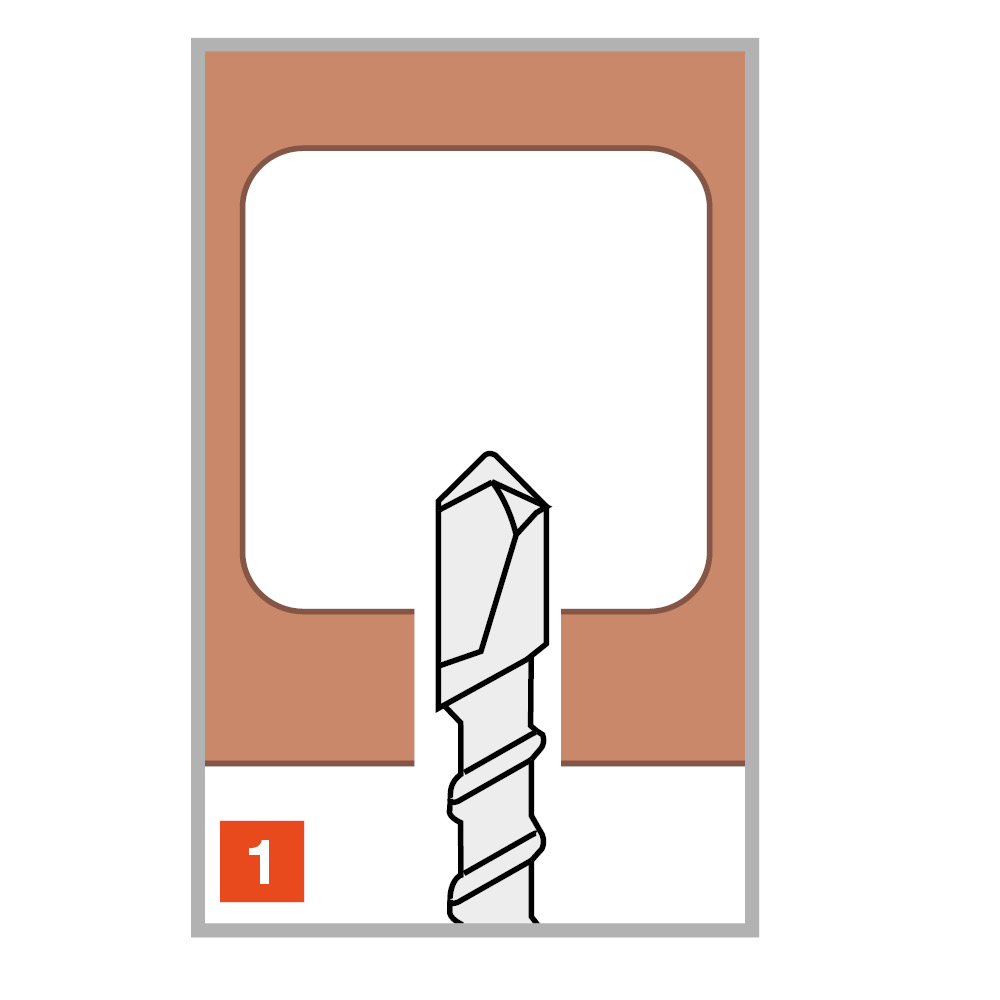

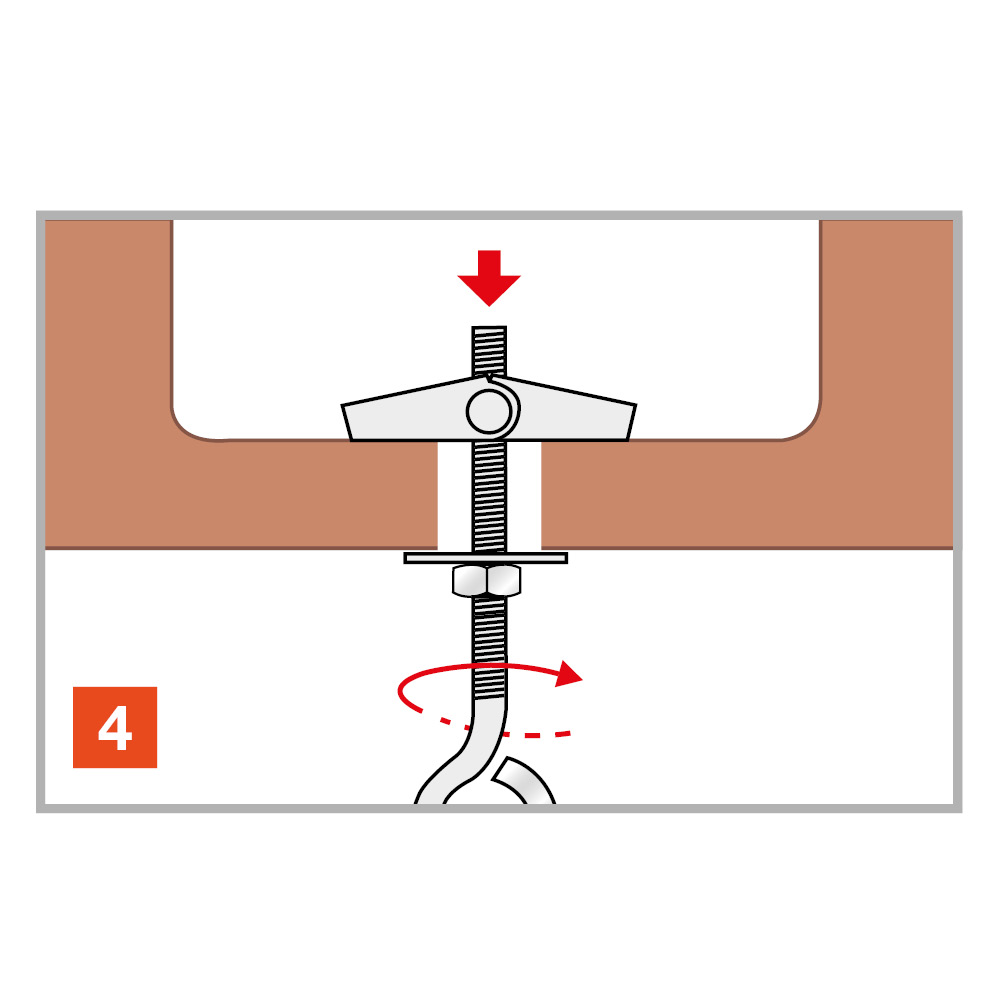

Installatie
Installatie
