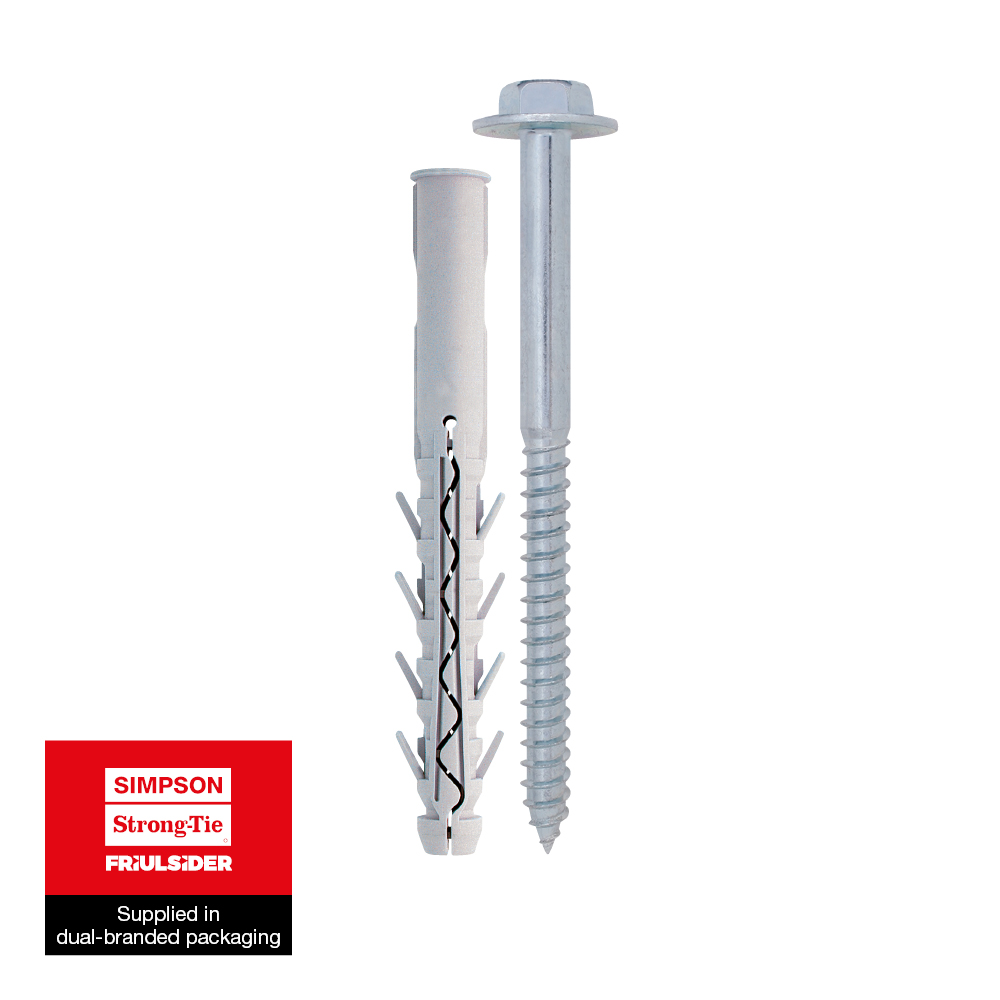

TUPP
Lange nylonplug met hoge uitzetting

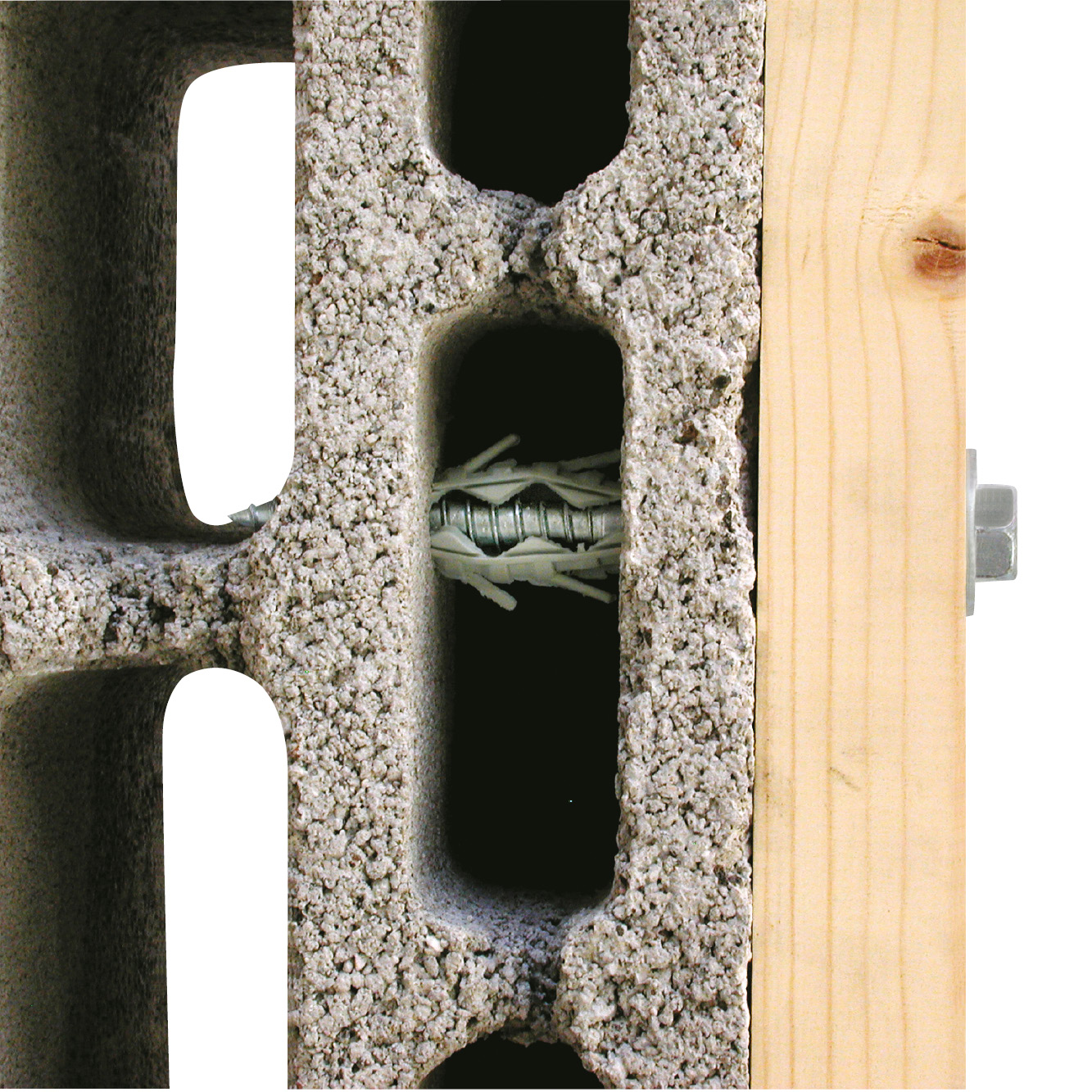

De lange nylonplug TUPP is geschikt voor het bevestigen van dunne of dikke elementen op elk type holle of volle ondergrond.
Gebruiksklasse 2
Elektrolytisch verzinkt staal
Binner
Product Details
Afbeeldingen
Kenmerken
Technische gegevens
Afmetingen
Product Dimensions
| Referentie | Product Reference | Hole diameter x anchor length [doxL] [mm] | Fixture thickness [tfix] [mm] | Min. hole depth [h1] [mm] | Nominal embedment depth [hnom] [mm] | Min. support thickness [hmin] [mm] | Washer diameter [dr] [mm] | Screw diameter [d] [mm] | Screw length [Lv] [mm] | Wrench [SW] [mm] | Qty per box | Qty per outer box |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 64001B1620000 | TUPP | Ø16x200 | 105 | 110 | 95 | 140 | 34 | 12 | 210 | 19 | 25 | - |
| 64001B1624000 | Ø16x240 | 145 | 110 | 95 | 140 | 34 | 12 | 250 | 19 | 25 | - |

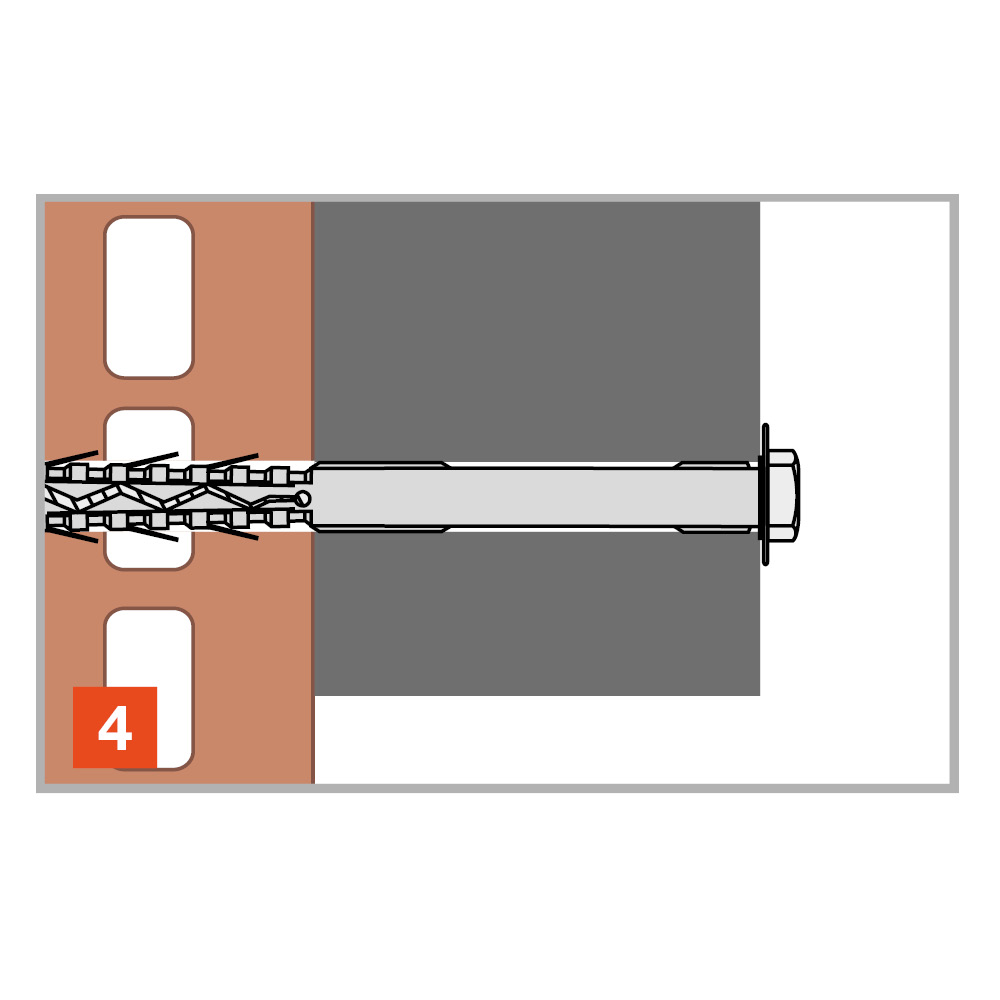

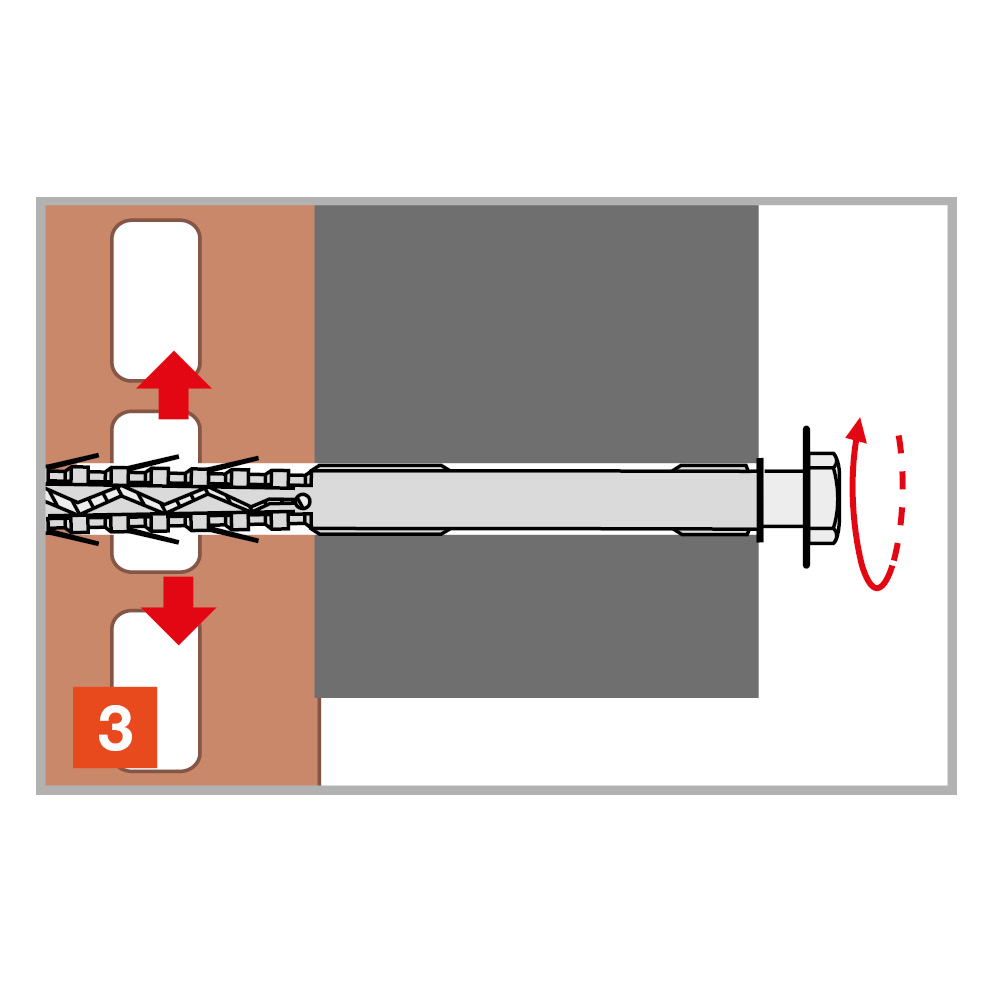

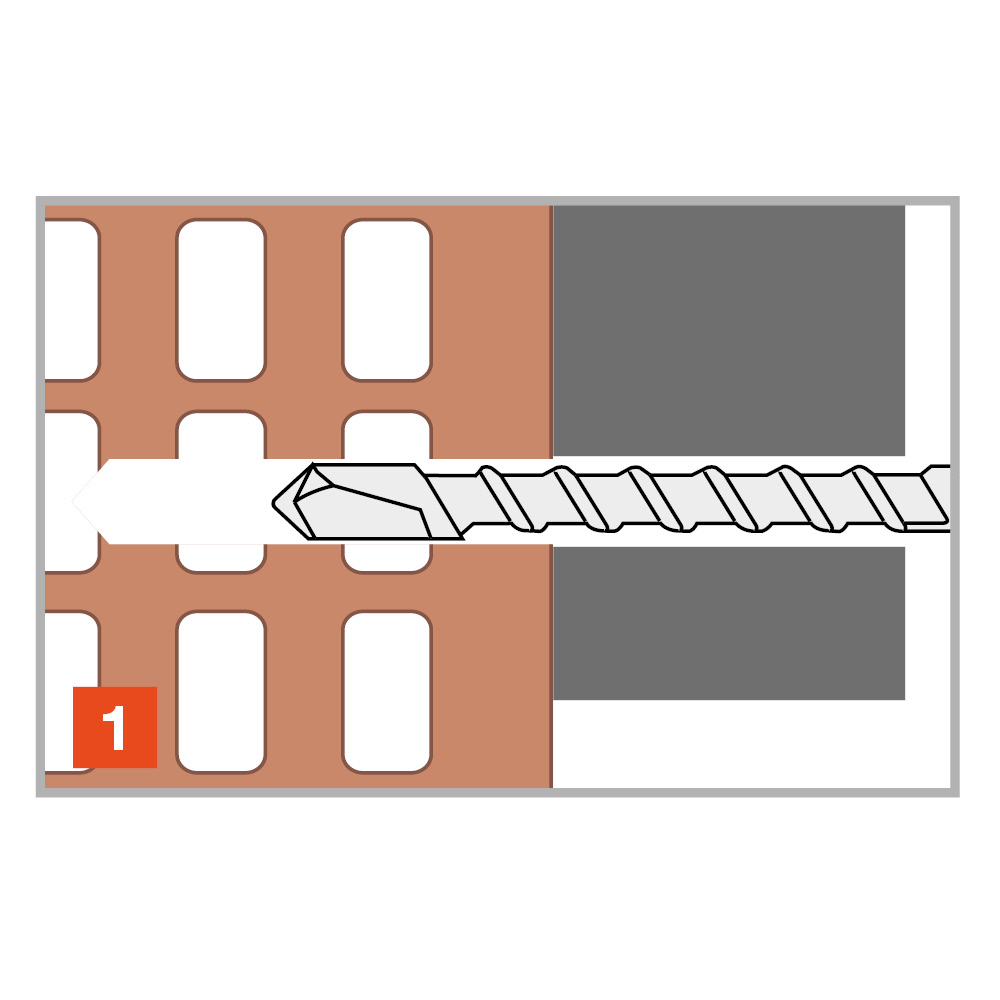

Installatie
Installatie
