TSS

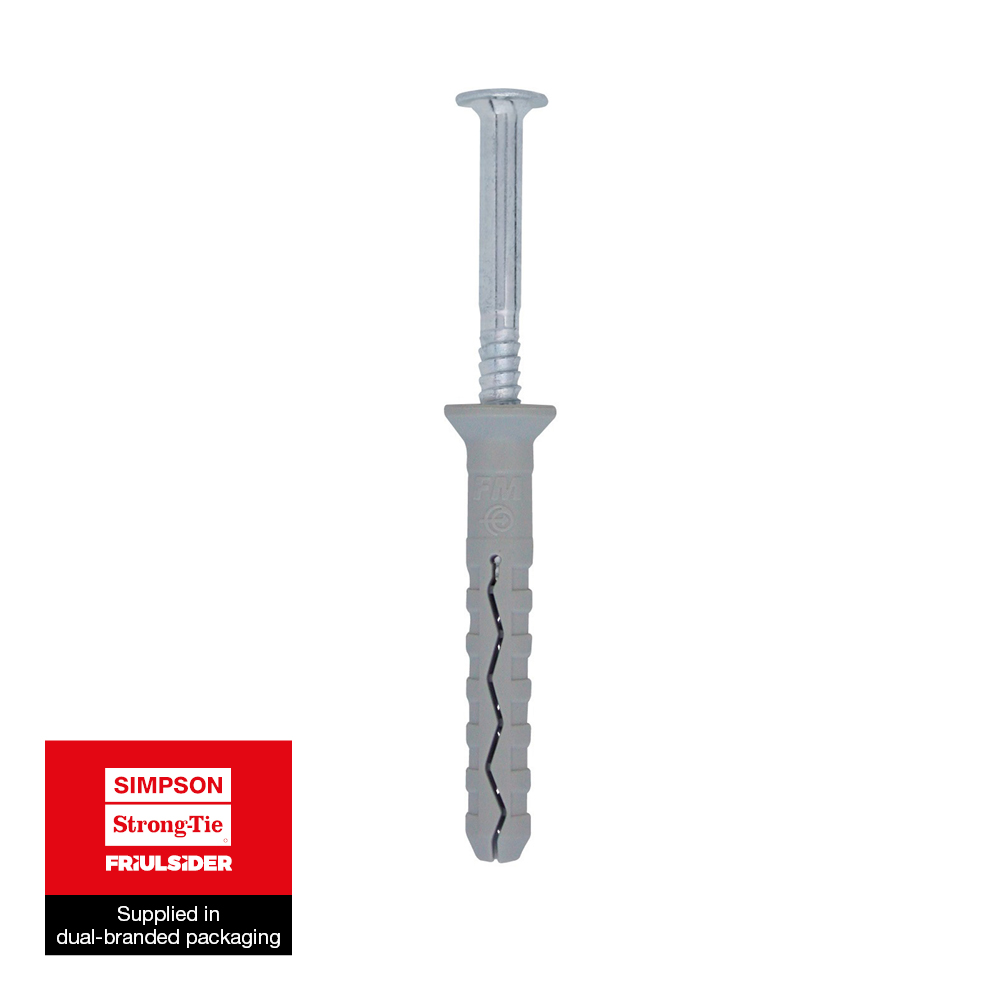

Inslagplug met verzonken kraag

De inslagplug met verzonken kraag TSS is geschikt voor het snel bevestigen van lichte elementen op diverse ondergronden.

De nylonplug beperkt warmteoverdracht en de voorgemonteerde nagel zet de plug uit wanneer erop wordt geklopt.

Technisch gegevensblad

CE-Markering

ETA

Gebruiksklasse 2

Elektrolytisch verzinkt staal

Binner

Product Details

Afbeeldingen

Kenmerken

Materiaal

Plug : grijs nylon,
Schroeven : elektrolytisch verzinkt staal.

Voordelen

Zeer eenvoudige montage en demontage dankzij de nagel met schroefdraad,
Uitzetting door schroeven of hameren,
Perfect contact met het materiaal, gelijk met het oppervlak,
Zigzaggleuf om scheefstand van de nagel te voorkomen.

Toepassing

Toepassingsgebieden

Bevestiging van kepers of steunlatten,
Bevestiging van enkele hoekijzers en ramen en deuren,
Bevestiging van rails en klemmen voor kabels en leidingen,
Bevestiging van dunne bekledingen op buiten- en binnengevels.

Ondergrond

Ongescheurd beton,
Hol en vol metselwerk,
Cellenbeton.

Technische gegevens

Afmetingen

Product Dimensions

Referentie	Product Reference	Hole diameter x anchor length [d_oxL] [mm]	Fixture thickness [t_fix] [mm]	Min. hole depth [h₁] [mm]	Nominal embedment depth [h_nom] [mm]	Min. support thickness [h_min] [mm]	Screw diameter [d] [mm]	Screw length [L_v] [mm]	Collar diameter [d_r] [mm]	Qty per box	Qty per outer box
62200B0503000	TSS	Ø5x30*	5	35	25	50	3.4	35	8.5	300	3000
62200B0504000		Ø5x40*	15	35	25	50	3.4	45	8.5	200	2000
62200B0604000		Ø6x40	10	40	30	100	3.8	45	10	200	2000
62200B0605000		Ø6x50	20	40	30	100	3.8	55	10	100	1000
62200B0606000		Ø6x60	30	40	30	100	3.8	65	10	100	1000
62200B0608000		Ø6x80	50	40	30	100	3.8	85	10	100	1000
62200B0806000		Ø8x60	20	50	40	100	4.8	65	12	150	1500
62200B0808000		Ø8x80	40	50	40	100	4.8	85	12	150	1500
62200B0810000		Ø8x100	60	50	40	100	4.8	105	12	100	1000
62200B0812000		Ø8x120	80	50	40	100	4.8	125	12	100	1000
62200B0814000		Ø8x140	100	50	40	100	4.8	145	12	100	1000

*Not covered by CE certification

Design capacities - single anchor - no edge distances

Referentie	Design capacities - single anchor - no edge distances
	Design capacity - Non-cracked concrete (3)
	Tension - NRd (1)		Shear - VRd (1-2)		Bending moment MRd [Nm]
	C20/25 [kN]	Solid Brick [kN]	C20/25 [kN]	Solid Brick [kN]	Bending moment MRd [Nm]
62200B0503000	0.23	0.2	0.6	0.6	-
62200B0504000	0.23	0.2	0.6	0.6	-
62200B0604000	0.6	0.36	0.6	0.6	-
62200B0605000	0.6	0.36	0.6	0.6	-
62200B0606000	0.6	0.36	0.6	0.6	-
62200B0608000	0.6	0.36	0.6	0.6	-
62200B0806000	0.6	0.45	1.2	1.2	-
62200B0808000	0.6	0.45	1.2	1.2	-
62200B0810000	0.6	0.45	1.2	1.2	-
62200B0812000	0.6	0.45	1.2	1.2	-
62200B0814000	0.6	0.45	1.2	1.2	-
62202B0604000	-	-	-	-	-
62204B0604000	-	-	-	-	-

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

*Not covered by ETA-11/0080

Installatie

Spacing and edge distance

Referentie	Product Reference	Hole diameter x anchor length [d_oxL] [mm]	Min. edge distance [cmin] [mm]	Min. spacing [smin] [mm]
62200B0503000	TSS	Ø5x30*	50	50
62200B0504000	TSS	Ø5x40*	50	50
62200B0604000	TSS	Ø6x40	100	100
62200B0605000	TSS	Ø6x50	100	100
62200B0606000	TSS	Ø6x60	100	100
62200B0608000	TSS	Ø6x80	100	100
62200B0806000	TSS	Ø8x60	100	100
62200B0808000	TSS	Ø8x80	100	100
62200B0810000	TSS	Ø8x100	100	100
62200B0812000	TSS	Ø8x120	100	100
62200B0814000	TSS	Ø8x140	100	100
62202B0604000	TSS	Ø6x40	-	-
62204B0604000	TSS	Ø6x40	-	-

* Not included in the approval

Installation data

Referentie	Product Reference	Hole diameter x anchor length [d_oxL] [mm]	Ø drilling hole [d0] [mm]	Min. hole depth [h₁] [mm]	Min. support thickness [h_min] [mm]
62200B0503000	TSS	Ø5x30*	5	35	50
62200B0504000	TSS	Ø5x40*	5	35	50
62200B0604000	TSS	Ø6x40	6	40	100
62200B0605000	TSS	Ø6x50	6	40	100
62200B0606000	TSS	Ø6x60	6	40	100
62200B0608000	TSS	Ø6x80	6	40	100
62200B0806000	TSS	Ø8x60	8	50	100
62200B0808000	TSS	Ø8x80	8	50	100
62200B0810000	TSS	Ø8x100	8	50	100
62200B0812000	TSS	Ø8x120	8	50	100
62200B0814000	TSS	Ø8x140	8	50	100
62202B0604000	TSS	Ø6x40	-	50	100
62204B0604000	TSS	Ø6x40	-	50	100
