TPP

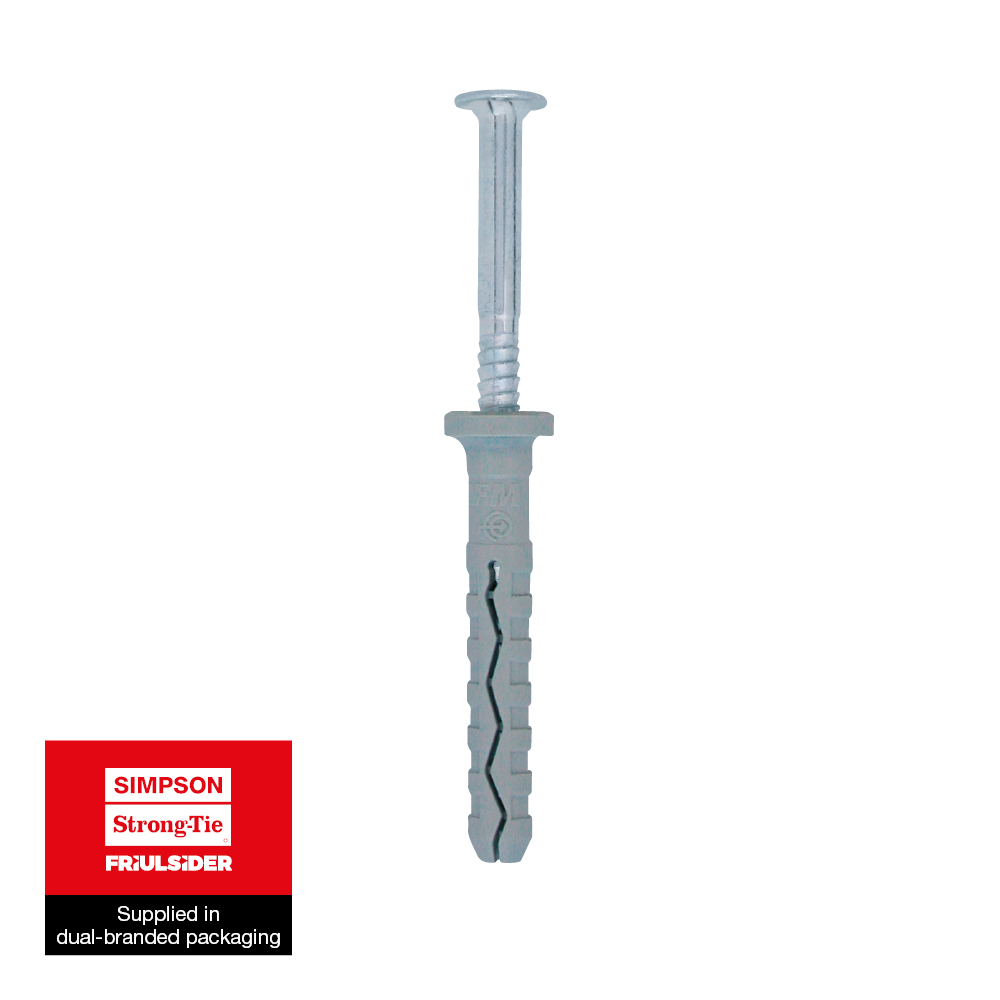

Inslagplug met gewelfde kraag

De inslagplug met gewelfde kraag TPP is geschikt voor het snel bevestigen van lichte elementen op diverse ondergronden.

De nylonplug beperkt warmteoverdracht en de voorgemonteerde nagel zet de plug uit wanneer erop wordt geklopt.

CE-Markering
CE-Markering
ETA
ETA
Gebruiksklasse 2
Gebruiksklasse 2
Binner
Binner
Elektrolytisch verzinkt staal
Elektrolytisch verzinkt staal

Product Details

Afbeeldingen

Kenmerken

Materiaal

  • Plug : grijs nylon,
  • Schroeven : elektrolytisch verzinkt staal.

Voordelen

  • Zeer eenvoudige montage en demontage dankzij de nagel met schroefdraad,
  • Uitzetting door schroeven of hameren,
  • Perfect contact met het materiaal, gelijk met het oppervlak,
  • Zigzaggleuf om scheefstand van de nagel te voorkomen.

Toepassing

Toepassingsgebieden

  • Bevestiging van kepers of steunlatten,
  • Bevestiging van enkele hoekijzers en ramen en deuren,
  • Bevestiging van rails en klemmen voor kabels en leidingen,
  • Bevestiging van dunne bekledingen op buiten- en binnengevels.

Ondergrond

  • Ongescheurd beton,
  • Hol en vol metselwerk,
  • Cellenbeton.

Technische gegevens

Product Dimension

Afmetingen

ReferentieNylon fixings dimensionsNylon fixings Installation data
Info product[mm]Montagegegevens
ProductreferentieFixture thickness [tfᵢₓ][mm]Screw diameter [d][mm]Screw length [Lv][mm]Collar diameter [dᵣ][mm]Verpakking[stk]Qty per outer boxGewicht[kg]Hole diameter x anchor length [dₒxL][mm]Min. hole depth [h₁][mm]Nominal embedment depth [hₙₒₘ][mm]Min. support thickness [hₘᵢₙ][mm]
62700B0503000TPP53.4359300.03000.00.003Ø5x30*352550
62700B0504000TPP153.4459200.02000.00.003Ø5x40*352550
62700B0505000TPP253.4559200.02000.00.004Ø5x50*352550
62700B0604000TPP103.84510200.02000.00.004Ø6x404030100
62700B0605000TPP203.85510100.01000.00.006Ø6x504030100
62700B0606000TPP303.86510100.01000.00.007Ø6x604030100
62700B0806000TPP204.86511.5150.01500.00.011Ø8x605040100
62700B0808000TPP404.88511.5150.01500.00.014Ø8x805040100
62700B0810000TPP604.810511.5100.01000.00.015Ø8x1005040100
62700B0812000TPP804.812511.5100.01000.00.021Ø8x1205040100

* Not covered by CE certification

** With reduced embedment depths

Design capacities - single anchor - no edge distances

ReferentieNylon fixings Loads
Design capacities - single anchor - no edge distances
Design capacity
Bending moment MRd[Nm]Tension - NRd (1)Shear - VRd (1-2)
Ongescheurd beton C20/25[kN]Volle baksteen[kN]Ongescheurd beton C20/25[kN]Volle baksteen[kN]
62700B0503000-0.230.20.60.6
62700B0504000-0.230.20.60.6
62700B0505000-0.230.20.60.6
62700B0604000-0.60.360.60.6
62700B0605000-0.60.360.60.6
62700B0606000-0.60.360.60.6
62700B0806000-0.60.451.21.2
62700B0808000-0.60.451.21.2
62700B0810000-0.60.451.21.2
62700B0812000-0.60.451.21.2

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

*Not covered by ETA-11/0080

Installatie

Installatie

Spacing and edge distance

ReferentieNylon fixings dimensionsNylon fixings Installation dataNylon fixings Loads
Info product[mm]MontagegegevensRecommended capacity
ProductreferentieHole diameter x anchor length [dₒxL][mm]TU plug with wood thread screw
Karakteristieke randafstand[mm]Characteristic Spacing(5)[mm]
62700B0503000TPPØ5x30*5050
62700B0504000TPPØ5x40*5050
62700B0505000TPPØ5x50*5050
62700B0604000TPPØ6x40100100
62700B0605000TPPØ6x50100100
62700B0606000TPPØ6x60100100
62700B0806000TPPØ8x60100100
62700B0808000TPPØ8x80100100
62700B0810000TPPØ8x100100100
62700B0812000TPPØ8x120100100

* Not included in the approval

Installation data

ReferentieNylon fixings dimensionsNylon fixings Installation data
Info product[mm]Montagegegevens
ProductreferentieHole diameter x anchor length [dₒxL][mm]Ø drilling hole[mm]Min. hole depth [h₁][mm]Min. support thickness [hₘᵢₙ][mm]
62700B0503000TPPØ5x30*53550
62700B0504000TPPØ5x40*53550
62700B0505000TPPØ5x50*53550
62700B0604000TPPØ6x40640100
62700B0605000TPPØ6x50640100
62700B0606000TPPØ6x60640100
62700B0806000TPPØ8x60850100
62700B0808000TPPØ8x80850100
62700B0810000TPPØ8x100850100
62700B0812000TPPØ8x120850100
