FM-MP3 evo A4

Heavy Duty Three Segments Through Anchor

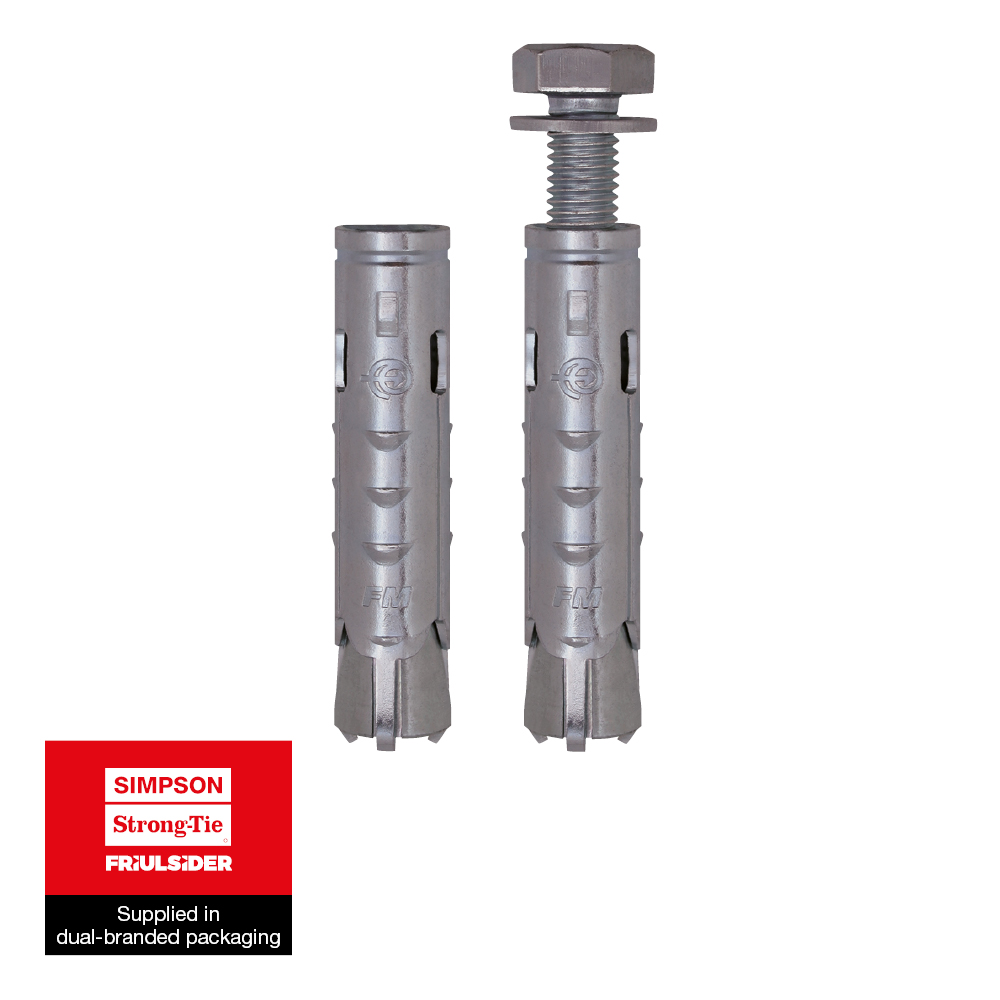

The FM-MP3 evo A4 is an anchor made of A4 stainless steel, which is placed into a drilled hole and anchored by torque-controlled expansion.

CE-Markering
CE-Markering
ETA
ETA
Brand R120
Brand R120
Roestvrij staal A4
Roestvrij staal A4
Fix Calc
Fix Calc

Product Details

Afbeeldingen

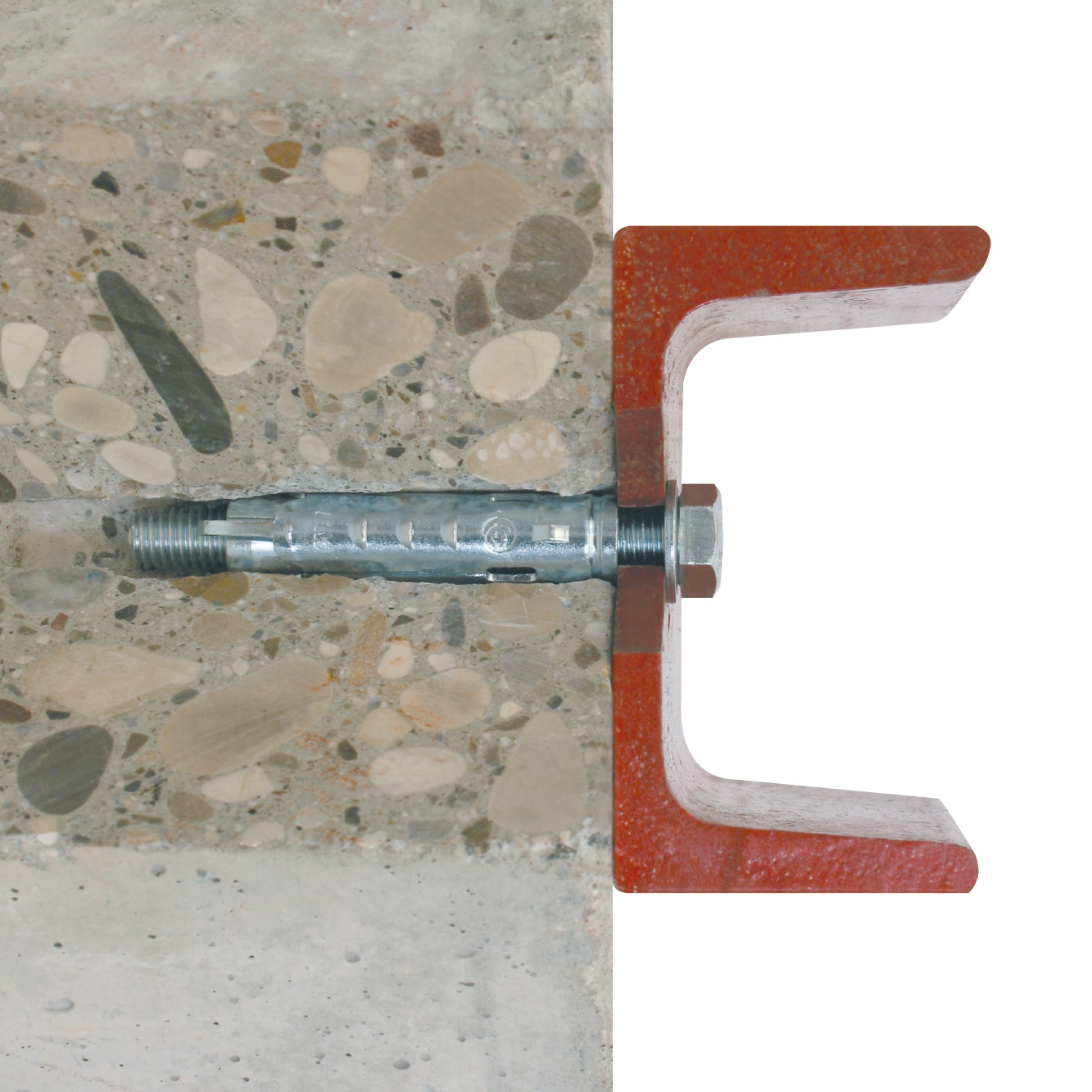

Toepassing

Applications

  • Safety barriers
  • Fencing
  • Railings

Suitable for

  • Multiple use for non-structural applications on cracked and non-cracked concrete

Technische gegevens

Material

  • Steel
  • White zinc plated

Benefits

  • Universal metallic anchor even for hollow base materials
  • Single shell body with exclusive cone containing system
  • Accessories for all types of fixing requirements
  • Fire resistance R120

Product Dimensions - Anchor Only

Afmetingen

Tabel "Product Dimensions - Anchor Only" kan niet worden weergegeven: geen referenties beschikbaar.

Product Dimensions - Hex Head Screw

Afmetingen

ReferentieMetallic fixings dimensionsMontagegegevens
Afmetingen[mm]ProductreferentieOverigMontagegegevensSpacing and edge distances
Plug[mm]Hex head screwThread length [Lv][mm]Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]Hole diameter [dₒ][mm]Min. setting depth [hₑf][mm]Hole diameter in fixture [df][mm]Verpakking[stk]Qty per outer boxMin. hole depth [h₁][mm]Nominal embedment depth [hₙₒₘ][mm]Installation torque[Nm]Min. support thickness[mm]
733010120500012x50M8x6060FM-MP3 evo A41012431050.0250705015100
733010150600015x60M10x8080FM-MP3 evo A42015501225.0125806030100
733010180800018x80M12x100100FM-MP3 evo A42018691420.01001008050140

Recommended loads / for single anchors / with no edge distances or spacings - ETA-09/0067

Tabel "Recommended loads / for single anchors / with no edge distances or spacings - ETA-09/0067" kan niet worden weergegeven: geen referenties beschikbaar.

Design capacities - single anchor - no edge distances

ReferentieMetallic fixings dimensionsMetallic fixings loads
ProductreferentieDesign capacity - Non-cracked concrete (3)[kN]
Bending moment MRd[Nm]Tension - NRd (1)Shear - VRd (1-2)[kN]
C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]
7330101205000FM-MP3 evo A4246.7---7.7---
7330101506000FM-MP3 evo A4488.9---9.7---
7330101808000FM-MP3 evo A48413.9---18.6---

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Recommended loads / for single anchors / with no edge distances or spacings - ETA-10/0074

Tabel "Recommended loads / for single anchors / with no edge distances or spacings - ETA-10/0074" kan niet worden weergegeven: geen referenties beschikbaar.

Installatie

Installation data

ReferentieMetallic fixings dimensionsMontagegegevens
ProductreferentieMontagegegevensSpacing and edge distances
Ø drilling hole[mm]Min. boorgatdiepte[mm]Ø drilling fixture[mm]Installation torque[Nm]Embedment depth[mm]Min. support thickness[mm]
7330101205000FM-MP3 evo A41270101543100
7330101506000FM-MP3 evo A41580123050100
7330101808000FM-MP3 evo A418100145069140

** Not covered by CE certification

Spacings and edge distances - ETA-09/0067

Tabel "Spacings and edge distances - ETA-09/0067" kan niet worden weergegeven: geen referenties beschikbaar.

Spacings and edge distances - ETA-10/0074

Tabel "Spacings and edge distances - ETA-10/0074" kan niet worden weergegeven: geen referenties beschikbaar.
