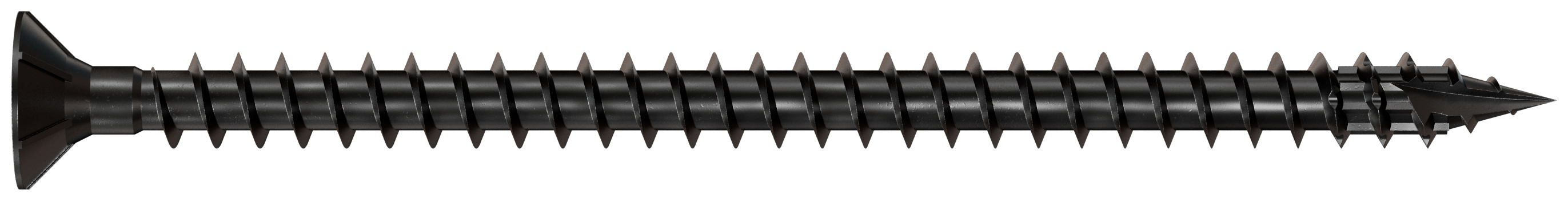

SDCF

Fully Threaded Countersunk Structural Wood Screw

SDCF is a full threaded screw with a countersunk head, suitable for hidden timber to timber assembly and steel to timber assembly. It can also be used for timber reinforcement.

Technisch gegevensblad

CE-Markering

ETA

Gebruiksklasse 2

Binner

Zwarte E-Coat

EPD

Product Details

Kenmerken

Material

Hardened Carbon Steel
Black E-Coat™

Toepassing

Advantages

Countersunk head: ideal for timber/timber or steel/timber assembly with head flush with surface
Underhead ribs: for a clear finish and no timber superficial split
Full asymetrical thread for a maximum withdrawal capacity, allows compressive load bearing
SawTooth^® point: fast start, easy driving, no need for pre-drilling
Torx driven: reduces the wear of the bit

Suitable for

Solid Timber, Glulam timber, CLT, Wood-based panels
Pre-drilled steel plate

When to use

Timber to timber assembly
Steel to timber assembly
Timber reinforcement (to transversile tension or compression)

Technische gegevens

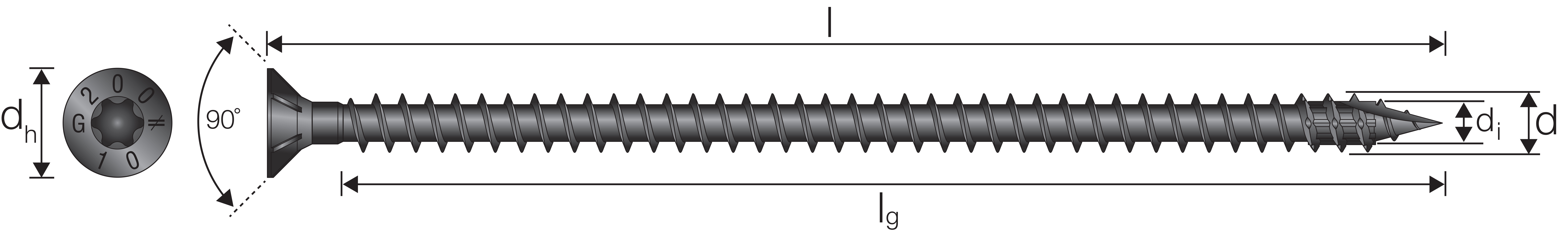

Product Dimensions


Referentie	Item code	DB nr.	NOBB nr.	Fastener dimensions [mm]						Box Quantity	Weight [kg]
Referentie	Item code	DB nr.	NOBB nr.	d	l	l_g	d_h	d₁	Driver Bit	Box Quantity	Weight [kg]
SDCF8X140	78424	2523217	60774103	8	140	130	15	5.2	T-40	50	0.035
SDCF8X160	78425	2523218	60774104	8	160	150	15	5.2	T-40	50	0.04
SDCF8X180	78426	2523219	60774105	8	180	170	15	5.2	T-40	50	0.045
SDCF8X200	78427	2523220	60774106	8	200	190	15	5.2	T-40	50	0.048
SDCF8X220	78428	2523221	60774107	8	220	210	15	5.2	T-40	50	0.049
SDCF8X240	78429	2523222	60774108	8	240	230	15	5.2	T-40	50	0.054
SDCF8X260	78430	2523223	60774109	8	260	250	15	5.2	T-40	50	0.061
SDCF8X300	78431	2523224	60774110	8	300	290	15	5.2	T-40	50	0.065
SDCF8X350	78432	2523225	60774111	8	350	340	15	5.2	T-40	50	0.066
SDCF10X200	78434	2523227	60774113	10	200	188	18.5	6.2	T-50	30	0.065
SDCF10X240	78435	2523228	60774114	10	240	228	18.5	6.2	T-50	30	0.082
SDCF10X280	78436	2523230	60774115	10	280	268	18.5	6.2	T-50	30	0.094
SDCF10X360	78437	2523231	60774116	10	360	348	18.5	6.2	T-50	25	0.116
SDCF10X400	78438	2523232	60774117	10	400	388	18.5	6.2	T-50	25	0.128
SDCF10X450	78439	2523233	60774118	10	450	426	18.5	6.2	T-50	25	0.143
SDCF12X240	78441	2523237	60774120	12	240	220	22.2	6.8	T-50	25	0.105
SDCF12X280	78442	2523238	60774121	12	280	260	22.2	6.8	T-50	25	0.12
SDCF12X350	78443	2523239	60774122	12	350	330	22.2	6.8	T-50	25	0.142
SDCF12X450	78444	2523241	60774123	12	450	425	22.2	6.8	T-50	25	0.181
SDCF12X600	78445	2523243	60774124	12	600	575	22.2	6.8	T-50	15	0.247

Product characteristic properties

Referentie	Product characteristic properties
Referentie	Characteristic Yield Moment – M_y,k [M_y.k] [Nm]	Characteristic withdrawal parameter - f_ax,k,90° [f_ax.k.90°] [N/mm²]	Characteristic head pull-through parameter - f_head,k [f_head.k] [N/mm²]	Characteristic tensile capacity - f_tens,k [f_tens.k] [kN]	Characteristic torsional strength - f_tor,k [f_tor.k] [Nm]
SDCF8X140	21.9	13.4	9.4	21.7	25
SDCF8X160	21.9	13.4	9.4	21.7	25
SDCF8X180	21.9	13.4	9.4	21.7	25
SDCF8X200	21.9	13.4	9.4	21.7	25
SDCF8X220	21.9	13.4	9.4	21.7	25
SDCF8X240	21.9	13.4	9.4	21.7	25
SDCF8X260	21.9	13.4	9.4	21.7	25
SDCF8X300	21.9	13.4	9.4	21.7	25
SDCF8X350	21.9	13.4	9.4	21.7	25
SDCF10X200	37.9	13	9.4	32.9	46
SDCF10X240	37.9	13	9.4	32.9	46
SDCF10X280	37.9	13	9.4	32.9	46
SDCF10X360	37.9	13	9.4	32.9	46
SDCF10X400	37.9	13	9.4	32.9	46
SDCF10X450	37.9	13	9.4	32.9	46
SDCF12X240	44.3	10.3	9.4	38.3	59
SDCF12X280	44.3	10.3	9.4	38.3	59
SDCF12X350	44.3	10.3	9.4	38.3	59
SDCF12X450	44.3	10.3	9.4	38.3	59
SDCF12X600	44.3	10.3	9.4	38.3	59

Installatie

Spacing and Edge distances - Shear loaded screws

Referentie	Minimum edge distances and spacing for shear loaded screws [mm]
	Angle between load and grain = 0°						Angle between load and grain = 90°
	a_1.0	a_2.0	a_3.t.0	a_3.c.0	a_4.t.0	a_4.c.0	a_1.90	a_2.90	a_3.t.90	a_3.c.90	a_4.t.90	a_4.c.90
SDCF8X140	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X160	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X180	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X200	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X220	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X240	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X260	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X300	96	40	120	80	40	40	40	40	80	80	80	40
SDCF8X350	96	40	120	80	40	40	40	40	80	80	80	40
SDCF10X200	120	50	150	100	50	50	50	50	100	100	100	50
SDCF10X240	120	50	150	100	50	50	50	50	100	100	100	50
SDCF10X280	120	50	150	100	50	50	50	50	100	100	100	50
SDCF10X360	120	50	150	100	50	50	50	50	100	100	100	50
SDCF10X400	120	50	150	100	50	50	50	50	100	100	100	50
SDCF10X450	120	50	150	100	50	50	50	50	100	100	100	50
SDCF12X240	144	60	180	120	60	60	60	60	120	120	120	60
SDCF12X280	144	60	180	120	60	60	60	60	120	120	120	60
SDCF12X350	144	60	180	120	60	60	60	60	120	120	120	60
SDCF12X450	144	60	180	120	60	60	60	60	120	120	120	60
SDCF12X600	144	60	180	120	60	60	60	60	120	120	120	60

a1 and a2 can be multiplied by 0.7 for steel/timber assembly.

Spacing and edge distances - Axially loaded screws

Referentie	Minimum edge distances and spacing for axially loaded screws [mm]
Referentie	a₁	a₂	a_1.cg	a_2.cg
SDCF8X140	80	24	64	24
SDCF8X160	80	24	64	24
SDCF8X180	80	24	64	24
SDCF8X200	80	24	64	24
SDCF8X220	80	24	64	24
SDCF8X240	80	24	64	24
SDCF8X260	80	24	64	24
SDCF8X300	80	24	64	24
SDCF8X350	80	24	64	24
SDCF10X200	100	30	80	30
SDCF10X240	100	30	80	30
SDCF10X280	100	30	80	30
SDCF10X360	100	30	80	30
SDCF10X400	100	30	80	30
SDCF10X450	100	30	80	30
SDCF12X240	120	36	96	36
SDCF12X280	120	36	96	36
SDCF12X350	120	36	96	36
SDCF12X450	120	36	96	36
SDCF12X600	120	36	96	36
