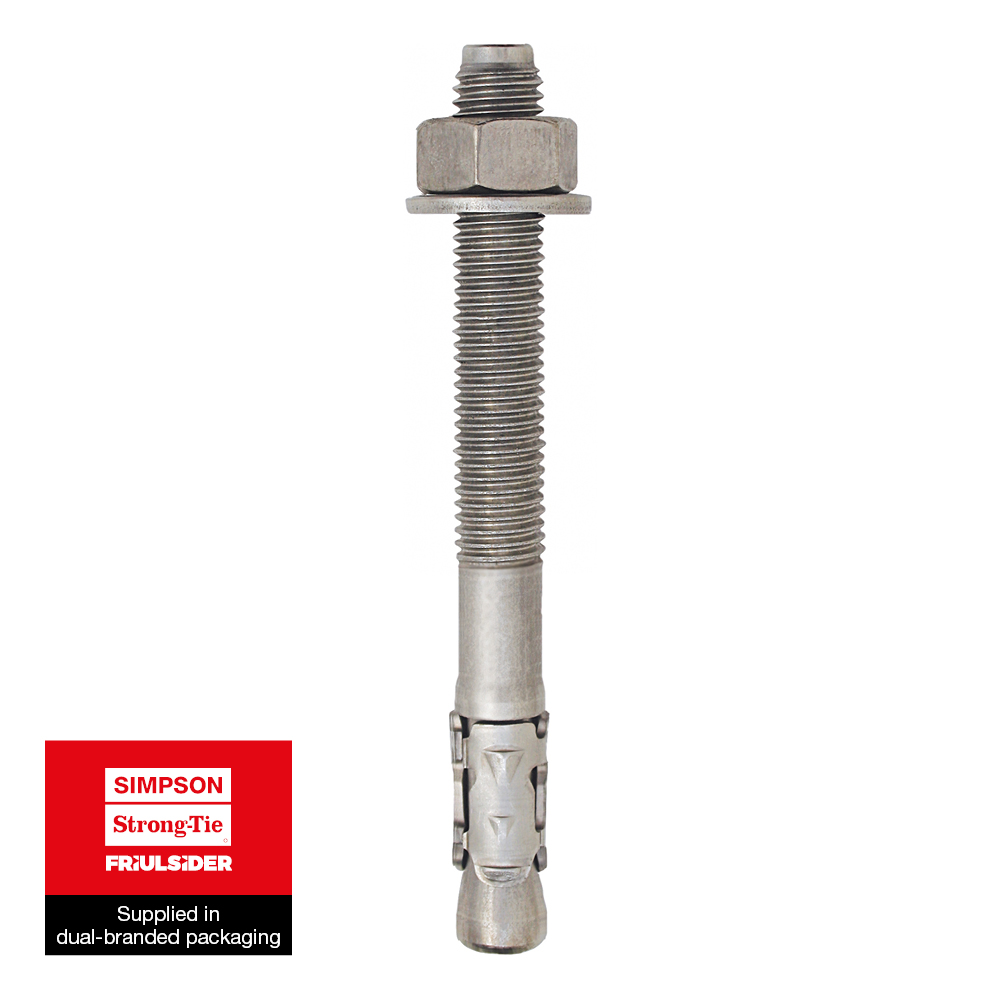

FM-753 CRACK A4

Doorsteekanker met seismische certificering - rsv A4

Doorsteekanker van roestvrij staal A4 voor middelzware belastingen in de maten M8 - M16 voor verankering in gescheurd en ongescheurd beton C20/25 - C50/60 t, ook voor gebruik in aardbevingsgebied prestatiecategorie C1/C2.

CE-Markering
CE-Markering
ETA
ETA
Nieuw
Nieuw
Sprinkler Systems
Sprinkler Systems
Brand R120
Brand R120
Seismic C1 C2
Seismic C1 C2
Roestvrij staal A4
Roestvrij staal A4
Fix Calc
Fix Calc

Product Details

Afbeeldingen

Kenmerken

Materiaal

  • Rvs A4

Voordelen

  • Weerstand tegen seismische en dynamische belastingen
  • Seismische categorie C1 en C2
  • Onmiddellijke uitzetting
  • Verdikking aan de 3 uitzettingssegmenten
  • 9 hechtingstanden voor een betere hechtkracht aan de boorgatwanden
  • Brandwerendheid R120

Toepassing

Applications

  • Structural fixings
  • Steel constructions
  • Seismic applications

Toepassingsgebieden

  • Gescheurd beton
  • Ongescheurd beton
  • Steen

Technische gegevens

Product dimensions

Afmetingen

ReferentieMetallic fixings dimensionsMontagegegevens
Afmetingen[mm]ProductreferentieOverigMontagegegevens
Dimensions[mm]Thread length [Lv][mm]Fixture thickness [tfᵢₓ,ₘₐₓ] with standard setting depth [hₑf,ₛₜD][mm]Fixture thickness [tfᵢₓ,ₘₐₓ] with reduced setting depth [hₑf,ᵣₑD][mm]Hole diameter in fixture [df][mm]Hole diameter [dₒ] x depth [h₁] in substrate[mm]Hole diameter [dₒ] x depth [h₁] in substrate with reduced setting depth [hₑf,ᵣₑD][mm]Min. setting depth [hₑf][mm]Verpakking[stk]Qty per outer boxGewicht[kg]Reduced setting depth [hₑf,ᵣₑD][mm]
7535000806800M8x6830FM-753 CRACK A441898x708x5648100.04000.0334
7535000807500M8x7530FM-753 CRACK A4102498x708x5648100.04000.03234
7535001009000M10x9040FM-753 CRACK A410301210x8010x606050.02000.05840
7535001211000M12x11065FM-753 CRACK A410301412x10012x807250.02000.152
7535001212000M12x12065FM-753 CRACK A420401412x10012x807250.02000.1152
7535001214500M12x14585FM-753 CRACK A445651412x10012x807225.01000.1352

Recommended loads / Non-cracked concrete / for single anchors / with no edge distances or spacings

ReferentieMetallic fixings dimensionsMetallic fixings loads
Afmetingen[mm]ProductreferentieRecommended loads - Non-cracked concrete
Dimensions[mm]Bending moment Mᵣₑc[Nm]Tension - Nᵣₑc[kN]Shear - Vᵣₑc[kN]
C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]
7535000806800M8x68FM-753 CRACK A410.54.85.96.87.47.87.87.87.8
7535000807500M8x75FM-753 CRACK A410.54.85.96.87.47.87.87.87.8
7535001009000M10x90FM-753 CRACK A421.57.69.310.711.813.413.413.413.4
7535001211000M12x110FM-753 CRACK A437.410.512.814.816.317.317.317.317.3
7535001212000M12x120FM-753 CRACK A437.410.512.814.816.317.317.317.317.3
7535001214500M12x145FM-753 CRACK A437.410.512.814.816.317.317.317.317.3

1) In case of interaction of tension and shear loads (lever arm) as well as in case of anchor groups and/or edge influence, a design according to EN 1992-4 (seismic actions - Annex C / fire action
- Annex D) shall be carried out taking into account the entire European Technical Assessment ETA-10/0293.
2) The load data take into account the partial safety factors of the resistances given in the European Technical Assessment (ETA) and a partial safety factor of the actions
of γF = 1.4. The values given assume unreinforced or normally reinforced concrete with a spacing of the reinforcing bars s ≥ 15 cm or s ≥ 10 cm at a
rebar diameter ds ≤ 10 mm is assumed.

Design capacities - single anchor - no edge distances - Uncracked concrete

ReferentieMetallic fixings dimensionsMetallic fixings loads
Afmetingen[mm]ProductreferentieDesign capacity - Non-cracked concrete (3)[kN]
Dimensions[mm]Bending moment MRd[Nm]Tension - NRd (1)Shear - VRd (1-2)[kN]
C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]
7535000806800M8x68FM-753 CRACK A4-6.7---10.9---
7535000807500M8x75FM-753 CRACK A4-6.7---10.9---
7535001009000M10x90FM-753 CRACK A4-10.7---18.8---
7535001211000M12x110FM-753 CRACK A4-14.7---24.2---
7535001212000M12x120FM-753 CRACK A4-14.7---24.2---
7535001214500M12x145FM-753 CRACK A4-14.7---24.2---

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Recommended loads - Cracked concrete - single anchor - no edge distances

ReferentieMetallic fixings dimensionsMetallic fixings loads
Afmetingen[mm]ProductreferentieRecommended loads - Cracked concrete
Dimensions[mm]Bending moment Mᵣₑc[Nm]Tension - NᵣₑcShear - Vᵣₑc
C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]
7535000806800M8x68FM-753 CRACK A410.53.13.84.44.85.45.45.45.4
7535000807500M8x75FM-753 CRACK A410.53.13.84.44.85.45.45.45.4
7535001009000M10x90FM-753 CRACK A421.54.85.96.87.413.413.413.413.4
7535001211000M12x110FM-753 CRACK A437.46.27.68.79.617.317.317.317.3
7535001212000M12x120FM-753 CRACK A437.46.27.68.79.617.317.317.317.3
7535001214500M12x145FM-753 CRACK A437.46.27.68.79.617.317.317.317.3

1) In case of interaction of tension and shear loads (lever arm) as well as in case of anchor groups and/or edge influence, a design according to EN 1992-4 (seismic actions - Annex C / fire action
- Annex D) shall be carried out taking into account the entire European Technical Assessment ETA-10/0293.
2) The load data take into account the partial safety factors of the resistances given in the European Technical Assessment (ETA) and a partial safety factor of the actions
of γF = 1.4. The values given assume unreinforced or normally reinforced concrete with a spacing of the reinforcing bars s ≥ 15 cm or s ≥ 10 cm at a
rebar diameter ds ≤ 10 mm is assumed.

Design capacities - single anchor - no edge distances - Cracked concrete

ReferentieMetallic fixings dimensionsMetallic fixings loads
Afmetingen[mm]ProductreferentieDesign capacity - Cracked concrete
Dimensions[mm]Bending moment MRd[Nm]Tension - NRd (1)Shear - VRd (1-2)
C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]C20/25[kN]C30/37[kN]C40/50[kN]C50/60[kN]
7535000806800M8x68FM-753 CRACK A4-4.3---7.6---
7535000807500M8x75FM-753 CRACK A4-4.3---7.6---
7535001009000M10x90FM-753 CRACK A4-6.7---18.8---
7535001211000M12x110FM-753 CRACK A4-8.7---24.2---
7535001212000M12x120FM-753 CRACK A4-8.7---24.2---
7535001214500M12x145FM-753 CRACK A4-8.7---24.2---

1. The design loads loads have been calculated using the partial safety factors for resistances stated in ETA-approval(s). The loading figures are valid for unreinforced concrete and reinforced concrete with a rebar spacing s ≥ 15 cm (any diameter) or with a rebar spacing s ≥ 10 cm, if the rebar diameter is 10mm or smaller.
2. The figures for shear are based on a single anchor without influence of concrete edges. For anchorages close to edges (c ≤ max [10 hef; 60d]) the concrete edge failure shall be checked per ETAG 001, Annex C, design method A.
3. Concrete is considered non-cracked when the tensile stress within the concrete is\sigmaL +\sigmaR ≤ 0. In the absence of detailed verification\sigmaR = 3 N/mm² can be assumed (\sigmaL equals the tensile stress within the concrete induced by external loads, anchors loads included).

Installatie

Installatie

Installation data

ReferentieMetallic fixings dimensionsMontagegegevens
Afmetingen[mm]ProductreferentieMontagegegevensSpacing and edge distances
Dimensions[mm]Wrench size[mm]Ø drilling hole[mm]Min. boorgatdiepte[mm]Ø drilling fixture[mm]Installation torque[Nm]Embedment depth[mm]Min. support thickness[mm]
7535000806800M8x6813FM-753 CRACK A487092048100
7535000807500M8x7513FM-753 CRACK A487092048100
7535001009000M10x9017FM-753 CRACK A41080124060120
7535001211000M12x11019FM-753 CRACK A412100146072150
7535001212000M12x12019FM-753 CRACK A412100146072150
7535001214500M12x14519FM-753 CRACK A412100146072150

Spacings and edge distances

ReferentieMetallic fixings dimensionsMontagegegevens
Afmetingen[mm]ProductreferentieSpacing and edge distances
Dimensions[mm]Min. hartafstand[mm]Sₘᵢₙ[mm]Characteristic edge distance[mm]Characteristic spacing(5) - Scr,N[mm]
7535000806800M8x68FM-753 CRACK A4505072144
7535000807500M8x75FM-753 CRACK A4505072144
7535001009000M10x90FM-753 CRACK A4505590180
7535001211000M12x110FM-753 CRACK A46060108216
7535001212000M12x120FM-753 CRACK A46060108216
7535001214500M12x145FM-753 CRACK A46060108216
